High-Speed Temperature Measurement of Bottle Caps during Packaging
Achieving Uniform Heating in Fast-Paced Bottle Cap Sealing Line
Challenge
Maintaining precise temperature control on small, fast-moving bottle caps is difficult due to their speed and size, making accurate non-contact temperature measurement essential to avoid poor seals, waste, and delays in bottling lines.
Solution
High-speed thermal monitoring enables real-time control of cap heating, ensuring uniform sealing across all bottle caps despite rapid movement and varying environmental conditions on the production line.
Benefits
- Ensures consistent and reliable sealing quality at high production speeds
- Minimizes product waste by preventing improperly sealed bottles
- Supports real-time process adjustments for optimized thermal control
- Maintains accuracy even in harsh industrial environments
- Integrates easily into existing bottling systems without production disruption
Thermal Precision in Motion: Achieving Perfect Seals in High-Speed Bottling
In the fast-paced food and packaging industries, maintaining consistent quality and ensuring proper sealing of products is paramount. A critical aspect of this process is the sealing of bottle caps in bottling lines, which operate at speeds of up to 5000 caps per minute. This high-speed process requires precise temperature control to activate adhesive coatings effectively. Uniform heating is essential to ensure that the seal is applied evenly across the entire surface of the crown cork, ensuring proper sealing of the bottles later in the filling lines.
The challenge lies in achieving accurate temperature measurements on the small surface areas of these fast-moving bottle caps. Traditional temperature measurement methods often fall short due to slower response times or the inability to measure accurately on small spots. This can lead to uneven heating, resulting in poor seals, product wastage, and potential production delays.
Additionally, the high-speed nature of these processes demands temperature measurement solutions that are incredibly fast, reliable, and capable of operating under various environmental conditions without losing accuracy. The industry needs a solution that not only meets these speed and accuracy requirements but also integrates seamlessly into existing production lines, providing real-time data for immediate adjustments.
High-Speed Thermal Measurement Solutions: Optris CTlaser 4M for Food Packaging and Beyond

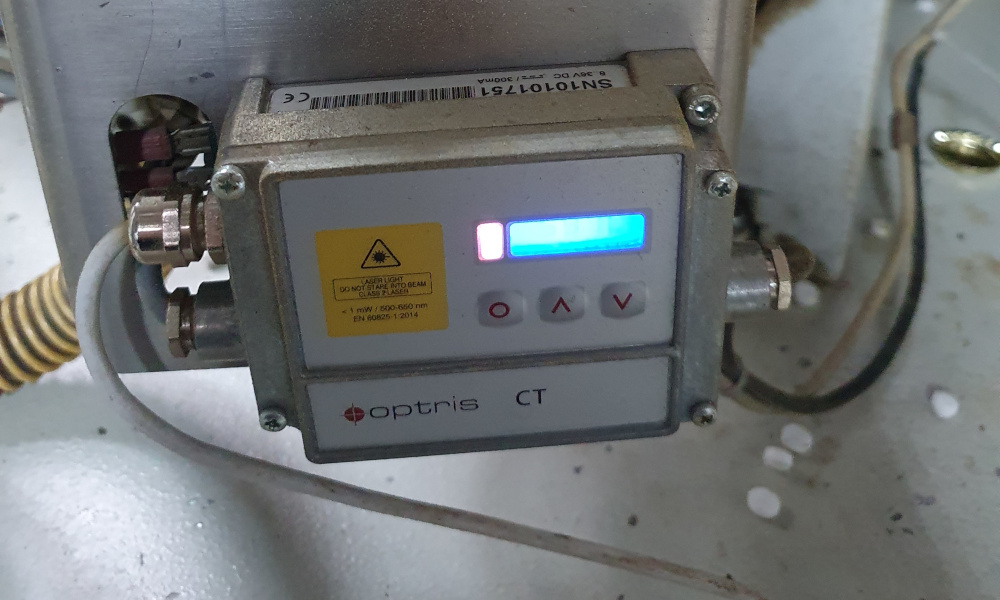

To address the challenges of fast thermal measurements, Optris has developed the specialized high-speed pyrometer, CTlaser 4M. This device is designed for ultra-fast temperature measurements, ensuring each crown cork is heated uniformly and correctly within the stringent timeframes required by modern manufacturing processes.
The Optris CTlaser 4M is a cutting-edge pyrometer specifically designed for high-speed, low-temperature measurement applications in industries such as food packaging and traffic safety. Its exceptionally fast response time, capable of measuring temperatures within just 90 microseconds (μs), is crucial for applications where products move rapidly through production lines, such as the high-speed sealing of crown caps.

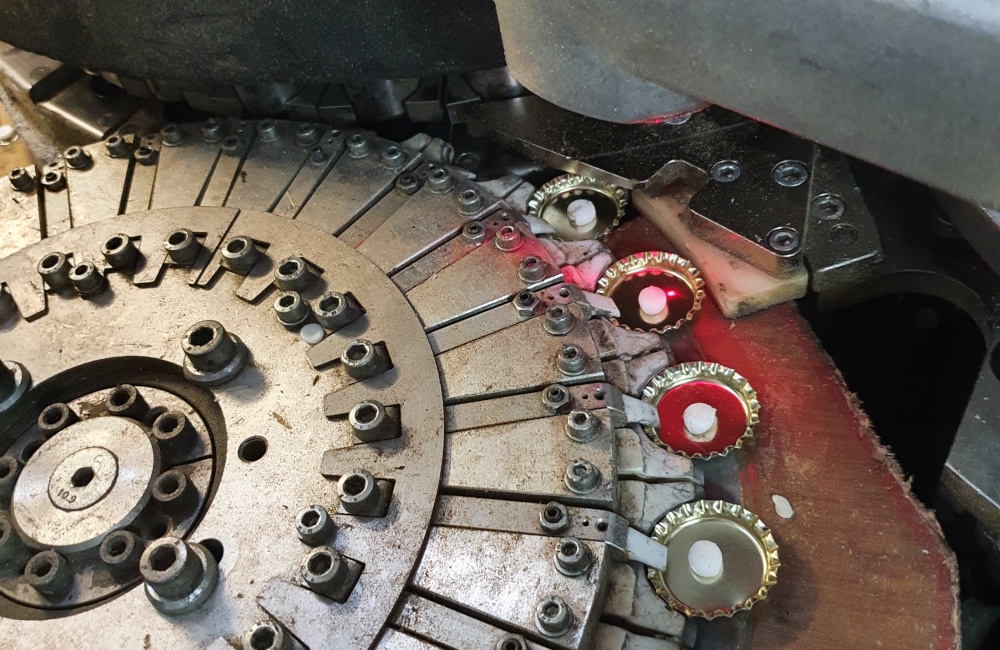

One key feature of the CTlaser 4M is its ability to measure temperature on very small spots accurately. This precision is achieved through its double laser sighting system, which precisely marks the measurement field. This feature is particularly important in ensuring the uniform heating of crown corks, where even slight deviations in temperature can lead to improper sealing and product quality issues.
Additionally, the CTlaser 4M is built to withstand the demanding environments of high-speed manufacturing. It operates efficiently across a wide temperature range from 0 °C to 500 °C (32 °F to 932 °F) and can handle ambient temperatures up to 70 °C (158 °F). The device’s robust construction, with an IP 65 (NEMA-4) protection class, ensures it remains reliable and accurate even in harsh conditions.
Integrating the CTlaser 4M into production lines is straightforward, thanks to its compact design and versatile mounting options. This allows manufacturers to incorporate the pyrometer into existing systems easily without significant modifications. The real-time data provided by the CTlaser 4M enables immediate adjustments, ensuring optimal temperature control and enhancing overall production efficiency.
The CTlaser 4M is ideal not only for the food packaging industry but also for other high-speed applications such as PET preform temperature monitoring and railroad safety, where detecting overheating is critical. Its versatility and reliability make it a valuable tool for any industry requiring precise, high-speed temperature measurements.
Ultra-Fast and Accurate: How the Optris CTlaser 4M Revolutionizes Infrared Temperature Measurement
Implementing the Optris CTlaser 4M in high-speed manufacturing processes offers numerous benefits that enhance production efficiency and product quality. One of the primary advantages is the pyrometer’s ultra-fast response time of 90 μs, enabling real-time temperature monitoring. This speed is crucial for processes like bottle cap sealing, where products move rapidly, and precise temperature control is essential for proper adhesive activation and sealing.
The precision of the CTlaser 4M is another significant benefit. Its ability to accurately measure small spots ensures uniform heating of every crown cork, reducing the risk of improper seals that can lead to product wastage and quality issues. The double laser sighting system provides clear and precise targeting, guaranteeing accurate and reliable temperature measurements.
Durability and reliability are also key features of the CTlaser 4M. Designed to operate in harsh manufacturing environments, it maintains its accuracy and performance even under extreme conditions. With an IP 65 protection rating, the device is resistant to dust and water ingress, ensuring long-term reliability and reducing maintenance costs.
The CTlaser 4M’s versatility extends its benefits beyond the food packaging industry. It is equally effective in other high-speed applications, such as monitoring the temperature of PET preforms and detecting overheating in railroad systems. This versatility makes it a valuable addition to any manufacturing process requiring precise temperature measurements.
Moreover, the ease of integration is a notable advantage. The compact design and flexible mounting options allow the CTlaser 4M to be seamlessly incorporated into existing production lines. This minimizes downtime during installation and ensures that manufacturers can quickly benefit from improved temperature control.
Overall, the Optris CTlaser 4M significantly enhances operational efficiency, product quality, and reliability in high-speed manufacturing processes. Its ultra-fast response time, precision, durability, and ease of integration make it an indispensable tool for industries demanding accurate and reliable temperature measurement solutions.
