Infrared Sensor

An infrared sensor (IR sensor) is a radiation-sensitive optoelectronic component with spectral sensitivity in the infrared light. Infrared sensors are used in various applications, including thermal imaging, non-contact temperature measurement, motion detection, and environmental monitoring. They detect infrared energy emitted or reflected by objects and convert it into an electrical signal for analysis.

In the context of temperature sensing, they are also known as infrared thermometers or pyrometers. Infrared thermometers detect infrared radiation emitted by an object. Any object with a temperature above absolute zero emits infrared radiation, which is invisible to the human eye but detectable by specialized sensors.

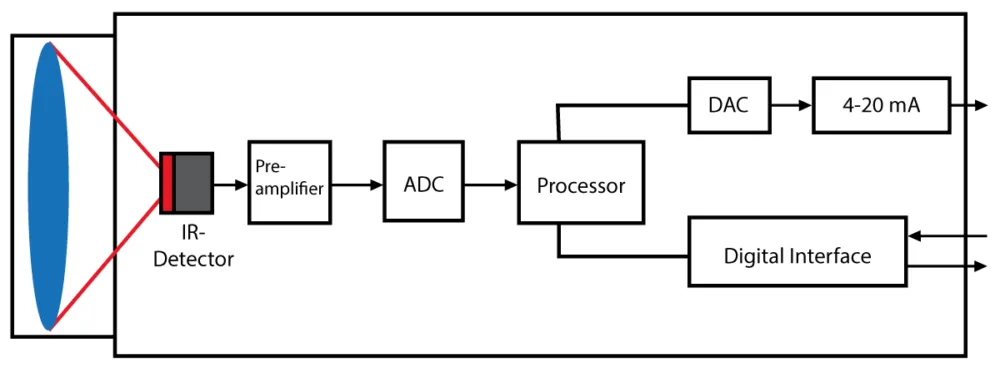

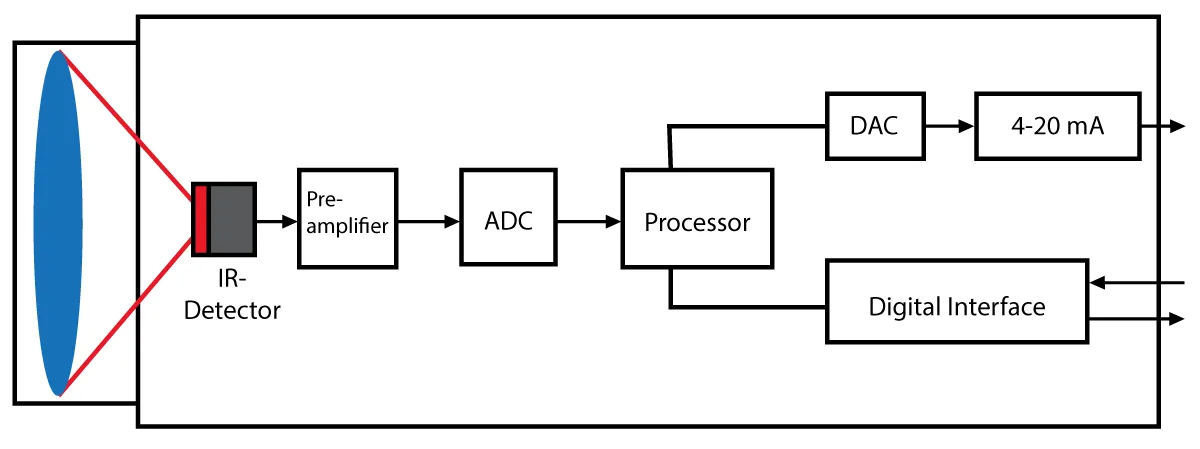

Pyrometers consist of three main components: an optical system, a detector, and electronics. The optical system captures the energy emitted by the object and focuses it on the detector, which is highly sensitive to the infrared bandwidth. Sensor detectors may be based on different technologies, such as thermopiles, pyroelectric detectors, or infrared photodetectors, depending on the infrared wavelength spectrum. The electrical signal of the detector depends on the temperature of the focused object, its ambient temperature, and its sensitivity. The weak electrical signal is amplified and digitized by the pyrometer’s electronics, then continuously corrected with calibration data. Finally, the temperature values and further signal processing for analog or digital outputs, based on the interfaces, are provided.

Infrared pyrometers offer different spectral ranges, measurement ranges, speeds, sensitivities, and resolutions at different budget levels, and various performance class alignment options can help in selecting a suitable model for every application.

The primary advantage of infrared thermometers is their ability to measure temperature from a distance, which is essential in environments where direct contact is impractical or dangerous. They provide fast, accurate readings and can monitor moving objects or surfaces without interference. However, their accuracy can be affected by factors such as emissivity variations, reflections, and environmental conditions. Proper calibration and understanding of the material properties are necessary to obtain reliable measurements.
