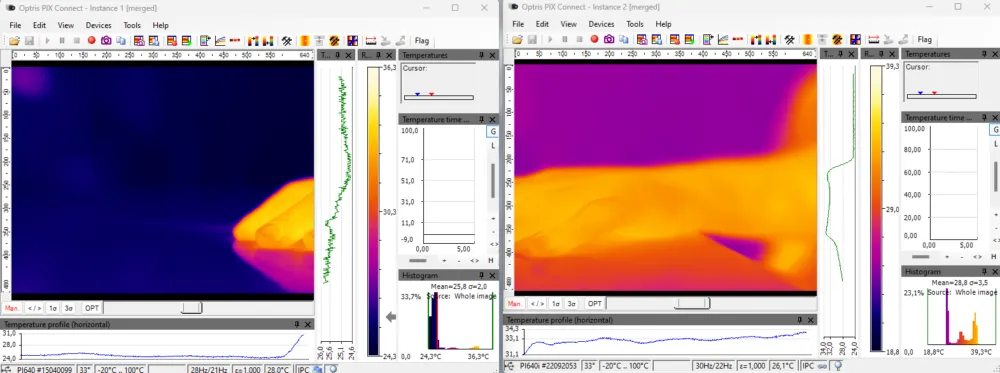

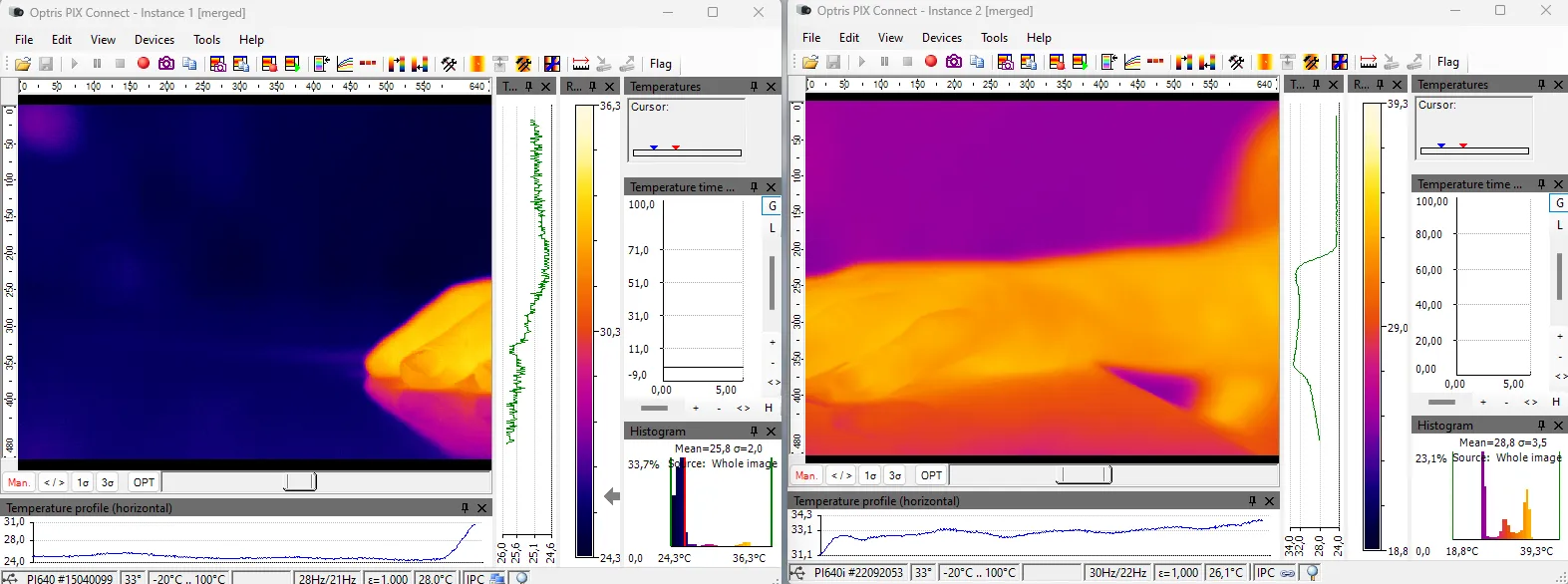

Thermal Image Merging

Image processing often requires merging infrared images to create a larger field of view, which involves combining multiple overlapping thermal images into a single panoramic image. This technique is essential in applications that require a broad perspective, such as industrial inspections, environmental monitoring, and building diagnostics.

The process begins with capturing several overlapping infrared images of the area of interest. Each image is taken from slightly different positions to ensure adequate overlap between adjacent images. This overlap is crucial for the image stitching software to accurately align and merge the images. Advanced image processing algorithms then come into play, aligning these images by identifying unique points or patterns in the overlapping regions and matching them across images.

Once the images are aligned, the software blends them seamlessly to create a cohesive panorama. This involves adjusting the intensity levels and correcting any temperature variations between the images to ensure uniformity. The result is a composite thermal image that offers a much larger field of view than any individual image, providing a comprehensive thermal map of the area.
