Calibration Source BR 400

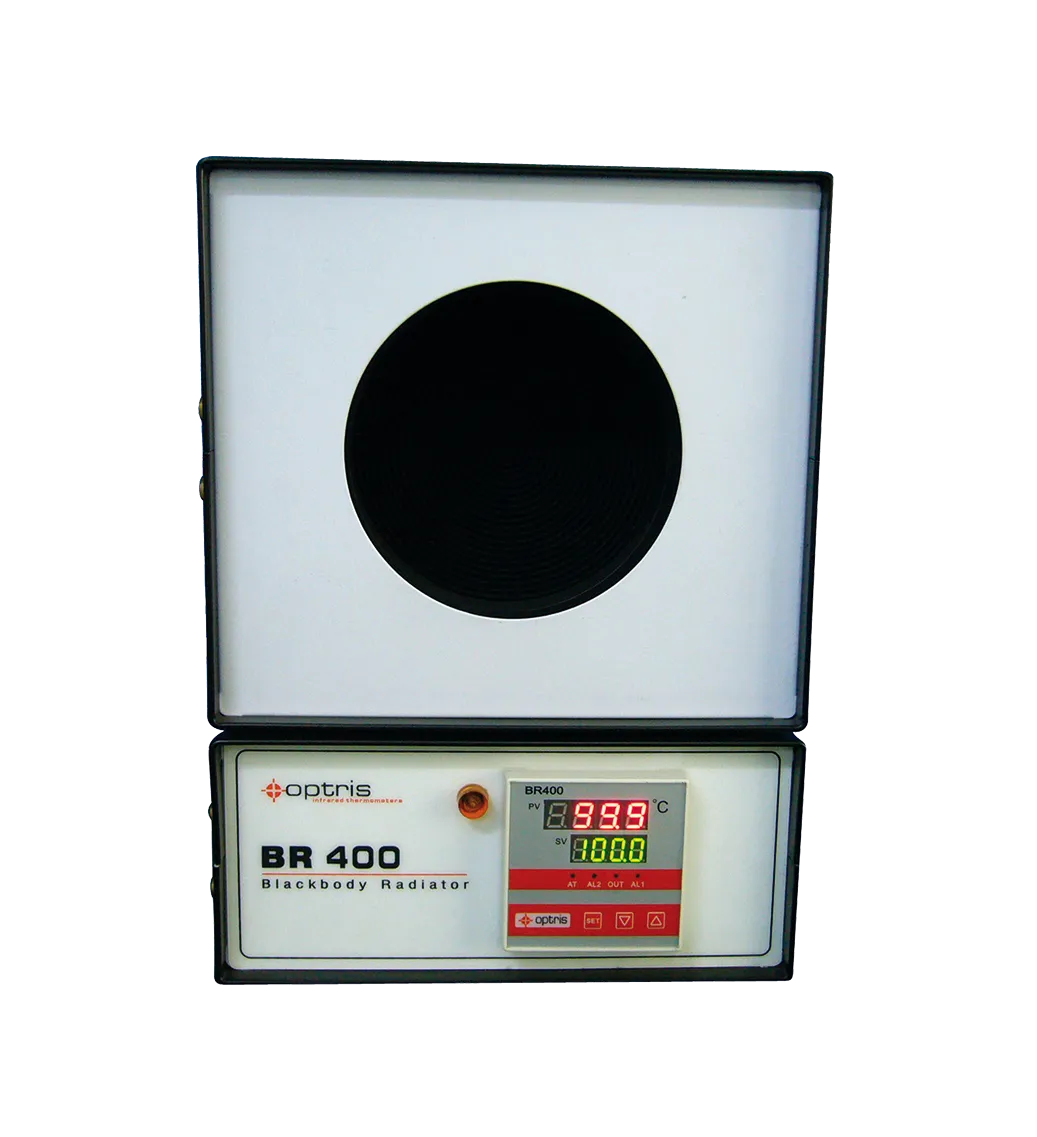

The Optris BR400 is an infrared reference radiation source used for calibration, generating temperatures up to 400 °C (752 °F) with high stability. The infrared black body ensures precise radiation temperature measurement for accurate infrared sensor calibration. Its compact, rugged design offers excellent homogeneity, precision, and long-term stability, making it ideal for calibrating and testing infrared sensors.

General Specifications

Operating temperature: 0 °C to 50 °C (32 °F to 122 F)

• Weight: 4.5 kg (158.73 oz)
• Dimensions (H x W x D): 325 mm x 230 mm x 230 mm (12.8 in x 9.1 in x 9.1 in)

Calibration Specifications

• • Temperature range (at 23 °C / 73.4 °F): 5 °C to 400 °C (41 °F to 752 °F)
  • Temperature resolution: 0.1 °C (32.18 °F)
  • Emissivity: 0.97 ±0.02 (for 8 –14 μm)
  • Aperture: 128 mm (5.04 in)
  • Accuracy:

±0.5 °C at 50 °C (±32.9 °F at 122 °F)
±1.0 °C at 100 °C (±33.8 °F at 212 °F)
±1.3 °C at 250 °C (±34.34 °F at 482 °F)
±2.0 °C at 400 °C (±35.6 °F at 752 °F)

• • Warm-up time:

15 Min. (from 25 °C to 100 °C) / (from 77 °F to 212 °F)
40 Min. (from 25 °C to 400 °C) / (from 77 °F to 752 °F)

• • Cool-down time:

60 Min. (from 100 °C to 50 °C) / (from 212 °F to 122 °F)
90 Min. (from 400 °C to 50 °C) / (from 752 °F to 122 °F)

Electrical Specifications

• Temperature sensor: Pt100
• Controller: PID
• Power supply: 230V/ AC (±10 %) (optional: 110V/ AC model)
• Power consumption: Max. 1000 W

What should be the distance between the pyrometer and the calibration source?

Each infrared sensor is calibrated at a specific distance, depending on the device and its optics. Please, contact Optris for the correct calibration geometry.

How do I calibrate an infrared sensor?

The calibration process typically involves adjusting the sensor’s settings to match a known temperature, usually provided by a calibration source. This ensures the sensor’s readings are accurate. For specific instructions, please consult the device’s manual or contact Optris. A reference pyrometer is most likely required.

• Calibration source
• Power supply cable
• Calibration certificate
