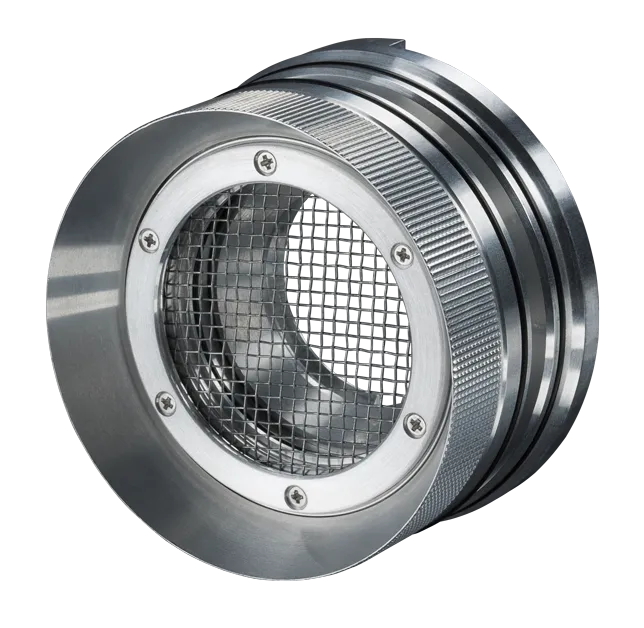

Cooling Jacket Advanced Lens Protective Grid

The protective grid for the Cooling Jacket Advanced is a protective accessory designed to safeguard the infrared sensor’s optics. This grid prevents debris and other larger particles from smashing the infrared sensor lens, thereby ensuring the continuous and efficient operation of the measurement equipment. Made from durable materials, the protective grid is built to withstand harsh impact scenarios. It is easy to install and remove, allowing for convenient maintenance, cleaning, and replacement of the mesh. This accessory is particularly valuable in settings with high levels of airborne particulates, providing an extra layer of defense against contamination and mechanical damage. The lens protective grid will be delivered and pre-assembled with the focusing unit.

• Compatible with the Cooling Jacket Advanced
• Protects lens from damages
• Mesh block debris from smashing into optics
• Easy to replace mesh

General Specification

Operating temperature: 0 °C to 60 °C (32 °F to 140 °F) (up to 315 °C / 599 °F with water cooling accessory)
Storage temperature: 0 °C to 60 °C (32 °F to 140 °F)
Material: Stainless Steel
Mesh width: 3.15 mm or 2.0 mm (.12 in or .08 in)
Weight: 90 g (3.17 oz)
Size: OD: 48 mm (1.89 in)

Does the grid influence the measurement?

No, as the grid is not in the focal point of the infrared sensor. Nevertheless, adjustment of the transmission for the measurement might be required.

Can I retrofit the protective grid to a Cooling Jacket?

No, the protective grids are only sold pre-assembled.

Does the air purge work when the grid is mounted with the focussing Unit?

Yes, the air purge works independently of the protective grid.

• 1x focus unit with protective grid for Cooling jacket advanced mounting screws
