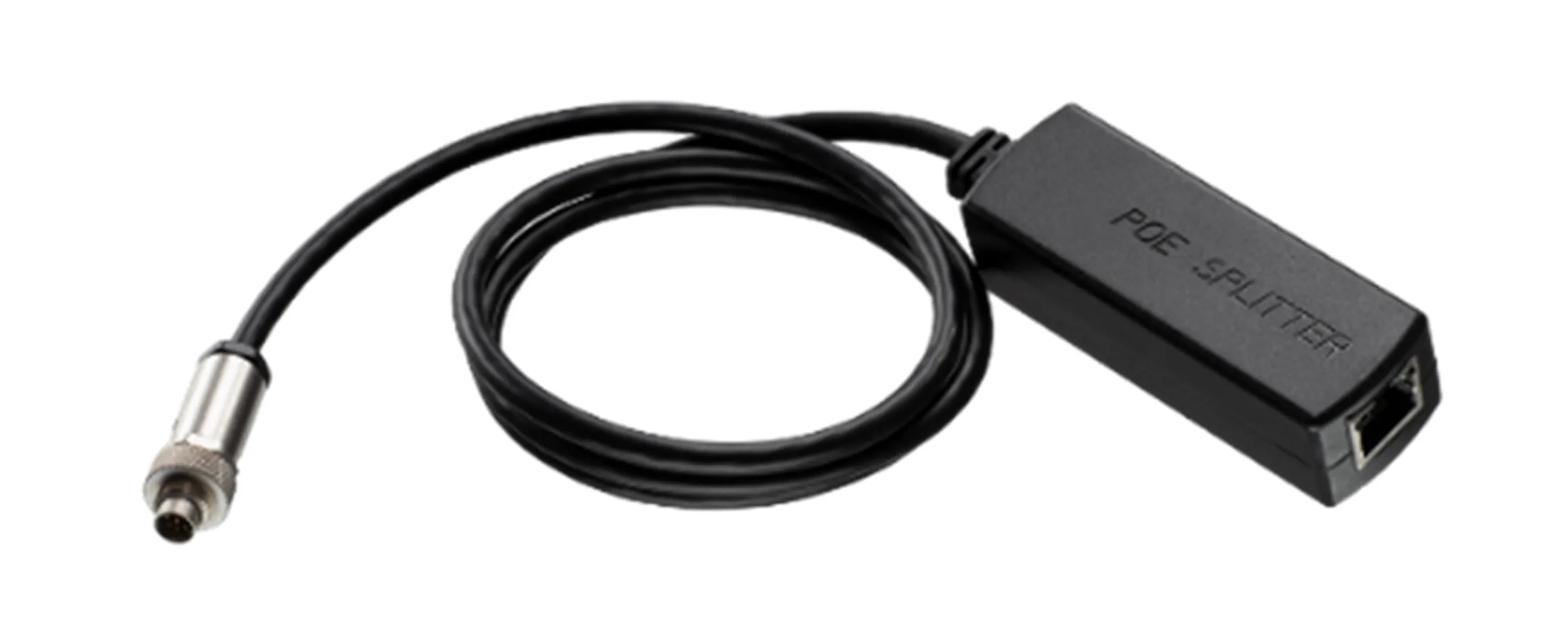

Ethernet Cable for Xi series
The Ethernet cable is essential for long-distance communication to the infrared camera.
- Ethernet cable for Xi series infrared cameras
- Optionally supports Power over Ethernet
- Compatible with Xi 80, Xi 410 LT, Xi 410 MT, Xi 1M
- Available lengths: 1 m, 5 m, 10 m, 20 m (not for PoE)
- High-temperature version up to 250 C
From $90.00
excl. sales taxes, custom tariffs and shipping
Product Description
The Ethernet cable is essential for long-distance communication to the infrared camera. It optionally supports Power over Ethernet with an electronics box, which offers simultaneous data and power transmission for Xi series cameras. Ethernet supports high-speed communication and reliable power delivery, reducing the need for separate cables. An Ethernet connection with an Xi infrared camera can bridge up to 20m. Special high-temperature versions up to 250 C are available.
- Ethernet cable for Xi series infrared cameras
- Optionally supports Power over Ethernet
- Compatible with Xi 80, Xi 410 LT, Xi 410 MT, Xi 1M
- Available lengths: 1 m, 5 m, 10 m, 20 m (not for PoE)
- High-temperature version up to 250 C
Specification
General Specifications
Environmental rating: IP65 (Nema-4)
Operating temperature: 0 C … 85 C (High temperature version up to 250 C)
Relative humidity: 10 – 95 %, non-condensing
Jacket Material: PVC (Polyvinyl Chloride)
Color: black
Interface Specifications
Cable Type: Fast Ethernet
Connector 1: male RJ45 or female Ethernet RJ45 jack in electronics box
Connector 2: Optris 8-pin cable plug
FAQs
Which Xi series infrared cameras are compatible with these cables?
These USB cables are compatible with Xi 80, Xi 410 LT, Xi 410 MT, and Xi 1M infrared cameras.
Will this cable fit with the PI series or the Xi400 and Xi 640?
It’s important to note that the PI series and the Xi 400 and Xi 640 models of infrared cameras are not compatible with these cables due to their different pinouts.
What connectors do the cables have?
The cables are equipped with an 8-pin plug, specifically designed for the infrared camera connection, and a male RJ45 connector. The manual provides a detailed cable pinout for your reference.
Can the cable withstand high temperatures?
Yes, a high-temperature version of the USB cable can withstand temperatures up to 250 C.
Can I use these cables for applications other than infrared cameras?
These cables are specifically designed for Optris Xi series infrared cameras and may not be suitable for other applications.
Scope of Supply
- 1x Ethernet cable with optional PoE
