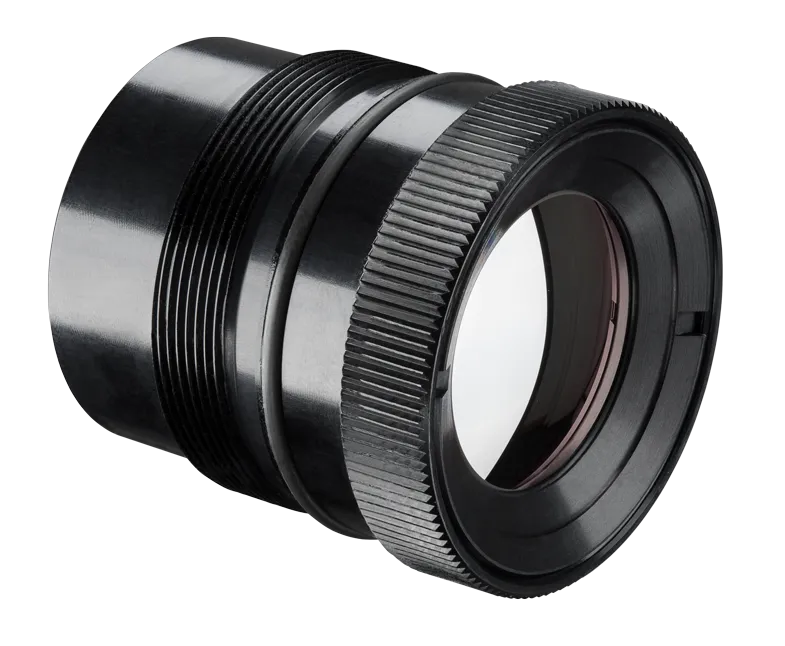

Exchangeable lens for PI400i /450i and PI450i G7 (ACPI4XXIxxx)

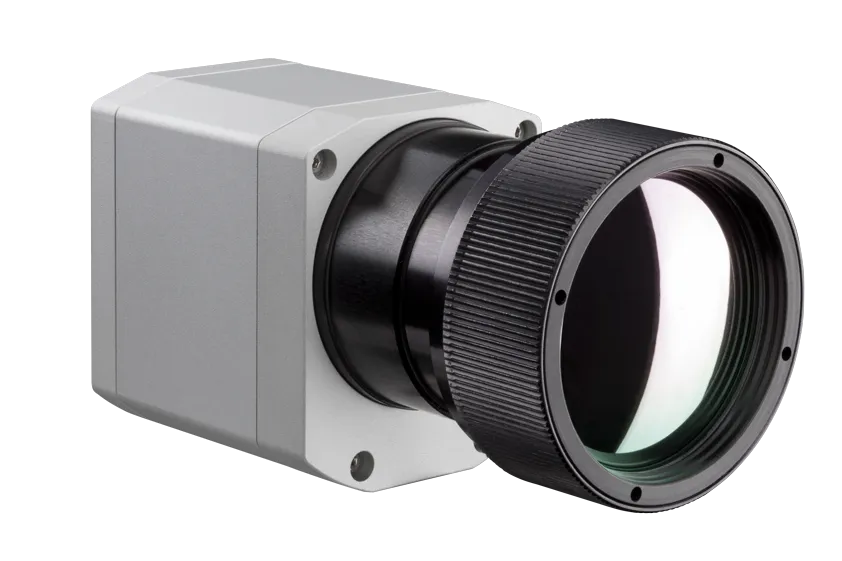

The PI400i /450i and PI450i G7 are infrared cameras for researchers and process engineers with a wide temperature range from -20 C to 900 C (extendable to 1500 C). One of its key features of the PI series is the range of exchangeable lens options available, which allows for precise customization based on specific measurement requirements. The PI series offers excellent optics quality due to the small Minimum Field of View (MFOV), ensuring high precision and clarity in temperature measurements.
The IR camera can be equipped with lenses, ranging from 18 to 80 field of view. Each optic is calibrated with the IR camera up to 1500 C.

• Lens options ranging from 18 to 80 field of view
• Superior optical design allows small MFOV and High Distance-to-Spot Ratios
• Calibration included

Should I ship in the PI400i /450i or PI450i G7 if a new replacement optic is ordered?

Yes, the IR camera must be shipped as it is calibrated with the lens. The calibration files need to be updated.

Can I order multiple lenses for the PI400i /450i or PI450i G7?

By default, the camera can be equipped with various types of lenses. Each lens will be calibrated with the PI400i /450i or PI450i G7 IR camera.

What must I do when I exchange the lens on the same IR camera?

To select the appropriate optics based on the camera configuration, navigate to the Tools menu, then to Configuration, and finally to Device. If multiple Addition lenses are included with the camera order, use this menu to choose the currently used optics.

• PI400i /450i or PI450i G7 lens
