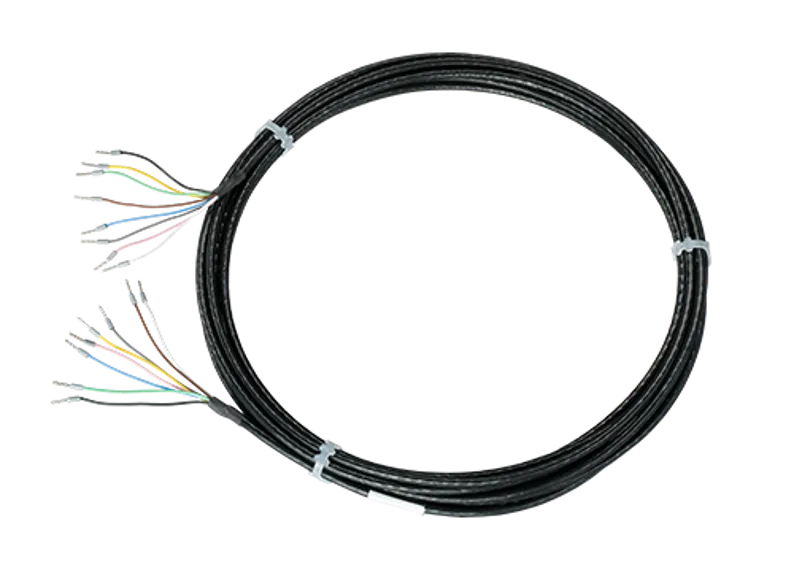

High temperature 7-pin I/O Cable for Cooling Jackets
The high-temperature 7-pin cable, with open ends on both sides, is designed for industrial PIF outputs and inputs.
- High-temperature I/O cable for process interface inside Cooling Jackets
- Excellent resistance to chemicals and solvent resistance
- Maintains low-temperature flexibility
- Excellent electrical insulation
- High-temperature version up to 250 °C (482 °F)
- Up to 20 m (65.62 ft)
From $110.00
excl. sales taxes, custom tariffs and shipping
Product Description
The high-temperature 7-pin cable, featuring open ends on both sides, is designed for industrial PIF outputs and inputs. It offers excellent resistance to chemicals and solvents, ensuring durability in harsh environments. With outstanding temperature resistance and low-temperature flexibility, this cable maintains performance under extreme conditions. Additionally, it provides excellent electrical insulation, making it a reliable choice for industrial applications. There are two versions available: one with operating temperatures up to 180 °C (356 °F) and another up to 250 °C (482 °F). Standard cable lengths are available in 5 m, 10 m, and 20 m (16.4 ft, 32.81 ft, and 65.62 ft).
- High-temperature I/O cable for process interface inside Cooling Jackets
- Excellent resistance to chemicals and solvent resistance
- Maintains low-temperature flexibility
- Excellent electrical insulation
- High-temperature version up to 250 °C (482 °F)
- Up to 20 m (65.62 ft)
Specification
General Specification
Operating temperature: 180 °C or up to 250 °C (356 °F or up to 482 °F)
Storage temperature: 0 °C to 60°C (32 °F to 140 °F)
Color: White
Material: PFA or FEP, 6YM1 according to VDE 0207 Part 6 (250 °C / 482 °F)
Outer diameter: 3,75 mm or 4,3 mm (.15 in or .17 in) (250 °C / 482 °F)
Weight: 29 kg/km or 38 kg/km (250 °C / 482 °F)
Electrical Properties
Conductor: nickel-plated stranded copper wire according to ASTM B 286
Insulating cover: PFA or FEP, 6YI1 by VDE 0207 Part 6 (250 °C/ 482 °F)
Interface Specifications
Cable Type: I/O cable
Connector 1: 7x pin open end
Connector 2: 7x pin open end
FAQs
Which lengths can I order?
The cables can be ordered for a length of up to 20 m (65.62 ft).
Can the cable withstand high temperatures?
Yes, a high-temperature version of the cable can withstand temperatures up to 250 °C (482 °F)
Can I use these cables for applications other than infrared sensing?
These cables are specifically designed for the Cooling Jackets and may not be suitable for other applications.
Scope of Supply
- 1x Customized I/O cable
