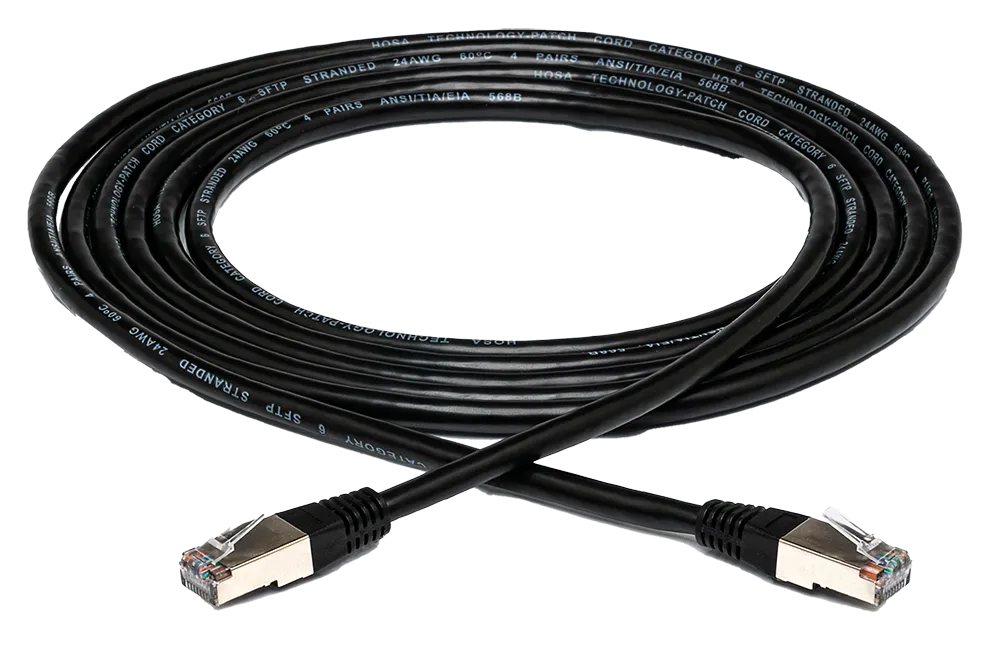

High-temperature Ethernet Cable for Cooling Jackets

For reliable data connection to the USB Server or PI Netbox inside a Cooling Jacket Advanced, Optris recommends specifically engineered high-temperature Cat-6 Ethernet cables. These industrial ethernet cables are available in two variants: rated up to 180 °C (356 °F) and up to 250 °C (482 °F) operating temperature. They guarantee robust and reliable data transmission to the infrared sensing equipment, crucial for maintaining data connection in control applications in extreme industrial environments. Offered at multiple lengths and with an optional right-angle plug, they ensure fast data transfer, essential for real-time temperature monitoring and control applications. The cable comes with a preassembled M25 cable gland for installation with a Cooling Jacket. The inherent scalability and widespread compatibility of Ethernet make these cables ideal for integrating various devices and seamlessly expanding industrial ethernet network infrastructure.

• High-temperature Ethernet cable for USB Server or PI Netbox inside Cooling Jackets
• High-temperature version up to 250 °C (482 °F)
• Up to 20 m (65.62 ft)

General Specifications

Environmental rating: IP65 (Nema-4)
Operating temperature: 0 °C to 180 °C (32 °F to 356 °F) (High temperature version up to 250 °C / 482 °F)
Relative humidity: 10 – 95 %, non-condensing
Color: black
Dimension: 4x2x24 AWG
Diameter:
180 °C : 7.5 mm (.3 in)
250 °C: 7.0 mm (.28 in)

Interface Specifications

Cable Type: Fast Ethernet
Connector 1: male RJ45
Connector 2: male RJ45

Can I use this cable directly with a Xi infrared camera?

No, this cable is intended for use with the CoolingJacket, the USB Server, or the PI Netbox. Ethernet cables for the Xi infrared cameras have an infrared camera plug.

Is this cable compatible with the PI series, Xi400, and Xi 640?

No, this cable is intended for use with the cooling jacket, the USB Server, or the PI Netbox.

Can the cable withstand high temperatures?

Yes, the high-temperature Ethernet cable can withstand temperatures up to 250 °C (482 °F).

Can I use these cables for applications other than infrared cameras?

These cables are specifically designed for the CoolingJacket and has therefore a special M25 cable gland preassembled and may not be suitable for other applications.

• 1x Customized Ethernet cable with optional right-angle plug
