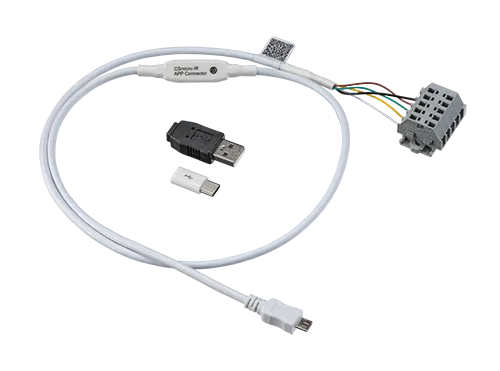

IR App Connector Cable for Optris Infrared Cameras

The IRmobile App Connector cable connects Optris infrared cameras to Android devices via micro-USB or USB-C ports. It enables direct data transfer and power supply, facilitating real-time monitoring and analysis through the IRmobile app. Ideal for field applications, it allows users to access and manage settings, enhancing efficiency. Essential for engineers needing quick access to infrared camera data from their smartphones or tablets.

General Specifications

• Environmental rating: IP65 (Nema-4)
• Operating temperature: 0 C … 50 C
• Relative humidity: 10 – 95 %, non-condensing
• Length: 450mm
• Jacket Material: PVC (Polyvinyl Chloride)
• Color: white

Interface Specifications

• Cable Type: USB 2.0
• Connector 1: USB-C plug or Micro-USB plug
• Connector 2: Optris 8-pin cable plug or 4-pin cable plug depending on infrared camera model

The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

Are the cables interchangeable?

Although all Optris infrared cameras support USB, the Ethernet-based infrared cameras have a different pinout than USB-native infrared cameras.
The infrared cameras Xi 80, Xi 410 LT, Xi 410 MT, and Xi 1M have an 8-pinout configuration, and the Xi 640, Xi400, and PI series have a 4-pinout configuration. Please use the configurator to identify the correct cable.

Does the IRmobile exist on Apple phones?

Apple iPhones do not support the required USB-OTG (On The Go) interface and are therefore not supported.

• 1x USB IRmobile App Connector Cable
