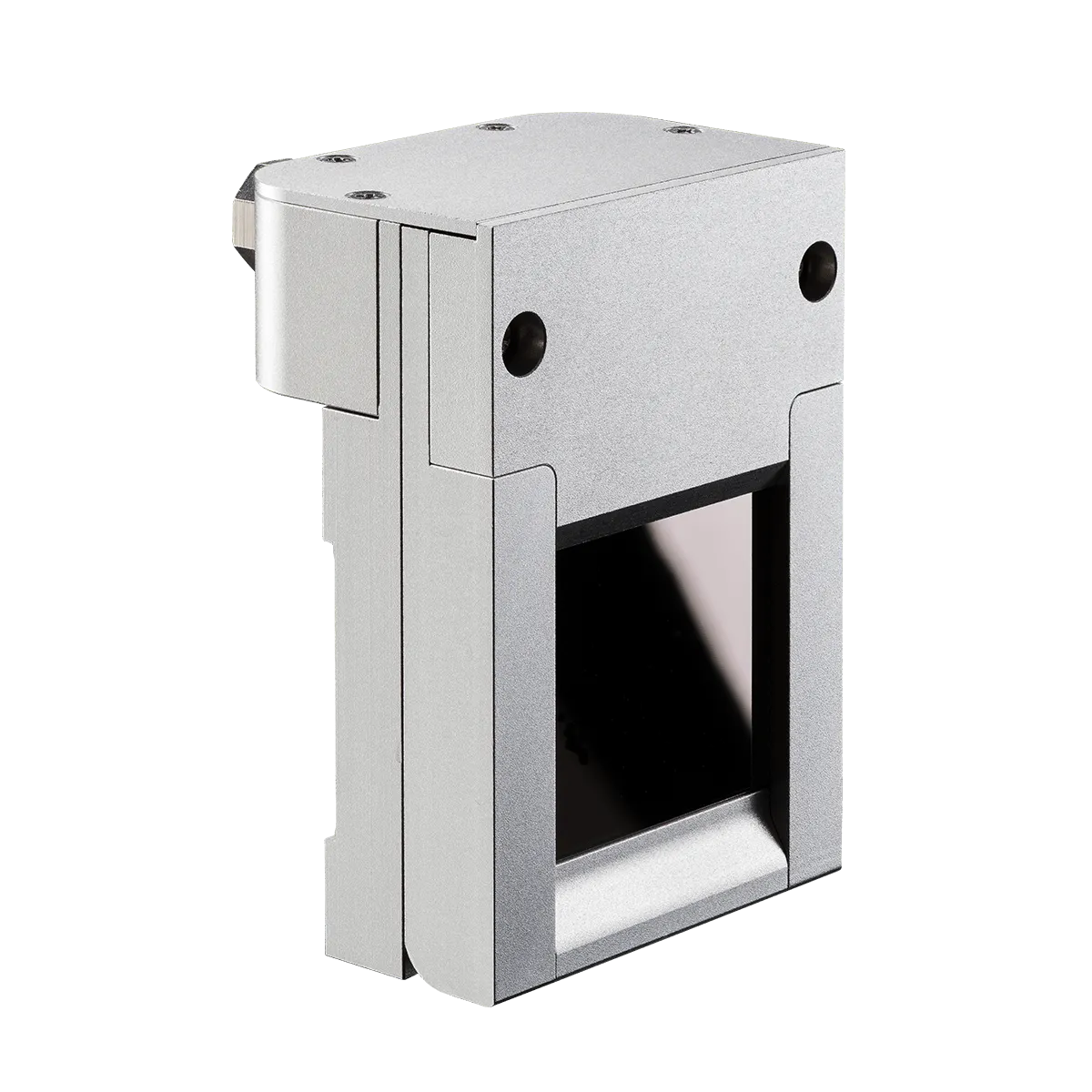

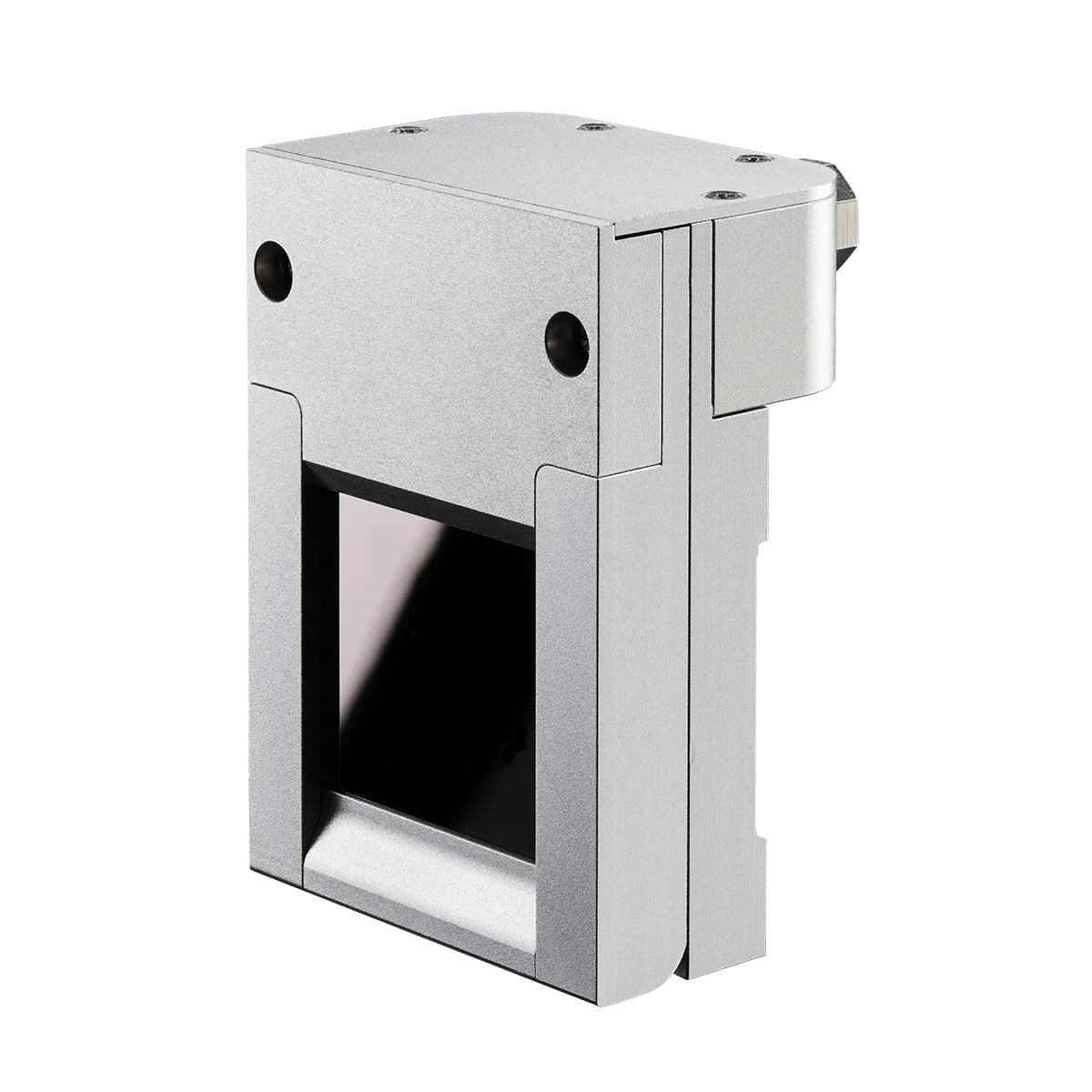

Xi Series Laminar Air Purge

The Xi Series laminar air purge maintains a clear optical path of the infrared camera in harsh environments. It is effective against dust, smoke, and fumes for accurate infrared temperature measurements. It is supplied with a matched protective window for the IR cameras spectral sensitivity. Unlike other air purges for optical measurement instrumentation, it ensures no dust accumulates on the lens edges due to the uniform, steady airflow, and the unique laminar airflow design. Compatible with water-cooled housing and shutters, it enhances reliable infrared temperature monitoring.

General Specification

• Operating temperature: 0 … 250 C
• Storage temperature range: 0 … 80 C
• Environmental rating: IP65
• Relative humidity: 10 – 95 %, non-condensing
• Material: Anodized aluminum
• Weight: 218 g / 494 g with mounting bracket
• Size: 54 mm x 76,5 mm x 36,5 mm (incl. mounting bracket)

Air purge

• Airflow: 2…10 l/min
• Absolute pressure: 1,1 – 8 bar
• Condition: Use oil-free, technically clean air only

Which other accessory is mandatory for the installation of the air purge?

The corresponding mounting bracket (Part-No.: ACXIAPLAB) is required for installation.

Can I combine an air purge, water cooling, and shutter?

Yes. Nevertheless, to ensure the correct configuration, please get in touch with the Optris sales team.

Will Optris assemble the accessory for me?

Yes, if the configurations are compatible and bought with an Optris infrared camera. Optris will assemble the infrared camera with an accessory in the factory.

• Air purge for Xi

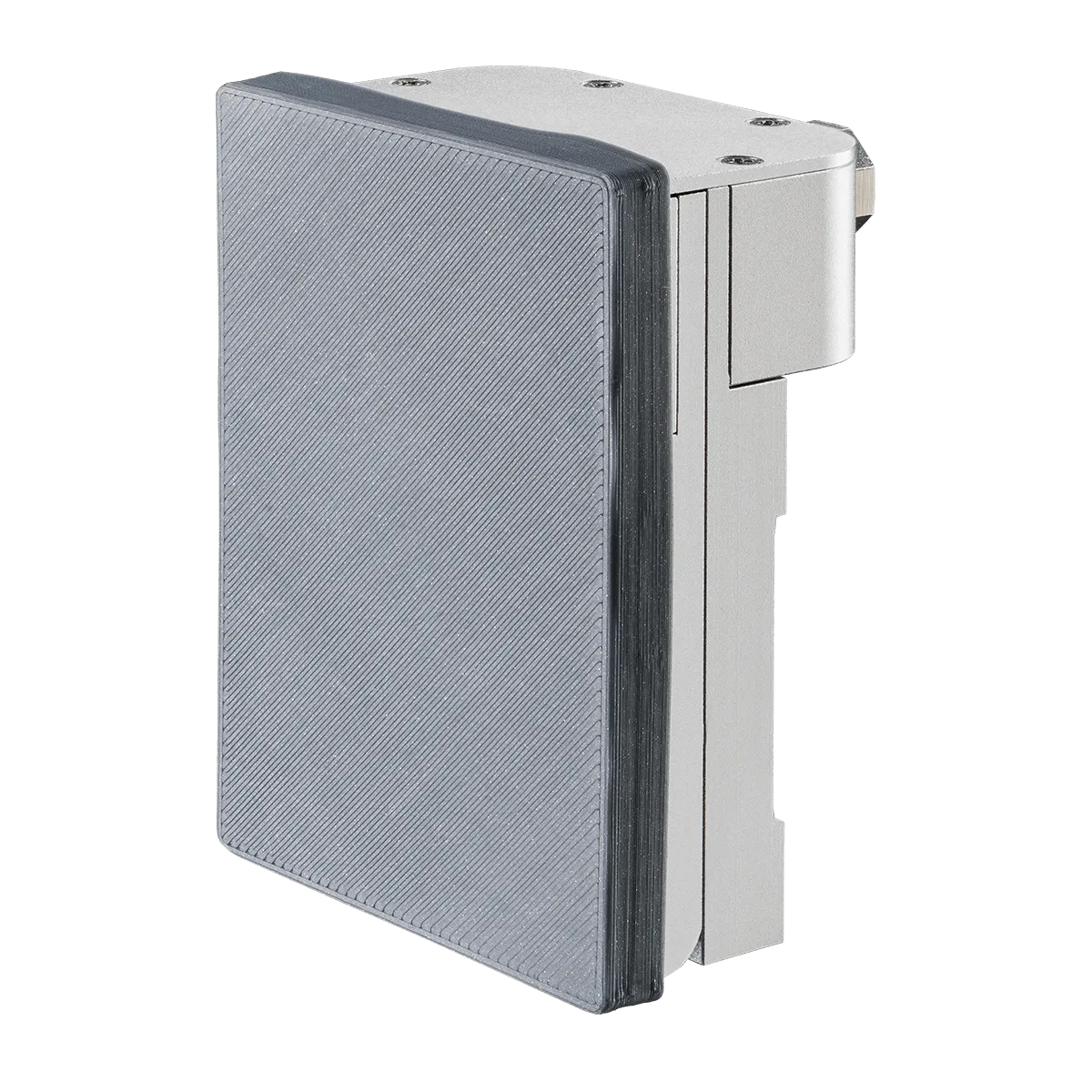

• Protective window
