Pi NetBox

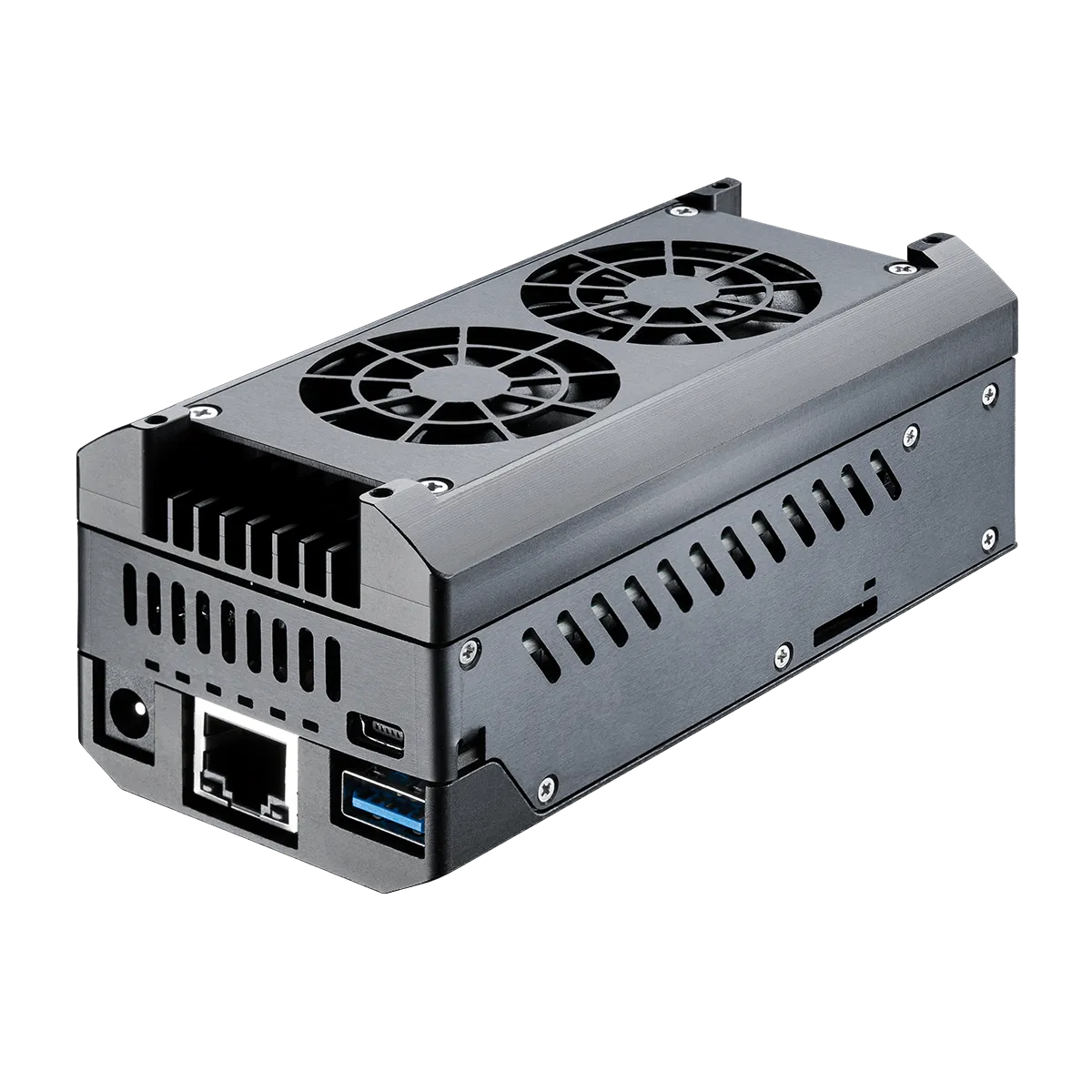

The NetBox Mini-PC, a rugged industrial Windows computer, designed for remote applications needing extra computational power for PIX Connect software. It operates as a stand-alone system with GigE Ethernet and PoE support. Featuring integrated hardware and software watchdogs, it ensures reliability in critical applications. Moreover, it can integrate with the Cooling Jacket Advanced for enhanced cooling for temperature up to 315 C.

General Specifications

• Operating temperature: 0 C … 50 C
• Storage temperature: –20 C … 75 C
• Relative humidity: 10 – 95 %, non-condensing
• Cooling: Active cooling with two integrated fans
• Material: Anodized aluminum
• Size: 113 x 57 x 47 mm
• Weight: 385 g
• Vibration: IEC 60068-2-6 (sinusoidal) / IEC 60068-2-64 (broadband noise)
• Shock: IEC 60068-2-27 (25 G and 50 G)

Computational Specifications

• Processor: Intel Atom E3950 QuadCore, 1,6/ 2,0 GHz (Turbo)
• RAM: 4GB
• Hard Drive: 32 GB SSD
• Memory card slots: Micro SDHC / SDXC card
• Power: 8-48 V or PoE (1000BASE-T)
• Power consumption: < 7.5W (+ Addition 2.5 W for a PI camera)
• Interfaces: Micro-HDMI, 3x USB 2.0, GigE Ethernet
• Operating system: Windows 10 Enterprise

What is the PI NetBox?

The PI NetBox is a miniaturized PC designed to expand the optris PI series into a stand-alone solution with remote access capabilities via GigE Ethernet and Power over Ethernet (PoE).

What operating system does the PI NetBox use?

The PI NetBox operates on Windows 10 Enterprise. It does not run a Linux operating system.

What are the power supply options for the PI NetBox?

The PI NetBox can be powered using an 8 – 48 VDC voltage range or via Power over Ethernet (PoE).

What are the environmental operating conditions for the PI NetBox?

The operating temperature range is 0 to 50 C (up to 315 C with Cooling Jacket Advanced), and the storage temperature range is -20 to 75 C. It supports 10 – 95% relative humidity, non-condensing.

Can Addition software be installed on the PI NetBox?

Users can easily install Addition software to customize the PI NetBox to their specific requirements.

Is the PI NetBox compatible with the Cooling Jacket Advanced?

The PI NetBox can be integrated with Cooling Jacket Advanced to provide enhanced cooling solutions in demanding environments.

What is the function of the PI NetBox’s watchdog? What should I do if the software application on the PI NetBox crashes?

The PI NetBox features an integrated software watchdog that automatically restarts the application if it crashes. Ensure the Autostart option is enabled in the NetBox Control Center.

• 1x PI NetBox
• 1x 32GB Micro-SDHC card
• 1x 24 VDC power supply
• 1x Rail mount adapter
• 1x Micro-HDMI/ HDMI cable
• 1x Ethernet cable
• 1x USB System recovery stick
