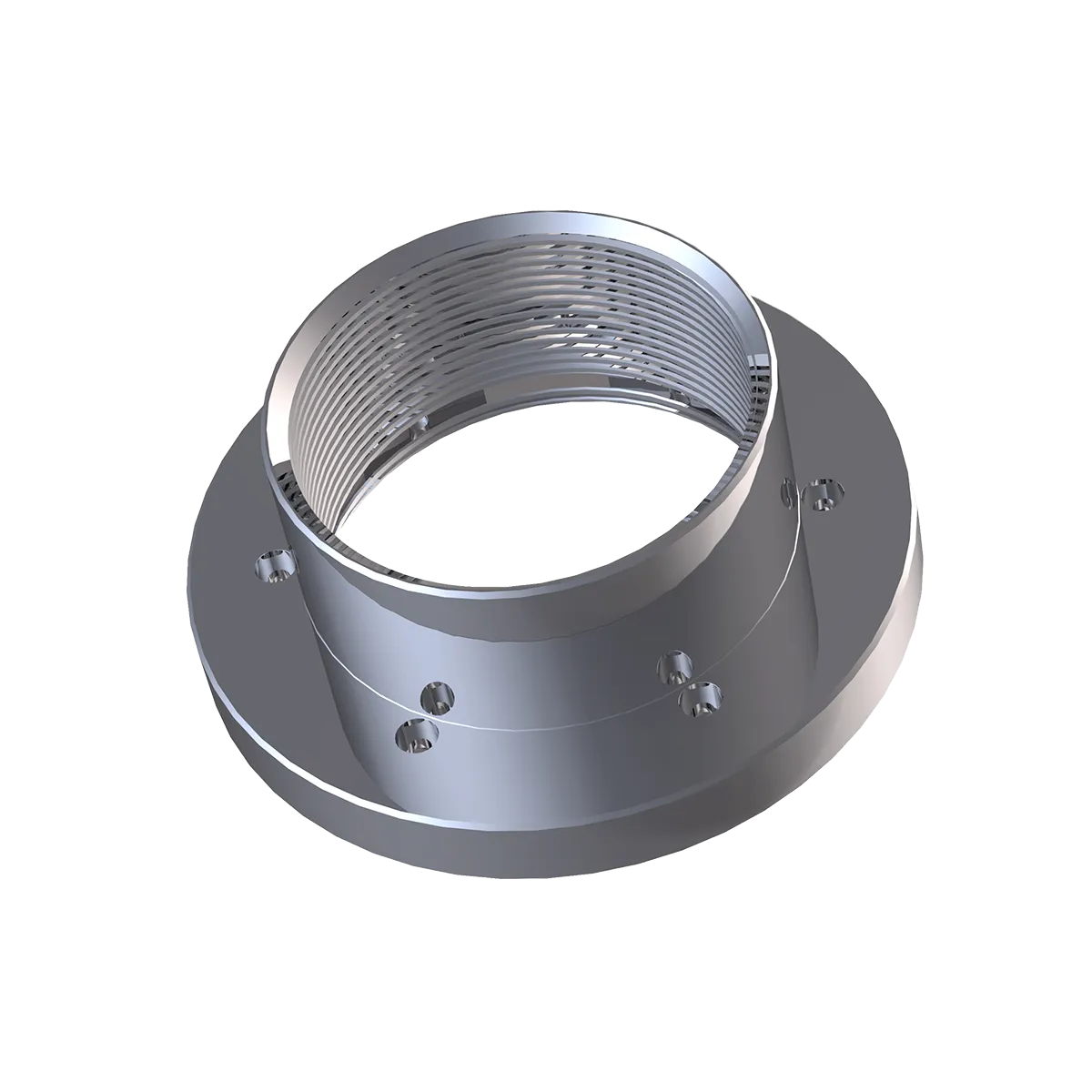

Pipe Flange for Cooling Jacket Advanced
.
- Compatible to the Cooling jacket Advanced
- Made in stainless steel
- For Installation on pipes
$120.00
excl. sales taxes, custom tariffs and shipping
Product Decription
The pipe flange in the Cooling Jacket Advanced is designed for front mounting of the cooling housing. It provides a secure connection for installing onto various surfaces, including pipes, and fits sighting tubes with M48x1.5 thread. This flange ensures the cooling housing is correctly positioned and firmly attached. It includes necessary mounting screws and washers, enhancing the versatility and adaptability of the Cooling Jacket Advanced.
Specification
General Specification
- Operating temperature: 0 °C to 60 °C (32 °F to 140 °F) (up to 315 °C / 599 °F with water cooling accessory)
- Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Material: Stainless steel
- Size: 76 mm x 30 mm (6.3 in x .79 in)
- Weight: 480 g (16.93 oz)
- Mounting: 6x M8 bolts
- Thread for sighting tube: M48x1,5
Downloads
FAQs
Do I need special screws for the Pipe Flange?
No, the screws are included in the scope of delivery.
Do I have to dismantle the Airpurge to install the Pipe Flange?
Yes, the red ring of the Airpurge must be removed.
Could a protective window be provided for the Cooling Jacket and the pipe flange?
Yes, there is a protective window that must be ordered separately.
Which Cooling Jacket Advanced models are compatible with the mounting pipe?
The mounting pipe is compatible with the standard and extended versions of the Cooling Jacket Advanced.
Scope of Supply
- 1x Pipe flange
- 6x Cylinder head screw M2
