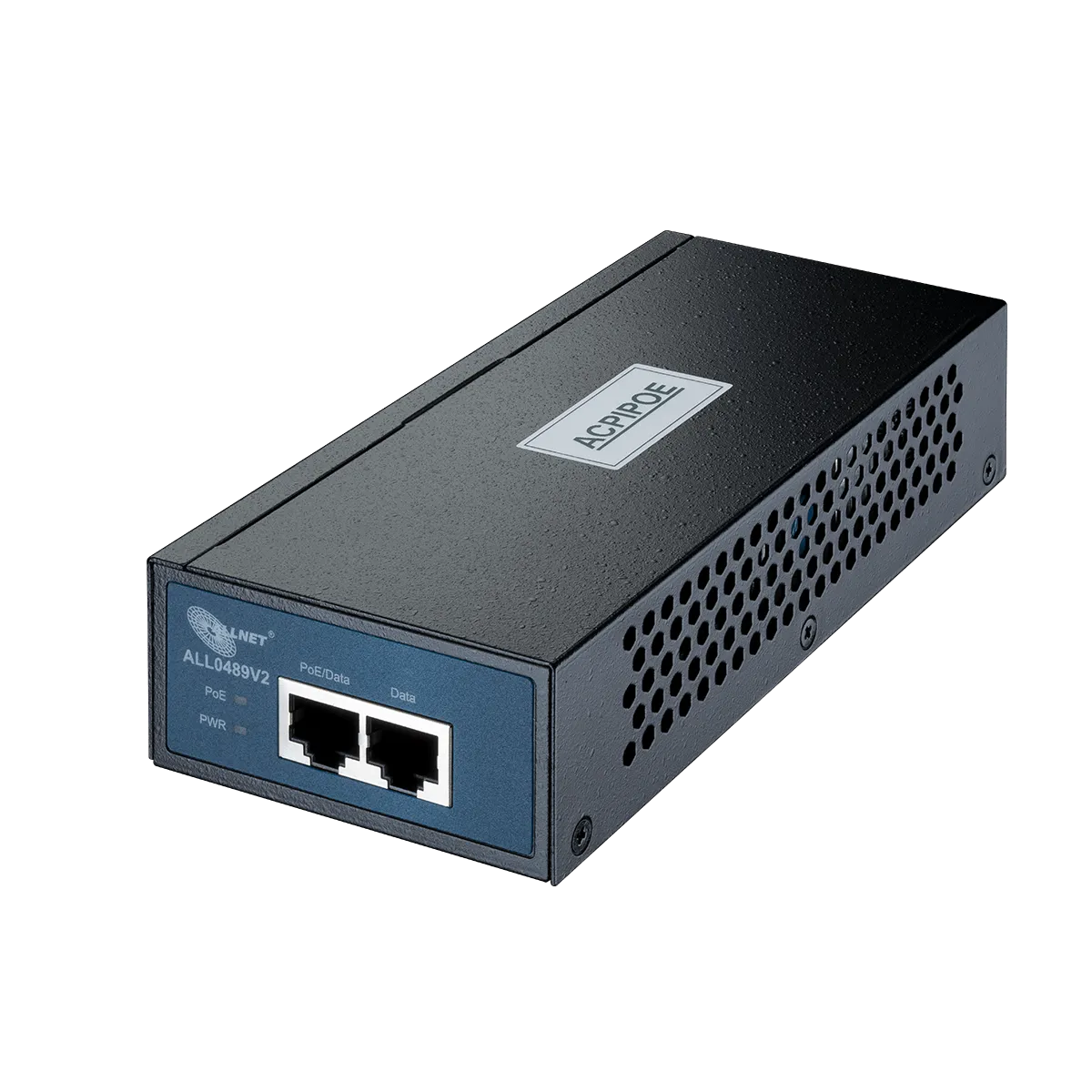

PoE Injector for PI NetBox or USB-Server
.
- Powers infrared cameras over Power-over-Ethernet
- Gigabit speed
- Compact design
$140.00
excl. sales taxes, custom tariffs and shipping
Product Description
The high-power PoE Injector enables Ethernet-enabled infrared camera installations without power outlets, upgrading non-PoE switches and avoiding new switch costs. It supports IEEE802.3af (15.4W) and IEEE802.3at (30W) standards. With RJ-45 input and output jacks, it connects devices up to 100 meters apart. The compact, robust metal design allows hidden installation, featuring an integrated power supply. Configuration-free setup simplifies adding PoE support.
Specification
General Specification
- Operating temperature: 0 … 50 C
- Storage temperature: -40 … 70 C
- Relative humidity: 10%… 90%, non-condensing
- Size: 155 x 74 x 36 mm
- Material: Metal
Interface Specification:
- Ethernet ports:
- 1x RJ45 for connection to passive switch or hub
- 1x RJ45 for connection to PoE device
- Speed: up to GigE
- Protocols:
- IEEE802.3af Power over Ethernet
- IEEE802.3at Power over Ethernet enhancements
- IEEE802.3 10BaseT
- IEEE802.3u 100BaseTX
- IEEE802.ab 1000BaseT
Electrical Parameters
- Power: 100 … 240 VAC
- Power consumption: max. 42,1W
Compliance:
- CE, EN 60950-1, CSA international, EU RoHS Compliant
Downloads
FAQs
Who is the original manufacturer of this device?
It is Allnet. Based in Germany.
Why does Optris recommend this injector?
Optris recommend this injectors as it has been proven in many industrial field installations.
Can I use other PoE injectors with Optris infrared cameras?
Yes, Optris infrared cameras are compatible with other PoE injectors as well.
Scope of Supply
- PoE Injector
- Power Supply cable
Talk to us about your IR Temperature Measurement Requirements
Our Infrared Temperature Measurement experts can help you find the right Optris product for your application.
