Protective Windows
.
- Compatible with Cooling Jacket Advanced air purges and focusing units
- Compatible with Outdoor Protection Housing
- High Transmittance
- Features Anti-Reflective Coating
- High Operating Temperature Range
From $210.00
excl. sales taxes, custom tariffs and shipping
Product Description

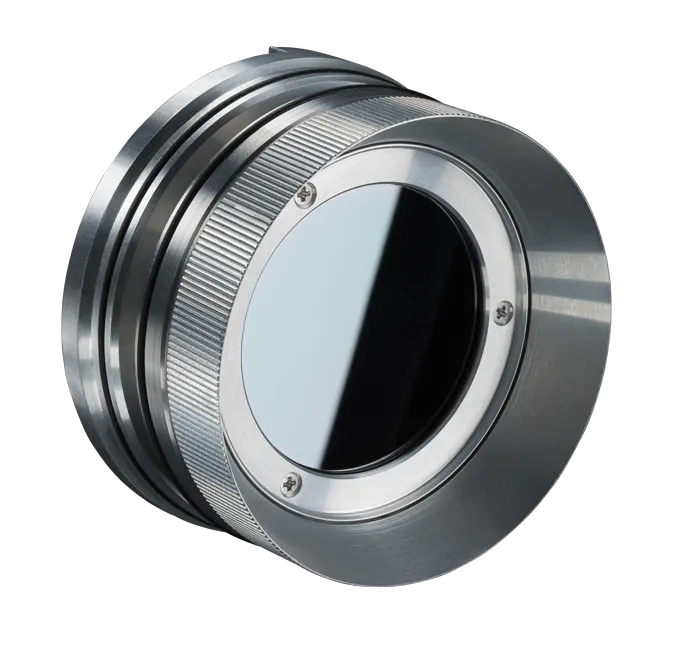

The protective window for CoolingJacket Advanced or Outdoor Protective Housing shields infrared imager and pyrometer optics from dust and dirt. Available sizes are 50.8 mm x 3 mm (2 in x .12 mm) for outdoor housing and 67 mm x 3 mm (2.64 in x .12 in) for air purge laminar systems. Material options include Germanium, Zinc-Sulfide, Silicon, Borofloat, and Sapphire, compatible with various bandwidths including LT, G7, P7, 4M, 05M, 08M, 1M, 2M, 3M, MT, F2, F6, and G5.
Specification
General Specifications
- Diameter: 50.8 mm or 67 mm (2 in or 2.64 in)
- Thickness: 3 mm (.12 in)
Materials / Combinations
- Available in the following material versions:
- Germanium – for LT, G7, P7
- Zinc-sulfide – for LT, G7, P7
- Silicon – for 4M
- Borofloat – for 05M, 08M, 1M
- Sapphire – for 05M, 1M, 2M, 3M, MT, F2, F6, G5
Transmission
- Germanium: 0.96 (G7)
- Germanium: 0.92 (LT, P7)
- Zinc-sulfide: 0.93 (G7)
- Zinc-sulfide: 0.92 (LT, P7)
- Borofloat – 0.92 (1M/ 2M/ 3M)
The shown values are typical and may vary between different delivery batches.
Operating Temperature
- Germanium: < 100 °C (212 °F)
- Zinc-sulfide: < 200 °C (392 °F)
- Silicon: < 200 °C (392 °F)
- Borofloat: < 200 °C (392 °F)
- Sapphire: < 200 °C (392 °F)
FAQs
Which window should I choose from?
Different window materials must be chosen depending on the infrared sensor’s spectral sensitivity. The infrared transmissive bandwidth must match the sensor’s spectral range. Adequate protection windows are available for all versions. Please review the manual to verify which window best fits the sensor.
What is the typical transmissivity of the windows?
Please review the manual for this information, but the lower level is usually >0.90.
Can the window be exchanged in the CoolingJacket Advance or Outdoor Protective housing?
Yes, the window can be exchanged by the user, if damaged or broken.
How can I clean the window?
Blow off loose particles using clean compressed air. The lens surface can be cleaned with a soft, humid tissue (moistened with water) or a lens cleaner (e.g. Purosol or B+W Lens Cleaner).
Scope of Supply
- Protective window
- O-ring
Related Products
