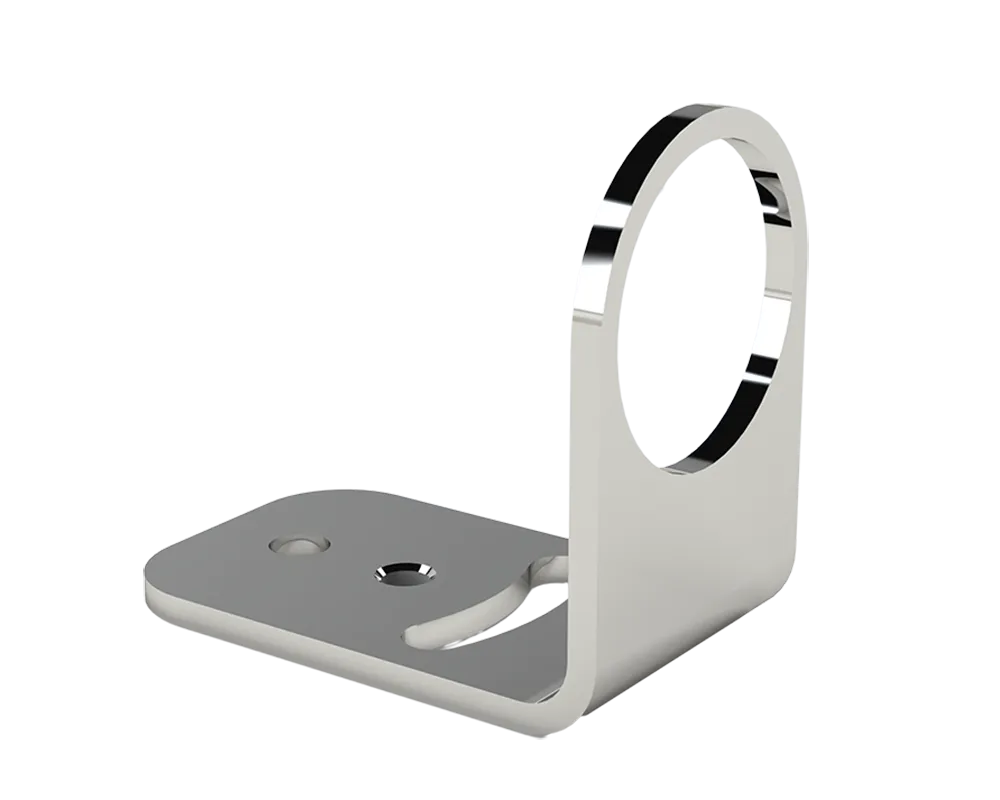

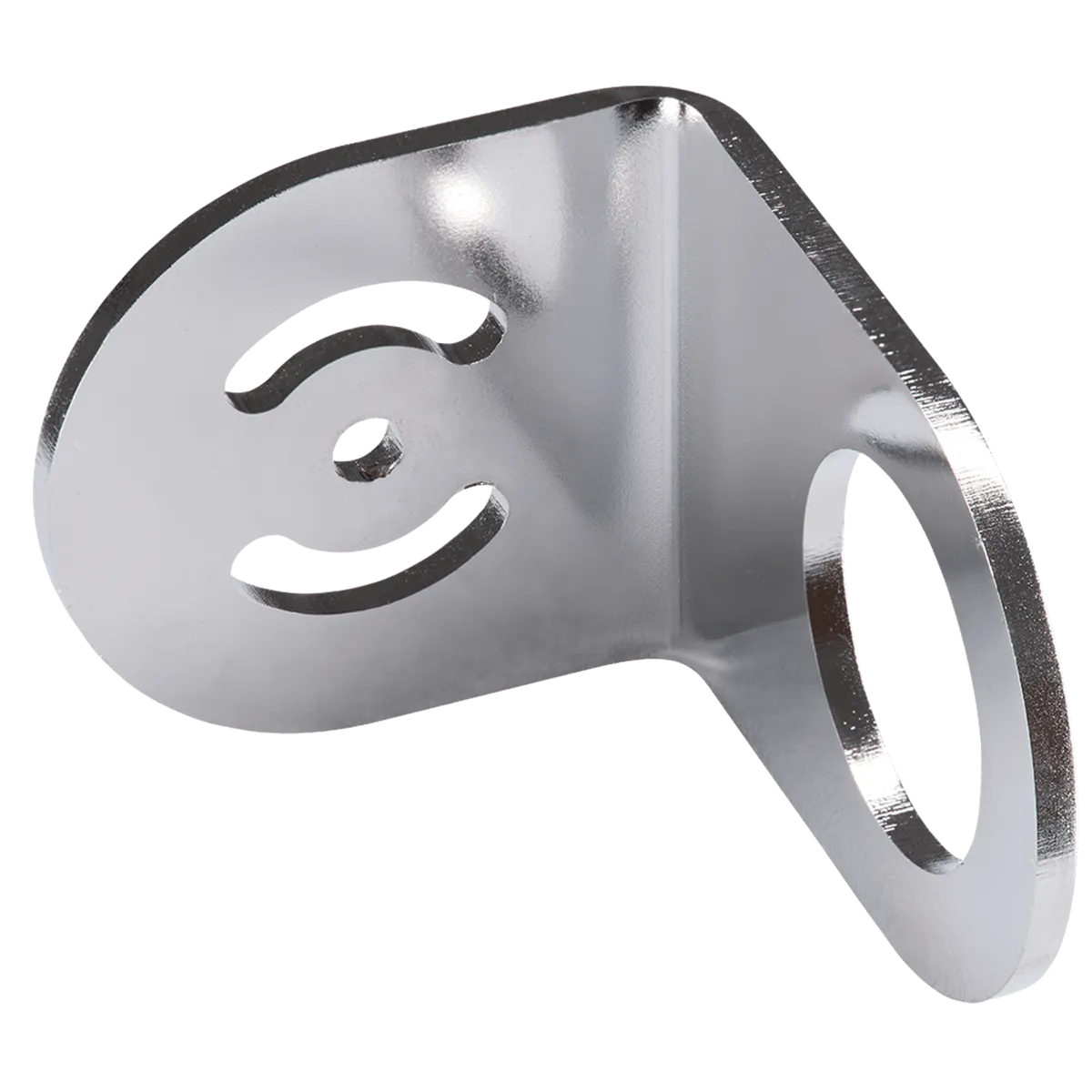

Standard Mounting Bracket for Xi Infrared Cameras
.
- Adjustable in one axis
- Made in stainless steel
- With tripod thread
$45.00
excl. sales taxes, custom tariffs and shipping
Product Description
The Mounting Bracket for the Xi series cameras is a simple metal part for installing the Xi infrared cameras for stationary use. It is adjustable in one axis and made of stainless steel. The bracket also has a standard tripod thread, providing compatibility with various mounting options.
Specification
General Specifications:
- Size: 36 x 55 x 60 mm, M30x1
- Thickness of metal sheet: 4 mm
- Material: stainless steel
- Operating temperature range: Same as the sensing head
- Tripod mount: 1/4 -20 UNC
Downloads
FAQs
Which Xi series cameras are compatible with this mounting bracket?
The mounting bracket is designed to be compatible with all Xi series cameras, providing secure and stable support.
Is the mounting bracket part of the standard scope of supply?
Yes, each Xi infrared camera comes with this bracket as a standard scope of supply.
What materials is the Mounting Bracket made of?
The Mounting Bracket is made of high-quality stainless steel, type 1.4301.
Is the Mounting Bracket adjustable?
Yes, the bracket is adjustable on one axis. The bracket is secured with two screws, of which one is mounted in a slit so that the infrared camera can rotate horizontally.
Can the mounting bracket be used in outdoor environments?
Yes, the bracket’s stainless steel design makes it suitable for use in both indoor and outdoor industrial environments.
Scope of Supply
- Mounting bracket
- Mounting nut
