Furnace Wall Mount

The Furnace Wall Mount Accessory securely and accurately installs infrared temperature sensors in furnace environments. Compatible with M48 thread sensors like CSlaser, CTlaser, CSvision, and adaptable to CTRatio, it ensures versatility. The sighting tube prevents interference from non-parasitic particles, and the mount creates a 300 mm (11.81 in) long buffer from the furnace wall, maintaining optimal temperatures. Its robust stainless steel construction ensures reliable and durable attachment.

• Securely installs infrared sensors onto walls and furnaces
• Compatible with high performance pyrometers from Optris
• Adaptable to CTRatio sensor
• Durable stainless steel construction

General Specification

• Operating temperature: 0 °C to 315 °C (32 °F to 599 °F)
• Storage temperature: 0 °C to 60 °C (32 °F to 140 °F)
• Material: Stainless steel
• Length sighting tube: 300 mm (11.81 in)
• Width sighting tube: 48 mm (1.89 in)
• Size: ø146 x 350 mm (5.75 x 13.78 in)
• Weight: 1,2 kg (.04 oz)
• Bolt Circle: 45 – 60 mm (1.77 – 2.36 in)
• Mounting: 4 x M6 x 14 bolts
• Thread for pyrometers: M48x1,5

What is the best optic for this application?

The sighting tube is not compatible with a pyrometer with close-focus optics. The inner diameter of the sighting tube is 43mm (1.69 in). For the 300 mm pipe length, the measuring spot should be smaller than 43 mm at that length.

Are the screws for fastening to the wall in the scope of supply?

No, the screws for 9 mm (.35 in) diameter holes are not supplied because different wall materials require different screws.

Can the accessory be used in outdoor environments?

The durable design suits indoor and outdoor industrial environments.

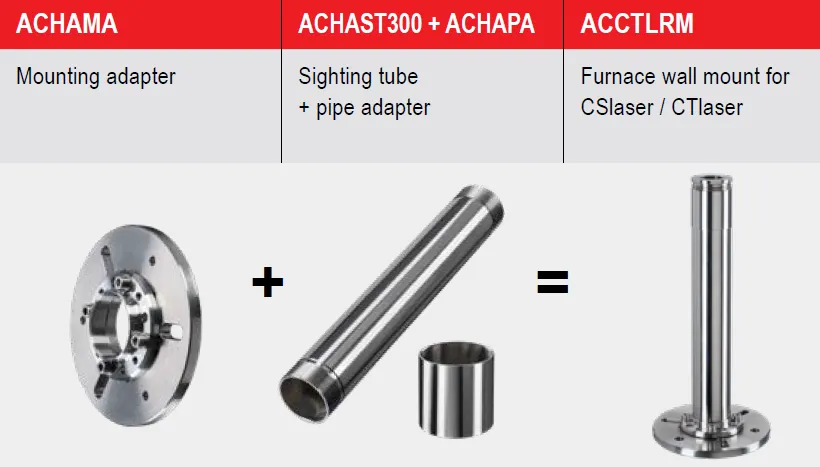

• 1x Mounting adapter (ACHAMA)
• 1x Sighting tube (ACHAST300)
• 1x Pipe adapter (ACHAPA)
• 1x Optionally M48-M18-Adapter (ACCTRATA) (for CTratio)
