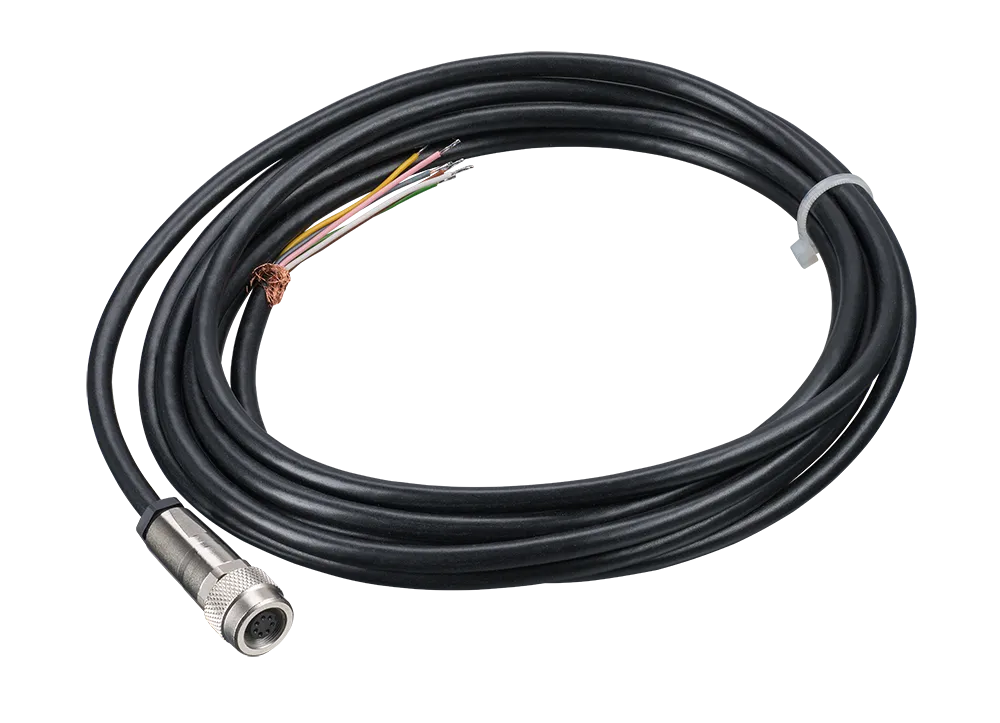

Head cable with connector (analog and alarm output / 7-pin connector – open ends)
Connection cable for analog or digital output of measuring signals and alarming.
Connection cable for analog or digital output of measuring signals, alarming or for the Laser function. One side with connector for the pyrometer and open wires on the other side. The Head cable connector is also available as high temperature cable and for cable carriers.
- Up to 105 °C (221 °F), outer diameter: 4.8 mm (.19 in)
From $80.00
excl. sales taxes, custom tariffs and shipping
Product description
Connection cable for analog or digital output of measuring signals and alarming.
- Up to 180 °C (356 °F), outer diameter: 4.8 mm (.19 in)
Specifications
LiYtCYt 7 x 0.22 mm^2 (.28 x .009 in^2)
Sheath material: PVC, Shore A 88
Outer diameter: 4.8 mm (.19 in)
Weight: 24.40 kg/km
Downloads
FAQ
How to connect the wires for alarming and turn the Laser on or off?
In the manual on page 23 is a description and the wiring diagram for the connection.
How to implement the video signal with the Head cable connector?
The video signal is only possible with the USB connection
