I/O Cable for CSvision

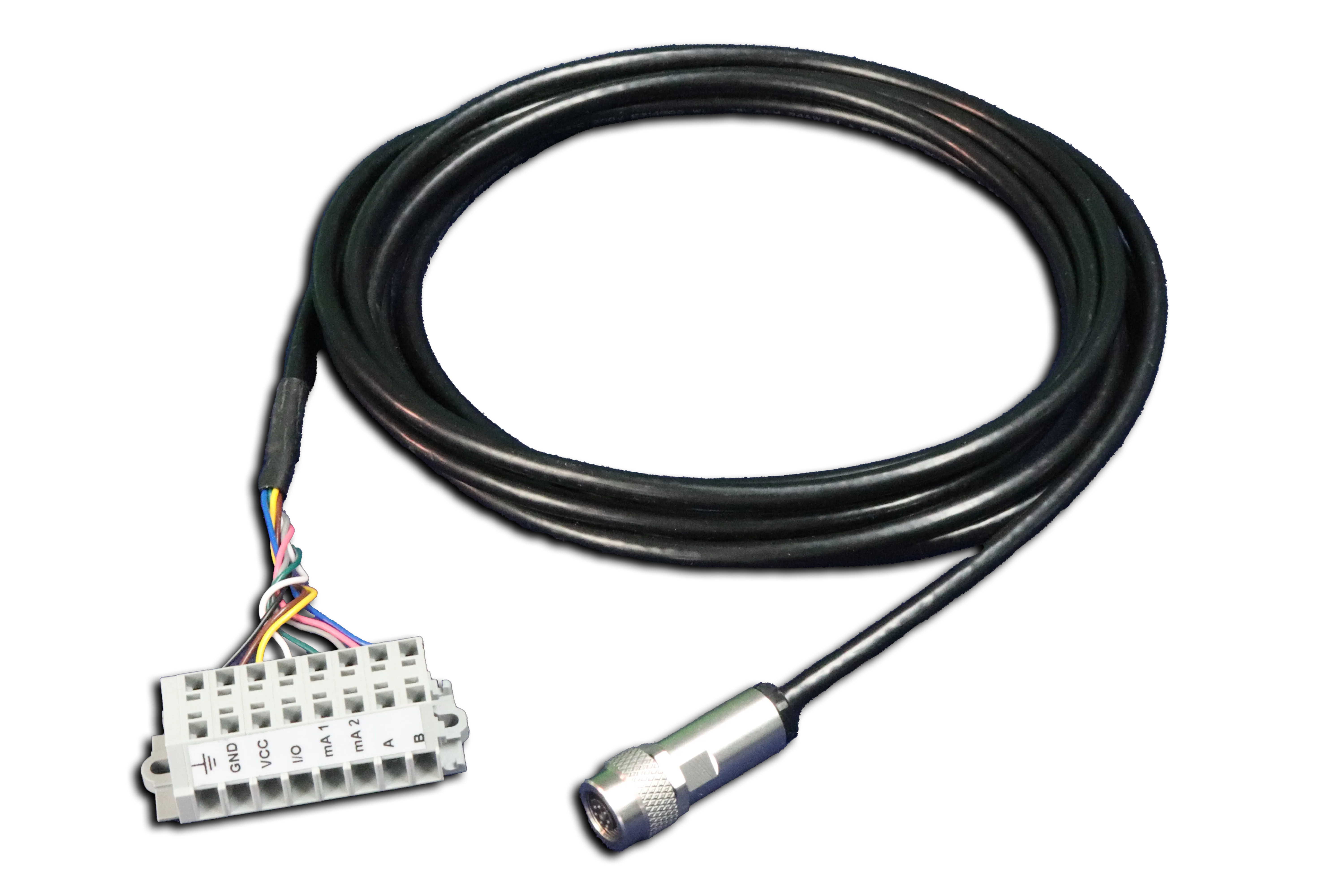

The 7-pin cable, featuring a 7-pin cable socket on one side and open ends on the other side, is engineered for industrial analog outputs and inputs, supporting serial data transmission protocols like RS485 and Modbus RTU. It boasts exceptional resistance to chemicals and solvents, ensuring durability in harsh environments. This cable maintains high performance under extreme conditions with excellent temperature resistance and low-temperature flexibility. It also provides superior electrical insulation, making it a dependable choice for industrial applications. Capable of facilitating parameterization, data transmission, and alarm switching, this cable ensures precise and reliable temperature monitoring and control across various applications. Available in two temperature ratings – up to 80 °C (176 °F) and up to 180 °C (356 °F)—standard lengths are offered in 3 m, 8 m, and 15 m (9.84 ft, 26.25 ft, and 49.21 ft).

• I/O cable for CSvision
• Analog output, I/O, RS485, Modbus RTU and interface box connection data cable
• Excellent resistance to chemicals and solvent resistance
• Maintains low-temperature flexibility
• Excellent electrical insulation
• High-temperature version up to 180 °C (356 °F)
• Up to 15  m (49.21 ft)

General Specification

Operating temperature: 80 °C (176 °F) up to 180°C (356 °F) (90°C / 194 °F for cable carrier version)
Storage temperature: 0 °C to 60 °C (32 °F to 140 °F)
Color: White or grey (cable carrier version)
Material: PFA or FEP, 6YM1 according to VDE 0207 Part 6 (250 °C / 482 °F)
Outer diameter: 4.80 mm (.19 in)
Weight: 24.4 kg/km or 38 kg/km (250 °C )

Electrical Properties

Conductor:
Bare copper strand 7×0.20 mm AWG 24 (180 °C / 356 °F)
Tinned stranded copper wire according to ASTM B 286 (250 °C / 482 °F)
Bare copper stranded wire, superfine stranded wire (cable carriers)

Insulating cover:
PVC YI1,2,4,5,7 DIN VDE 0207 Part 4, TI51/52/54
PFA or FEP, 6YI1 by VDE 0207 Part 6 (250 °C / 482 °F)

Sheath:
PVC YM1,2,3,5 DIN VDE 0207 Part 5 TM51/52, EN 50290-2-22, UL 758 14.1 105°C, Shore A 88 ± 3 (180 °C / 356 °F)
FEP, 6YM1 according to VDE 0207 Part 6 (250 °C / 482 °F)
PUR, TMPU according to DIN VDE 0282 Part 10 + HD 22.10 with matt surface (cable carriers)

Interface Specifications

Cable Type: I/O cable
Connector 1: 7-pin open end (terminal block)
Connector 2: 7-pin CSvision Connector plug

Pin assignment of 7-pin connector

Vcc (>8V): yellow
GND: brown
I/O Pin: white
mA Output 1: green
mA Output 2: grey
RS485 A: pink
RS485 B: blue

Which lengths can I order?

The cables can be ordered for a length of up to 15 m (49.21 ft).

Can the cable withstand high temperatures?

Yes, a high-temperature cable version can withstand temperatures up to 180 °C ( 356 °F).

Can I use these cables for applications other than infrared sensing?

These cables are specifically designed for the CSvision and may not be suitable for other applications.

• 1x customized cable
• 1x terminal block
