Laser-Sighting Tool for CT heads

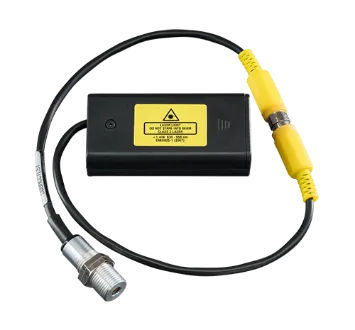

This sighting tool is an Addition accessory for the CT series. This tool might be convenient for the alignment of the CT sensing head. The sighting tool consists of a simple laser light, which shall mark the center of the measurement spot. It can either be powered from the CT electronics box or with extra batteries.

General Specifications

• Operating temperature range: 0 °C to 50 °C (32 °F to 122 °F)
• Storage temperature range: 0 °C to 50 °C (32 °F to 122 °F)
• Relative humidity: 10…95 %, non-condensing
• Size: Ø12, M12x1
• Power supply via CT electronic box or battery

Optical Specifications

• Wavelength: 0,635 µm
• Laser class: 2 (EN60825-1)
• Rotation symmetrical

Why should I use it?

This tool helps align the CT and CSmicro sensing heads, particularly in very narrow spaces where precise alignment is challenging. The sighting tool utilizes simple laser light to mark the center of the measurement spot, ensuring accurate alignment of the CT sensing head with the optical path of the infrared sensor.

Is the laser dangerous?

The laser is a class 2 laser with less than 1mW in the wavelength range around 635nm, as per EN 60825 1. It’s crucial to remember not to point the laser directly at the eyes of people or animals. Avoid staring into the laser beam and any indirect exposure via reflective surfaces for your safety.

Can the laser be used permanently?

The laser should only be used for sighting and positioning of the sensor. A permanent use of the laser can reduce the lifetime of the laser diodes. Do not use the laser at operating temperatures above 50 °C (122 °F).

Can I trigger the laser externally?

Yes, use the digital output in the CT electronic box.

• Laser-Sighting Tool for CT
• 2x Alcaline AA
