Mounting Flange for Cooling Jacket Advanced
.
- Compatible to the Cooling jacket Advanced
- Made in stainless steel
- For Installation on furnace walls
$245.00
excl. sales taxes, custom tariffs and shipping
Product Description

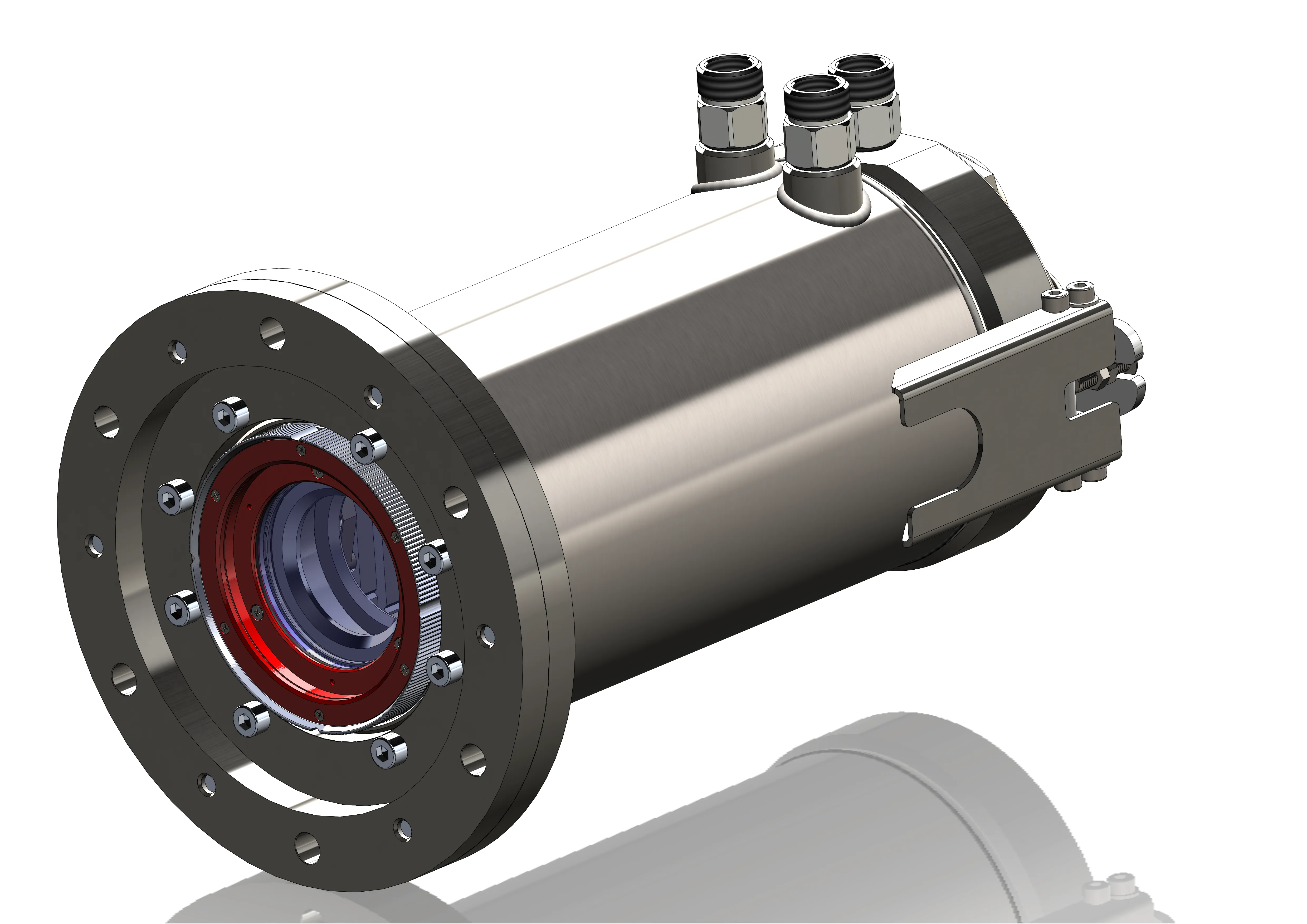

The mounting flange in the Cooling Jacket Advanced is for front mounting the cooling housing securely onto various surfaces, including pipes and furnace walls. It ensures correct positioning and firm attachment. The flange includes necessary mounting screws and washers, enhancing the Cooling Jacket Advanced’s versatility and adaptability for different installations.
Specification
General Specification
- Operating temperature: 0 °C to 60 °C (32 °F to 140 °F) (up to 315 °C / 599 °F with water cooling accessory)
- Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Material: Stainless steel
- Size: 160 mm x 20 mm (6.3 in x .79 in)
- Weight: 800 g (28.22 in)
- Bolt Circle: 139 mm (5.47 in)
- Mounting: 6x M8 bolts
Downloads
FAQs
Do I have to disassemble the Cooling Jacket to install the flange?
No, you can mount the flange on the cooling jacket without disassembling it.
What is the mounting flange used for?
The mounting flange securely attaches the Cooling Jacket Advanced to various surfaces, ensuring the cooling housing’s stable and precise positioning.
Which Cooling Jacket Advanced models are compatible with the mounting flange?
The mounting flange is compatible with the standard and extended versions of the Cooling Jacket Advanced.
What materials are used in the construction of the mounting flange?
The mounting flange is typically made from durable materials like stainless steel, ensuring long-lasting performance and resistance to harsh industrial environments.
Does the mounting flange come with installation hardware?
Yes, the mounting flange includes the necessary mounting screws and washers for installation.
Can the mounting flange be used for pipe installations?
Yes, the mounting flange is suitable for pipe installations, making it ideal for applications that require positioning the Cooling Jacket Advanced to look into a furnace or similar environments.
Can the mounting flange be adjusted after installation?
While the mounting flange provides a stable and fixed attachment, minor adjustments can be made during installation to ensure optimal positioning.
Scope of Supply
- 1x flange
- 8x M8 bolt
- 8x washers
