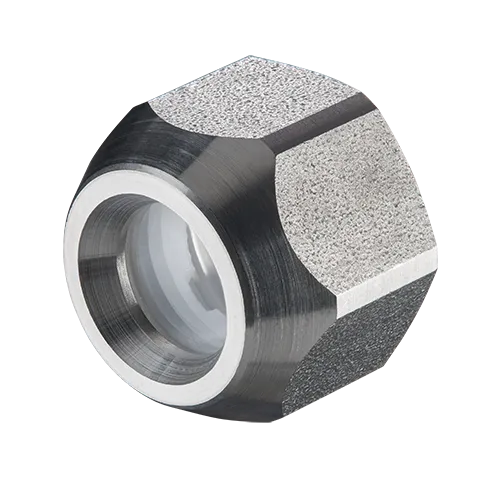

Protective Window
.
- Protects optics of compact infrared sensor heads
- Internal and external thread options
- Easy installation with end-stop
- Compatible with LT, 1M, 2M, 3M, 4M models
- Suitable for massive housing and air purge
From $50.00
excl. sales taxes, custom tariffs and shipping
Product Description
A protective window safeguards the optics of sensing heads in LT, 1M, 2M, 3M, and 4M models. Compatible with CF lenses, it ensures easy installation and robust protection. With a sturdy stainless steel housing and high-transmission window, it prevents environmental contaminants and physical damage, maintaining accuracy for reliable measurements in demanding environments. Options include external threads for massive housings.
Specification
General Specification

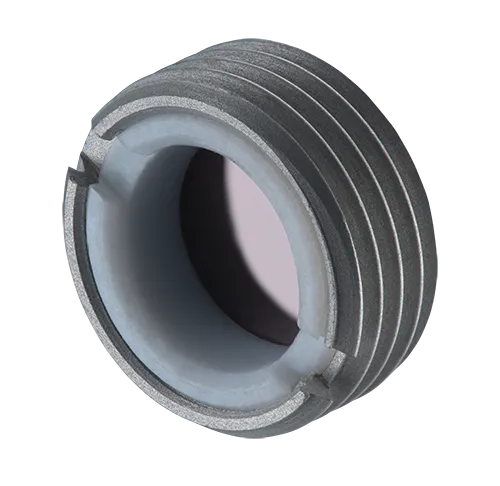

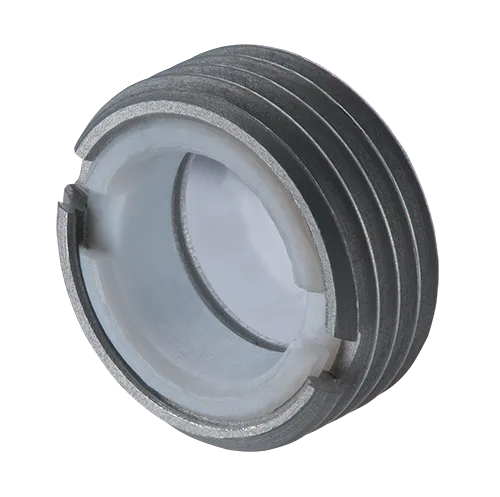

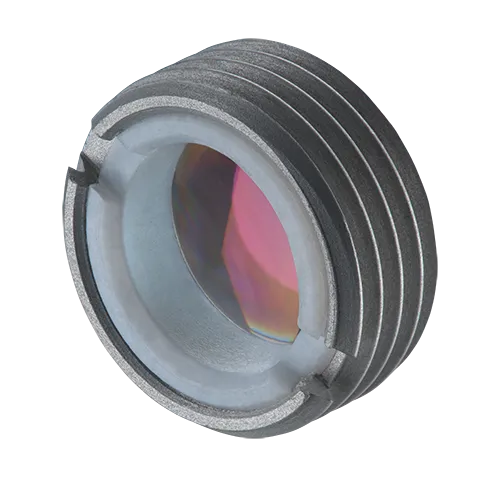

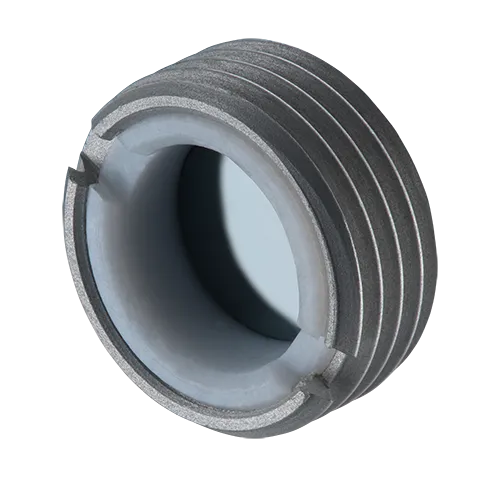

- Size: Ø14 x 11 mm ( Ø12 x 5 mm / .47 x .2 in with external thread)
- Storage temperature: 0° to 70 °C (32 °F to 158 °F)
- Thread size: M12
- Housing Material: Stainless steel
Materials / Combinations
- Germanium – for LT
- Silicon – for 4M
- Borofloat – for 1M, 2M, 3M
Typical Transmission
- LT: 0.83
- 1M: 0.93
- 2M: 0.93
- 3M: 0.93
- 4M: 0.92
The shown values are typical and may vary between different delivery batches.
Operating Temperature
- Germanium: <100 °C (212 °F)
- Silicon: <200 °C (392 °F)
- Borofloat: < 200 °C (392 °F)
Downloads
FAQs
Which window should I choose from?
Different window materials must be chosen depending on the infrared sensor’s spectral sensitivity. The infrared transmissive bandwidth must match the sensor’s spectral range. Adequate protection windows are available for all versions. Please review the manual to verify which window best fits the sensor.
How do I install the window?
Turn the window until it reaches the end stop to install it on the sensing head. To combine it with the massive housing, please use the version with external thread M12x1.
What wrench size is required to screw on the lens?
The wrench size is 14 mm (0.55 in).
Can I exchange the protective windows from CT 4M for a CT LT?
No, the antireflection coating for 4M and LT sensors is different, so the measuring results will be slightly different.
How can I clean the window?
Blow off loose particles using clean compressed air. The lens surface can be cleaned with a soft, humid tissue (moistened with water) or a lens cleaner (e.g. Purosol or B+W Lens Cleaner).
Scope of Supply
- 1x protective window
