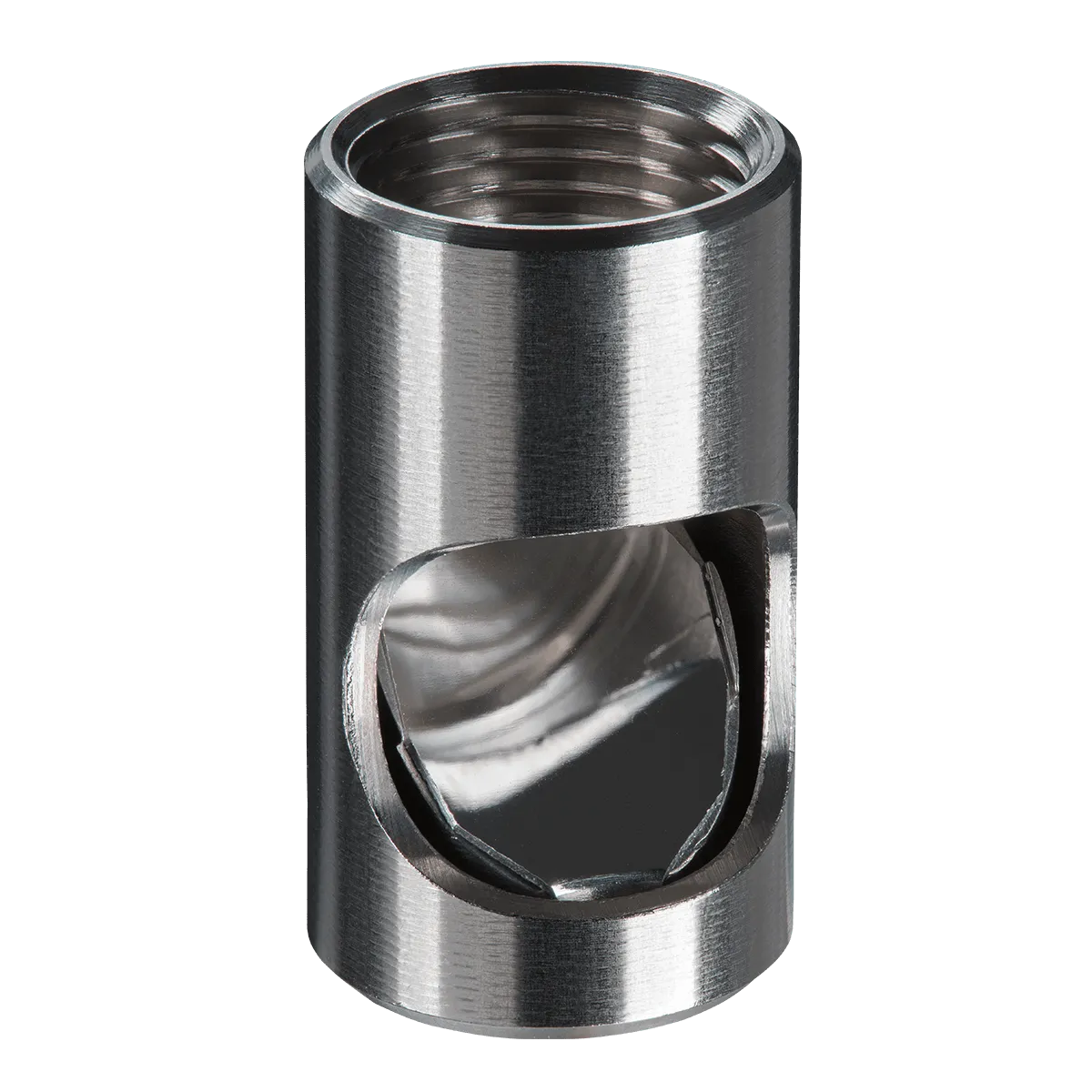

Right Angle Mirror for Measurements 90° to the Infrared Sensor Axis

The Right Angle Mirror for Optris infrared sensors enables 90° angle measurements. Essential for hard-to-reach or obstructed locations, it allows precise temperature monitoring without repositioning the sensor. Compatible with all Optris compact series sensors with an M12 thread and optical resolution ≥10:1, this accessory is invaluable in tight or awkward spaces, ensuring reliable non-contact temperature measurements in various industrial applications.

• Enables 90° angle measurements
• Ideal for obstructed locations and for tight spaces
• Compatible with Optris compact series

General Specification

Operating temperature: 0 °C to 150 °C (32 °F to 302 °F) (short time [24 h max.] up to 180 °C / 356 °F)
Storage temperature: 0 °C to 60°C (32 °F to 140 °F)
Material: Stainless steel
Size: ø14 x 25 mm (.55 x .98 in)
Thread for pyrometers: M12x1

What is the Right Angle Mirror used for?

It enables infrared sensors to perform 90° angle measurements.

Which sensors are compatible with the Right Angle Mirror?

It is compatible with Optris compact series infrared sensors, which feature the M12 thread and have an optical resolution of larger >10:1..

Why would I need a Right Angle Mirror?

It allows precise temperature monitoring in hard-to-reach or obstructed locations.

What else needs to be noted?

The mirrors must be checked and cleaned in a dusty environment, as a layer of dust could dampen the signal.

Can the accessory be used in outdoor environments?

The durable design suits indoor and outdoor industrial environments.

• 1x Right Angle Mirror for Measurements 90° to the Sensor Axis
