CTlaser 05M

The Optris CTlaser 05M series is an advanced infrared thermometer known for its high performance and precision in very high-temperature measurement applications, such as molten steel, tungsten, iron, nickel, and semiconductors. Featuring double laser spot marking, a stainless steel sensing head (M48x1.5), and separate configurable electronics, this pyrometer ensures adaptability and accuracy across various applications. Having a two-piece design allows for straightforward installation, facilitating cost-effective mechanical integration.

In terms of spectral range and optical resolution, the CTlaser 05M series operates at a specialized range of 0.525 µm, making the IR sensor a reliable choice for accurate temperature measurement in hot applications. The high optical resolution ranging of 150:1 depending on the model, is crucial for measuring temperatures of very hot, shiny materials with reduced sensitivity to emissivity variations.

Covering temperatures from 1000 °C to 2200 °C (1832 °F to 3992 °F), the series is suitable for extremely high-temperature environments. With response times starting from 1 ms, the CTlaser 05M series excels in dynamic processes requiring rapid temperature measurements.

The Optris CTlaser 05M stands out with its double laser aiming marks, which precisely indicate the real spot location at any distance, enhancing accuracy in temperature monitoring. Unlike conventional IR thermometers with single lasers that mark only the center of the spot, the CTlaser 05M’s innovative double laser sighting system provides valuable aiming support into the spot size and ensures accurate alignment.

Constructed with a stainless-steel sensing head and a two-piece design including a separate electronics box, the CTlaser 05M series offers durability and advanced signal processing capabilities. This infrared pyrometer can be used in ambient temperatures up to 85 °C (185 °F) without requiring cooling, with the laser automatically switching off at 50 °C (122 °F) to protect the system.

For output and integration, the CTlaser 05M series offers a wide array of analog and digital outputs, including 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, USB, Ethernet, RS485, RS232 interface, relay outputs (2 x optically isolated), Profibus DP, Modbus TCP, ProfiNet, and Ethernet/IP. This versatility allows for seamless integration into various industrial processes and monitoring systems.

Enhanced with Optris accessories such as air purging and mounting flanges, the CTlaser 05M pyrometer is designed for integration into a wide range of manufacturing and process applications. These pyrometers undergo meticulous calibration in Germany to meet government standards such as PTB or NIST, ensuring accuracy and reliability. Optris provides comprehensive support, including consultation on industrial applications and after-sales assistance, ensuring optimal performance and user satisfaction.

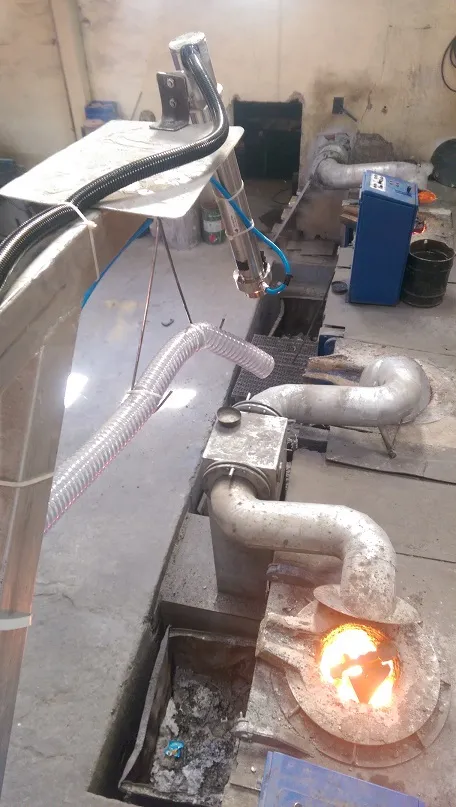

The CTlaser 05M series is particularly suited for hot metal processing and diverse industrial environments where precise, reliable, and fast temperature measurement is critical. With its combination of precision, versatility, and reliability, the CTlaser 05M pyrometer stands out as a valuable tool for demanding industrial applications.

The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities. Compact Connect The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

What distance-to-spot size ratio is correct for the application?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. To prevent measuring errors, the object should completely fill out the field of view of the optics. Consequently, the spot should always be at least the same size as the object or should be smaller than that.

Can I change the sensor cable?

The sensing head cable can also be exchanged if necessary. To avoid influences on the accuracy use an exchange cable with the same wire profiles and specification like the original one.

Can I pare the sensor head with another electronics box?

Yes, after exchanging a head the calibration code of the new head must be entered into the electronics. The calibration code is fixed on a label on the head. Do not remove this label or note the code. The code is needed if the electronic must be exchanged.

How far can I position the CTlaser05M from the target?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. The object should fill out the optics’ field of view to prevent measuring deviations. Consequently, the spot should always be at least the same size as the object or smaller. The spot size refers to 90% of the radiation energy.

How can I improve the noise amplitude of the sensor?

In the CT models, the head cable must not be moved during the measurement. Use shielded cables only. The sensor shield has to be grounded. Avoid ground loops and related signal interferences in industrial environments. It might be necessary to interrupt the ground connections inside the electronics box. To do this, switch the jumper inside the electronics box to another position. Review the manual.

How do I aim with a CTlaser 05M?

The infrared sensor has an integrated double laser aiming, which helps align the sensor. The measuring spot is located within the two laser points. At the focus point of the appropriate optics, both lasers cross and merge as one dot, marking the minimum spot. The two laser points are for orientation only.

Is the laser dangerous?

The pyrometers laser is a class 2 laser with less than 1mW in the wavelength range of 500 nm to 650 nm, according to EN 60825 1:2014. Do not point the laser directly at the eyes of persons or animals! Do not stare into the laser beam. Avoid indirect exposure via reflective surfaces.

The laser switched off?

At ambient temperatures 50 °C (122 °F) the laser will be switched off automatically. The laser should only be used for sighting and positioning of the sensor. A permanent use of the laser can reduce the lifetime of the laser diodes and might heat up the sensor.

Can I trigger the laser externally?

Yes, but the supply line for the sighting laser must be led via a switch or pushbutton, which has to be installed max 2 m (6.56 ft) away from installation site of the sensor for safety purposes. The laser can be activated/ deactivated via this, by the user on site to be installed switch, or via the software.

What is required to install the CTlaser infrared sensor in the CoolingJacket Advanced?

The connector version is needed to install the CTlaser sensor in the CoolingJacket Advanced.

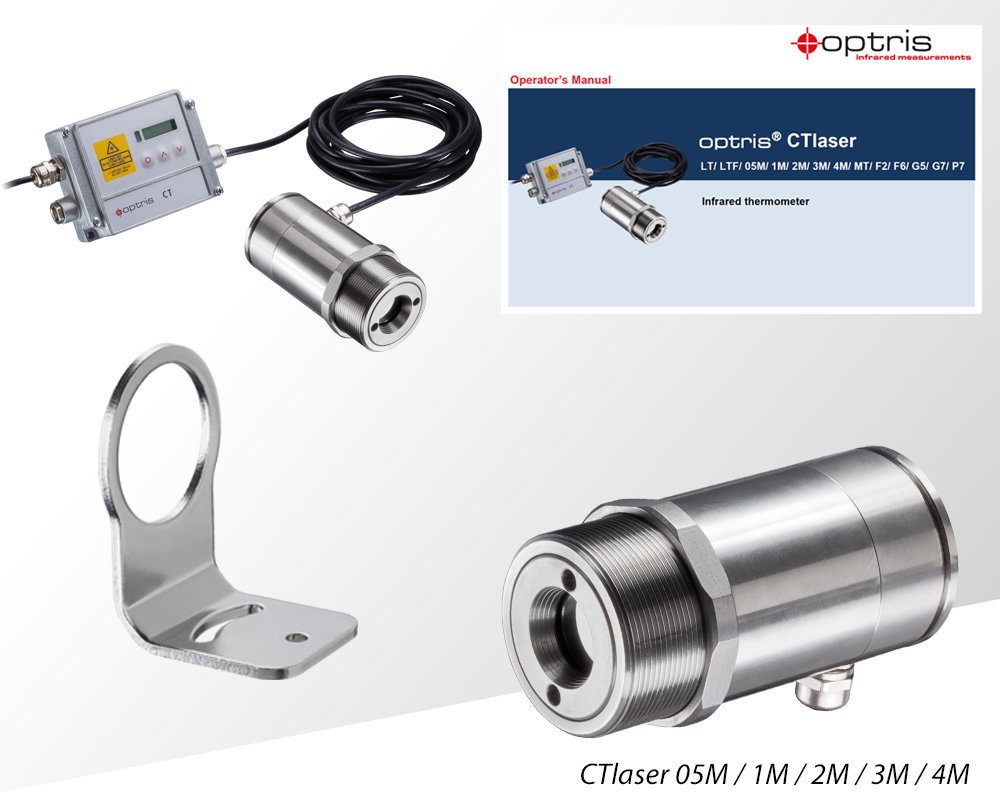

• CTlaser 05M with 3 m (9.8 ft) cable
• 1x mounting nut
• 1x mounting bracket
• CTlaser Manual
