CTlaser LT

The Optris CTlaser LT series is renowned for its high standard in non-contact temperature measurement, delivering precise accuracy and a wide temperature range. Characterized by a two-piece design, these pyrometers integrate an infrared sensor with a high optical resolution of 75:1. Their non-contact capability makes them ideal for monitoring industrial processes where physical contact with the object is impractical. These pyrometers are typically used in fixed installations, ensuring consistent and precise temperature measurements.

The CTlaser LT series offers a temperature range from -50 °C to 975 °C (-58 °F to 1787 °F), optimized for non-reflective surfaces, showcasing remarkable versatility in temperature measurement applications with a response time of up to 120 ms. These pyrometers are primarily utilized in industrial settings, research, and development, where small measurement spots are critical for precise temperature assessment. They provide various focus versions to accommodate diverse applications, including CF1: 0.9 mm at 70 mm (0.04-inch at 2.76-inches), CF2: 1.9 mm at 150 mm (0.075-inch at 5.91-inches), and CF3: 2.75 mm at 200mm (.11 in at 7.87 in).

The series ensures exceptional temperature measurement accuracy, with a system accuracy of ±1.0% or ±1.0 °C (±1.0% or ±1.8 °F), guaranteeing reliable and consistent readings. The infrared sensors repeatability stands at ±0.5% or ±0.5 °C (±0.5% or ±.9 °F), further reinforcing the reliability of the measurements.

A standout feature of the CTlaser LT series is its double laser aiming marks, which pinpoint the exact location of the measured spot and offer valuable insights into the spot size. This visual aid enhances accuracy in temperature monitoring, facilitates precise alignment, and minimizes measurement errors. The series employs an innovative double laser sighting system, unlike conventional IR thermometers with single lasers that only mark the center of the spot. The two laser beams follow the infrared optical path to indicate the spot’s position at any distance.

Each CTlaser LT pyrometer features a two-piece design, comprising a separate electronics box that delivers advanced signal processing capabilities. The online pyrometer offers a wide array of analog and digital outputs, including 0/4–20 mA, 0–5 V, 0–10 V, USB, Ethernet, RS485, RS232 interface, relay outputs (2 x optically isolated), Profibus DP, Modbus TCP, ProfiNet, and Ethernet/IP. This versatility facilitates seamless integration into many industrial processes and monitoring systems.

Enhanced with Optris accessories such as air purging and mounting flanges, the CTlaser LT pyrometer is designed for integration into various manufacturing and process applications. Manufactured and calibrated in Germany, these pyrometers adhere to government standards such as PTB or NIST. Customization options, such as different cable sizes, are available to meet specific requirements. Optris provides comprehensive support, including consultation on industrial applications and post-sales assistance, ensuring optimal performance and user satisfaction.

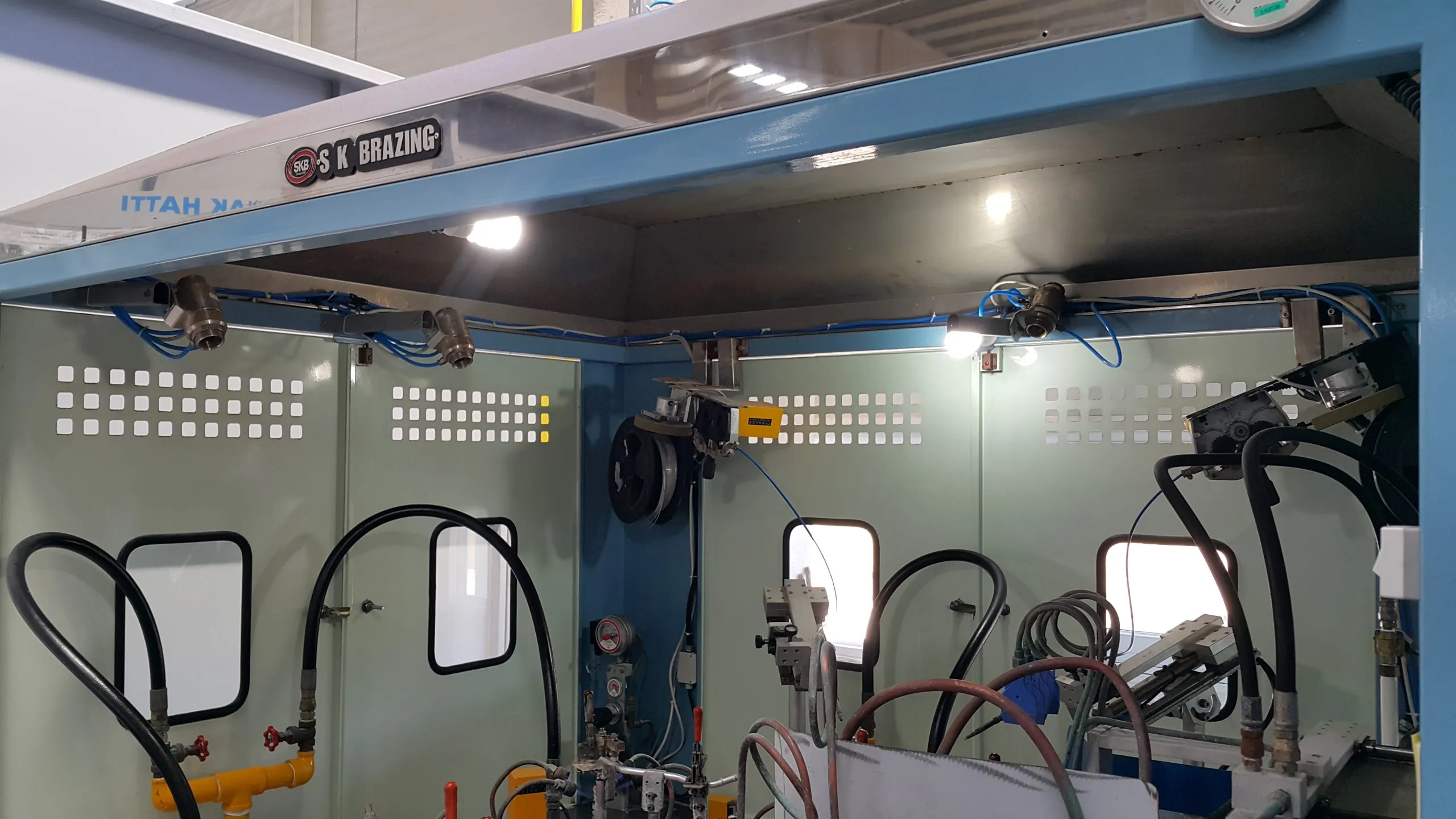

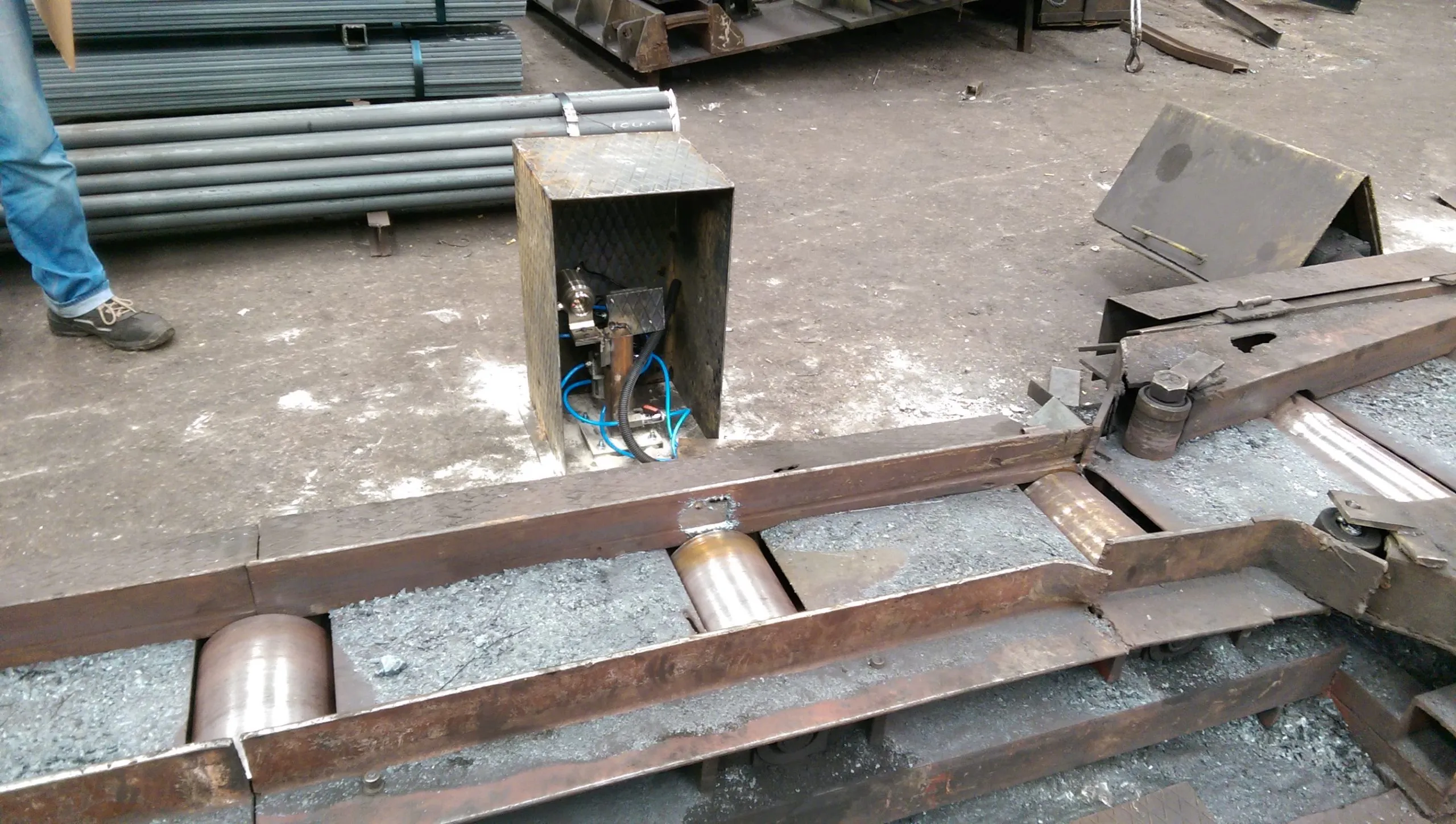

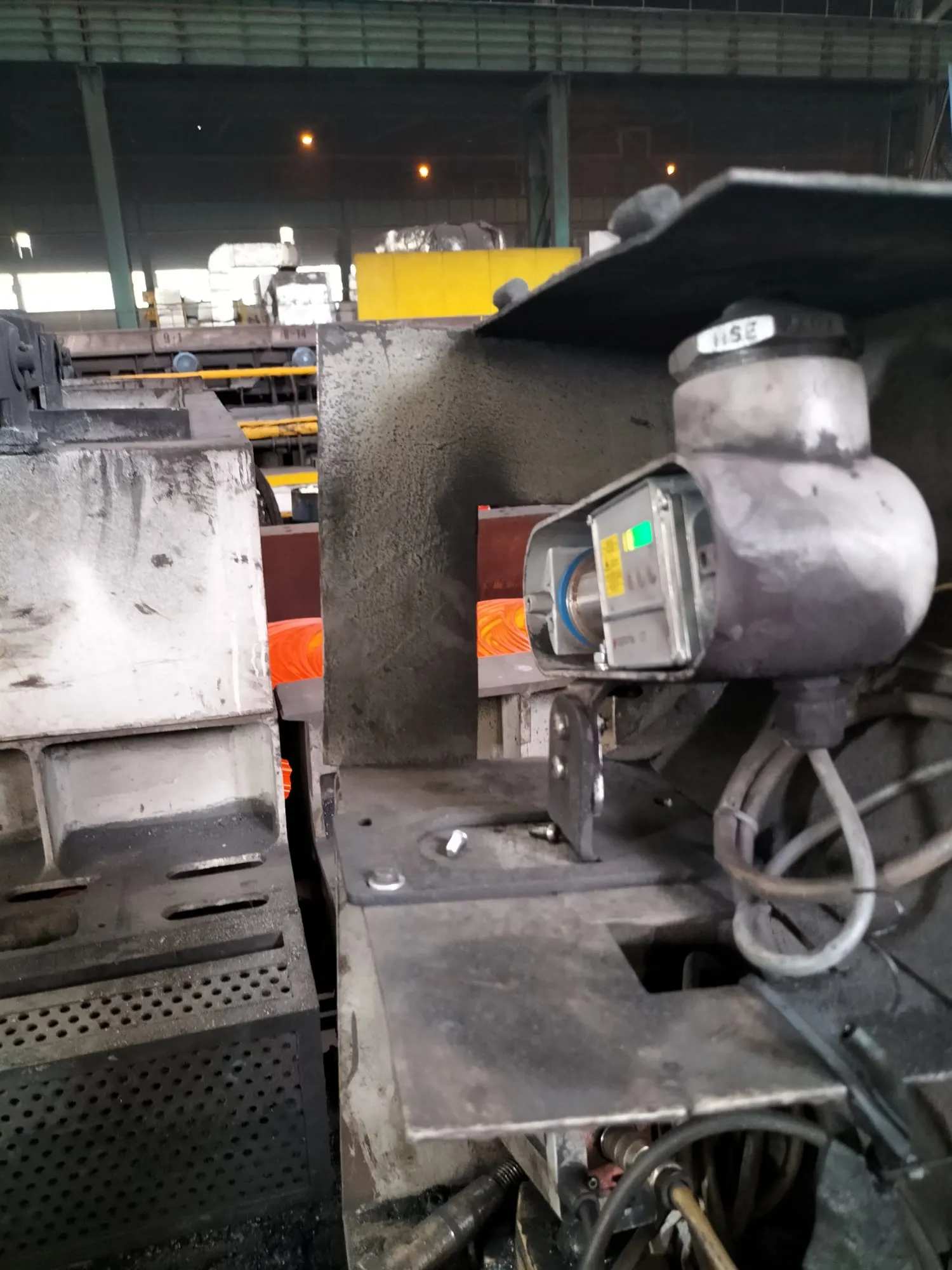

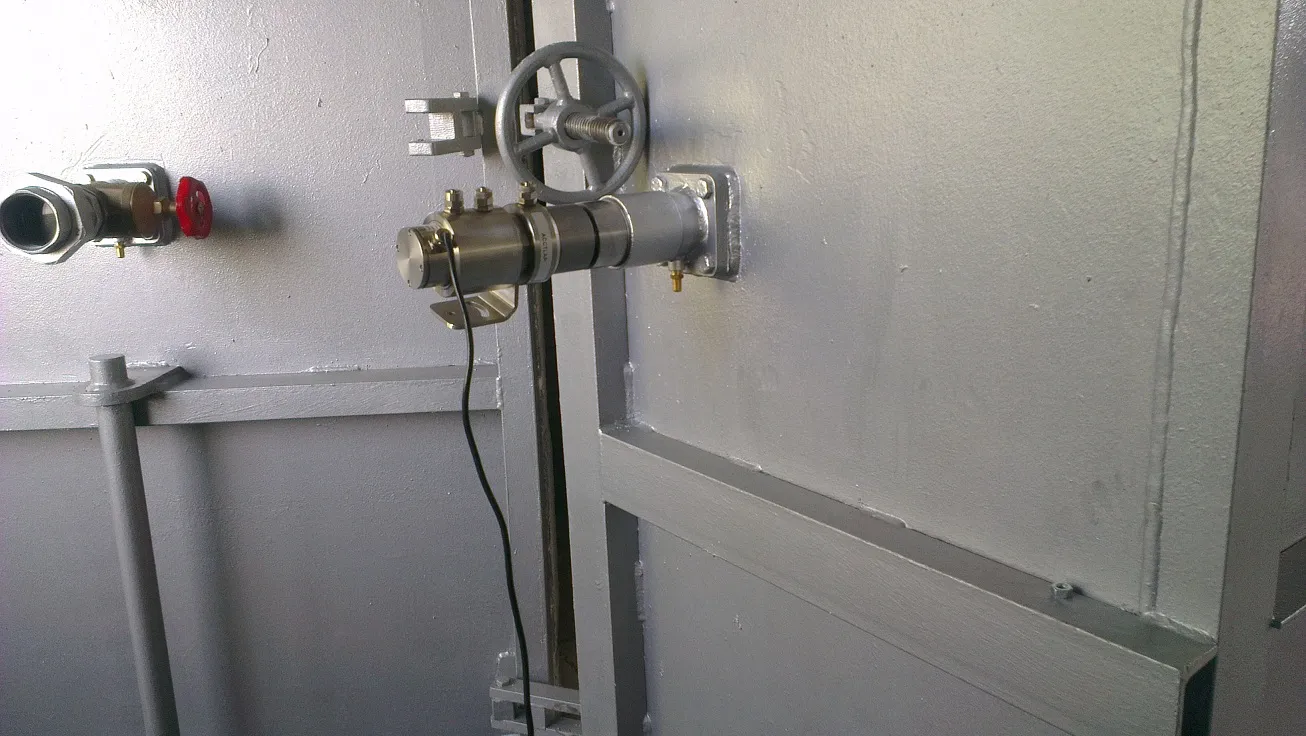

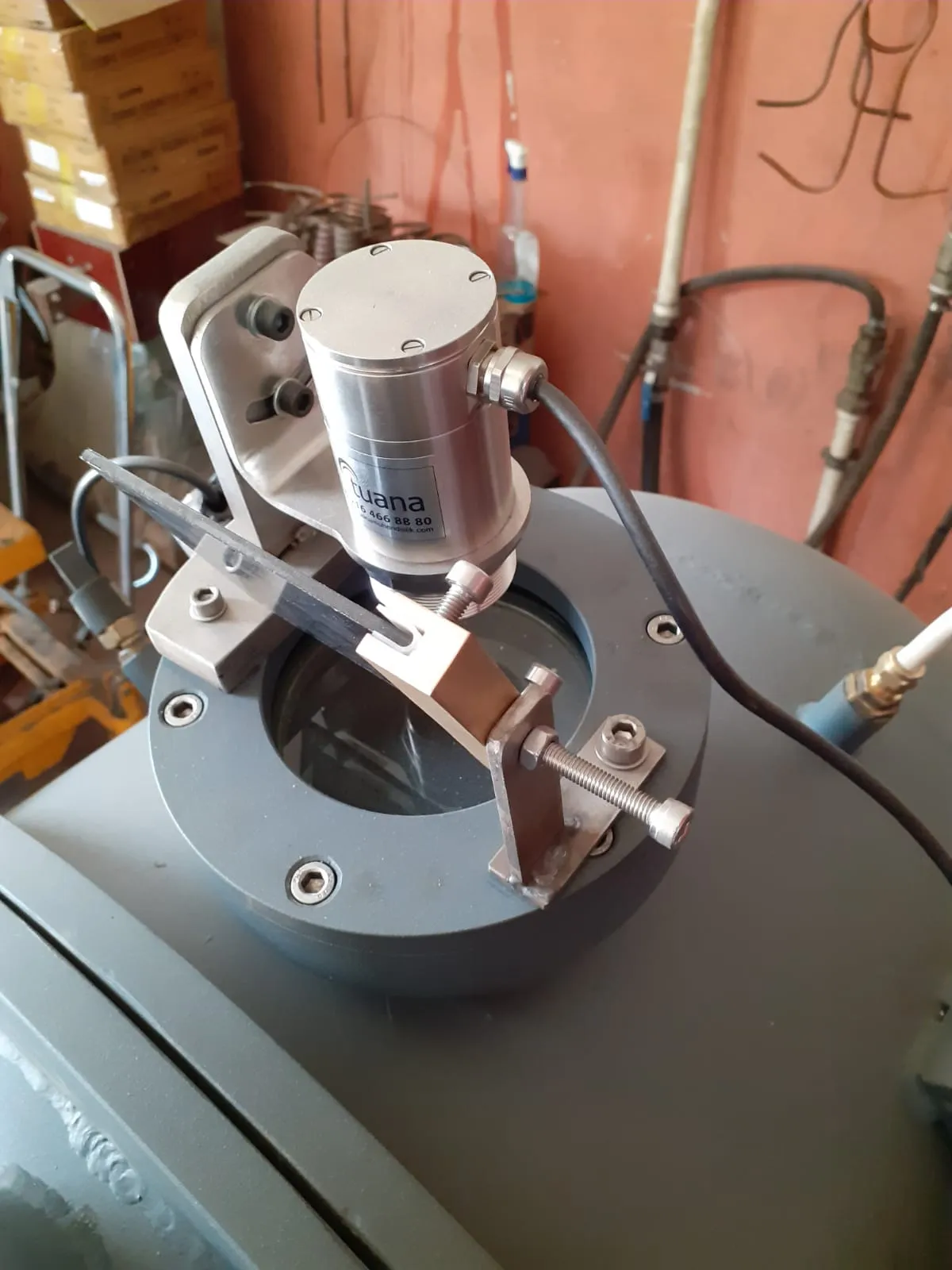

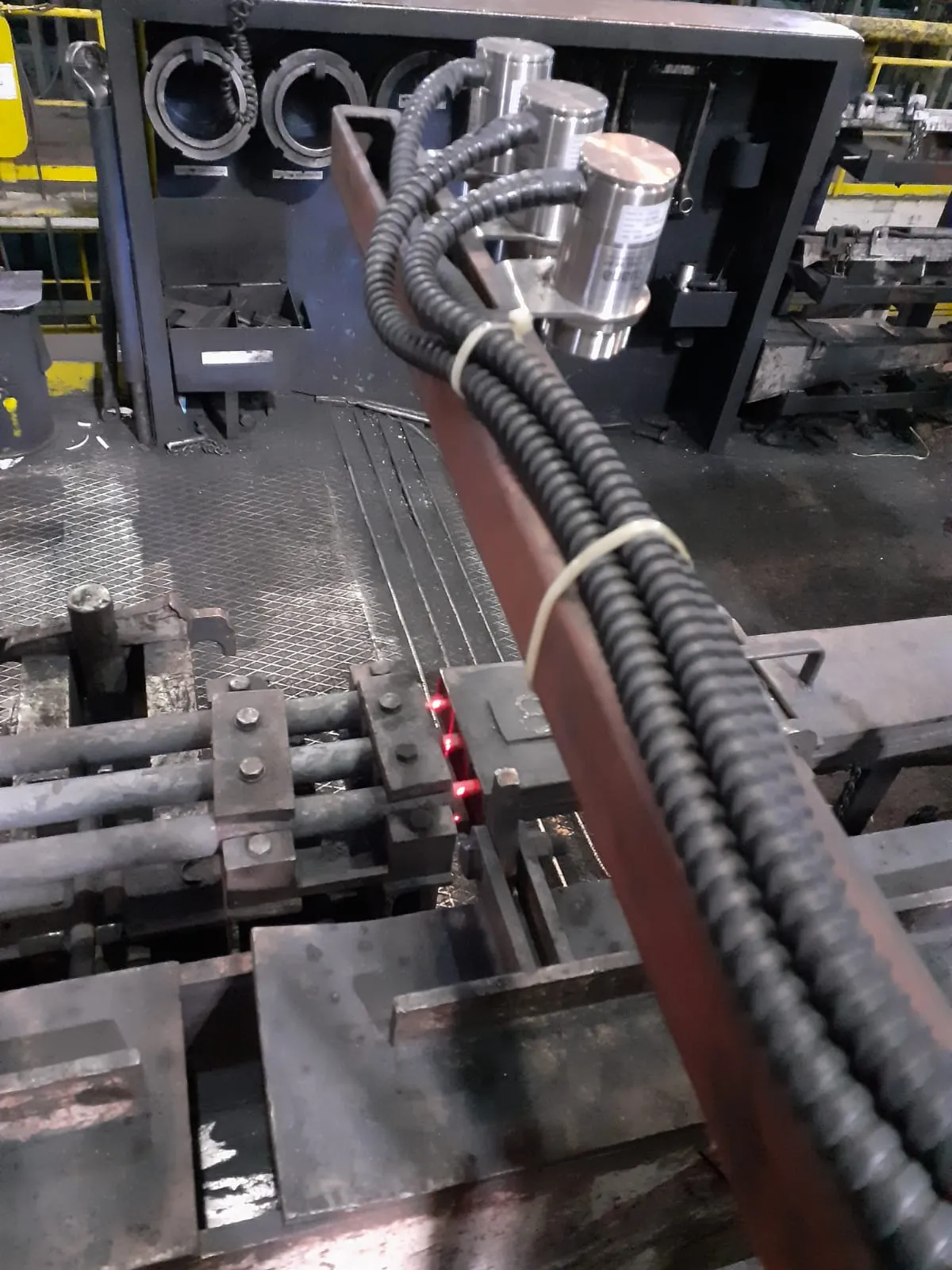

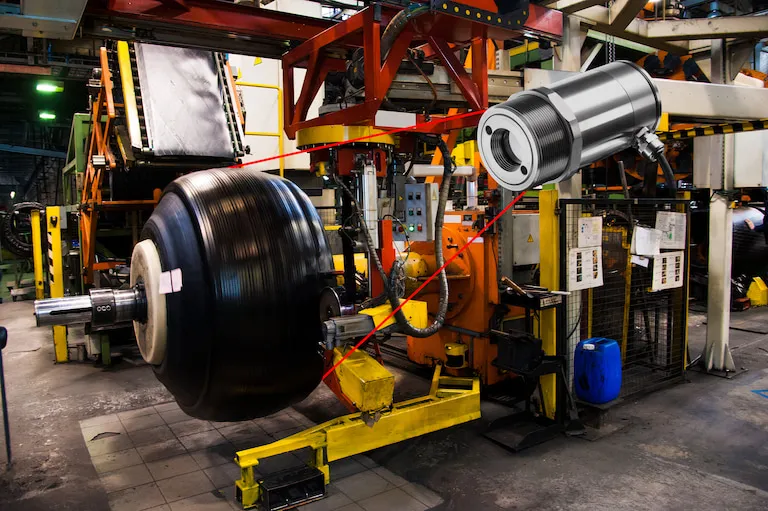

The two-part infrared thermometer Optris CTlaser LT has been designed for universal temperature measuring employments of up to 975 °C (1787 °F). Research and development facilities relying on valid measuring data as well as machine and system producers favor the use of this device. The high-performance laser of the pyrometer is perfectly suited for temperature measurement of non-metallic surfaces. Among others, this includes materials like plastics, varnishes, wood, or paper. The IR thermometer is employed for e.g. temperature control during welding of plastic components as well as in testing stations in the automobile industry.The CTlaser LTF, recognizing temperature changes within only 9 ms, has been designed for especially quick measurements and thus ensures a thorough temperature surveillance of fast processes.

The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities. Compact Connect The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

What distance-to-spot size ratio is correct for the application?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. To prevent measuring errors, the object should completely fill out the field of view of the optics. Consequently, the spot should always be at least the same size as the object or should be smaller than that.

Can I change the sensor cable?

The sensing head cable can also be exchanged if necessary. To avoid influences on the accuracy use an exchange cable with the same wire profiles and specification like the original one

Can I pare the sensor head with another electronics box?

Yes, after exchanging a head the calibration code of the new head must be entered into the electronics. The calibration code is fixed on a label on the head. Do not remove this label or note the code. The code is needed if the electronic must be exchanged.

How far can I position the CTlaser LT from the target?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. The object should fill out the optics’ field of view to prevent measuring deviations. Consequently, the spot should always be at least the same size as the object or smaller. The spot size refers to 90% of the radiation energy.

How can I improve the noise amplitude of the sensor?

In the CT models, the head cable must not be moved during the measurement. Use shielded cables only. The sensor shield has to be grounded. Avoid ground loops and related signal interferences in industrial environments. It might be necessary to interrupt the ground connections inside the electronics box. To do this, switch the jumper inside the electronics box to another position. Review the manual.

How do I aim with a CTlaser LT?

The infrared sensor has an integrated double laser aiming, which helps align the sensor. The measuring spot is located within the two laser points. At the focus point of the appropriate optics, both lasers cross and merge as one dot, marking the minimum spot. The two laser points are for orientation only.

Is the laser dangerous?

The pyrometers laser is a class 2 laser with less than 1mW in the wavelength range of 500 nm to 650nm, according to EN 60825 1:2014. Do not point the laser directly at the eyes of persons or animals! Do not stare into the laser beam. Avoid indirect exposure via reflective surfaces.

The laser switched off?

At ambient temperatures >50 °C (122 °F) the laser will be switched off automatically. The laser should only be used for sighting and positioning of the sensor. A permanent use of the laser can reduce the lifetime of the laser diodes and might heat up the sensor.

Can I trigger the laser externally?

Yes, but the supply line for the sighting laser must be led via a switch or pushbutton, which has to be installed max 2m away from installation site of the sensor for safety purposes. The laser can be activated/ deactivated via this, by the user on site to be installed switch, or via the software.

What is required to install the CTlaser infrared sensor in the CoolingJacket Advanced?

The connector version is needed to install the CTlaser sensor in the CoolingJacket Advanced.

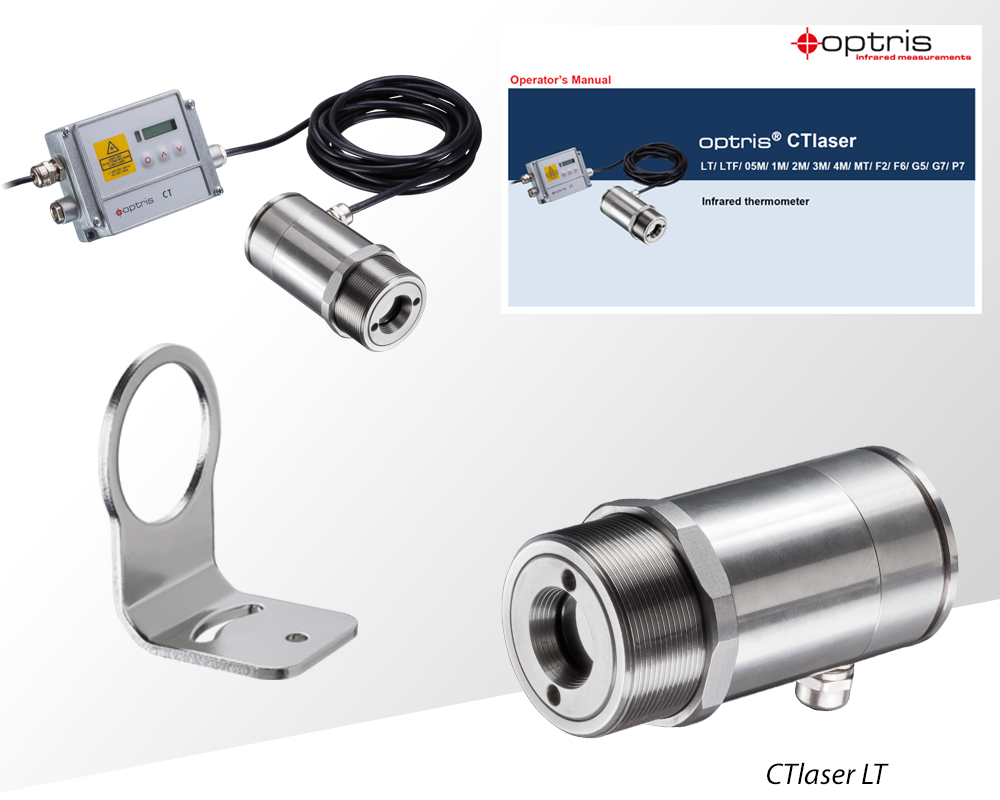

• CTlaser LT with 3 m (9.8 ft) cable
• 1x mounting nut
• 1x mounting bracket
• CTlaser Manual
