CTlaser P7

The Optris CTlaser P7 pyrometer is designed for precise non-contact temperature measurement of thin plastic materials, covering a broad range from 0 °C to 710 °C (32 °F to 1310 °F). The pyrometers specialized spectral region of 7.9 µm enables accurate readings for thin plastic materials, making it particularly suitable for applications requiring temperature control while producing thin plastic foils.

Featuring a measuring head capable of withstanding temperatures up to 85 °C (185 °F) without additional cooling, the CTlaser P7 ensures reliable performance in industrial environments. Its measuring wavelength of 7.9 µm, coupled with a rapid response time of 150 ms, enhances efficiency in temperature monitoring during various manufacturing processes.

Emissivity, a critical factor in temperature measurement accuracy, is carefully addressed in the CTlaser P7’s design. While plastics with a thickness greater than 0.4 mm (.016 in) and pigmented films exhibit high emissivity in the long-wave LT spectral range (8 µm – 14 µm), very thin plastic films pose a challenge due to their transparency. To overcome this, the CTlaser P7 leverages material-specific absorption bands in the IR spectrum, employing narrowband sensitive IR sensors for precise temperature measurement.

Materials such as Fluoroplastic (FEP), Polyimide (PI), Acrylic (PMMA), Polycarbonate (PC), Polyester (PET), and Polyvinyl chloride (PVC or Vinyl) demonstrate the desired properties at 7.9 μm, enabling easy measurement with the CTlaser P7.

A distinguishing feature of the CTlaser P7 series is its double laser aiming marks, which provide precise aiming support and minimize alignment errors. This innovative system utilizes two laser beams to trace the infrared optical path and accurately indicate the spot’s position and size, regardless of distance.

The CTlaser P7 pyrometer adopts a two-piece design with a separate electronics box, delivering advanced signal processing capabilities. Offering a wide range of analog and digital outputs, infrared sensor ensures seamless integration into various industrial processes and control systems.

Enhanced with Optris accessories such as air purging and mounting flanges, the CTlaser P7 is designed for integration into diverse manufacturing and process applications. Manufactured and calibrated in Germany, these pyrometers undergo meticulous calibration to meet government standards such as PTB or NIST. Customization options, such as different cable sizes, cater to specific requirements.

Optris provides comprehensive support for the CTlaser P7 series, including consultation on industrial applications and post-sales assistance, ensuring optimal performance and user satisfaction. With its precision, versatility, and reliability, the CTlaser P7 is a valuable tool for temperature measurement in various industrial environments.

The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities. Compact Connect The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

What distance-to-spot size ratio is correct for the application?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. To prevent measuring errors, the object should completely fill out the field of view of the optics. Consequently, the spot should always be at least the same size as the object or should be smaller than that.

Can I change the sensor cable?

The sensing head cable can also be exchanged if necessary. To avoid influences on the accuracy, use an exchange cable with the same wire profiles and specification like the original one

Can I pare the sensor head with another electronics box?

Yes, after exchanging a head the calibration code of the new head must be entered into the electronics. The calibration code is fixed on a label on the head. Do not remove this label or note the code. The code is needed if the electronic must be exchanged.

How far can I position the CTlaser P7 from the target?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. The object should fill out the optics’ field of view to prevent measuring deviations. Consequently, the spot should always be at least the same size as the object or smaller. The spot size refers to 90% of the radiation energy.

How can I improve the noise amplitude of the sensor?

In the CT models, the head cable must not be moved during the measurement. Use shielded cables only. The sensor shield has to be grounded. Avoid ground loops and related signal interferences in industrial environments. It might be necessary to interrupt the ground connections inside the electronics box. To do this, switch the jumper inside the electronics box to another position. Review the manual.

How do I aim with a CTlaser P7?

The infrared sensor has an integrated double laser aiming, which helps align the sensor. The measuring spot is located within the two laser points. At the focus point of the appropriate optics, both lasers cross and merge as one dot, marking the minimum spot. The two laser points are for orientation only.

Is the laser dangerous?

The pyrometers laser is a class 2 laser with less than 1mW in the wavelength range of 500 nm to 650nm, according to EN 60825 1:2014. Do not point the laser directly at the eyes of persons or animals! Do not stare into the laser beam. Avoid indirect exposure via reflective surfaces.

The laser switched off?

At ambient temperatures >50 °C (122°F) the laser will be switched off automatically. The laser should only be used for sighting and positioning of the sensor. A permanent use of the laser can reduce the lifetime of the laser diodes and might heat up the sensor.

Can I trigger the laser externally?

Yes, but the supply line for the sighting laser must be led via a switch or pushbutton, which has to be installed max 2 m (6.6 ft) away from installation site of the sensor for safety purposes. The laser can be activated/ deactivated via this, by the user on site to be installed switch, or via the software.

What is required to install the CTlaser infrared sensor in the CoolingJacket Advanced?

The connector version is needed to install the CTlaser sensor in the CoolingJacket Advanced.

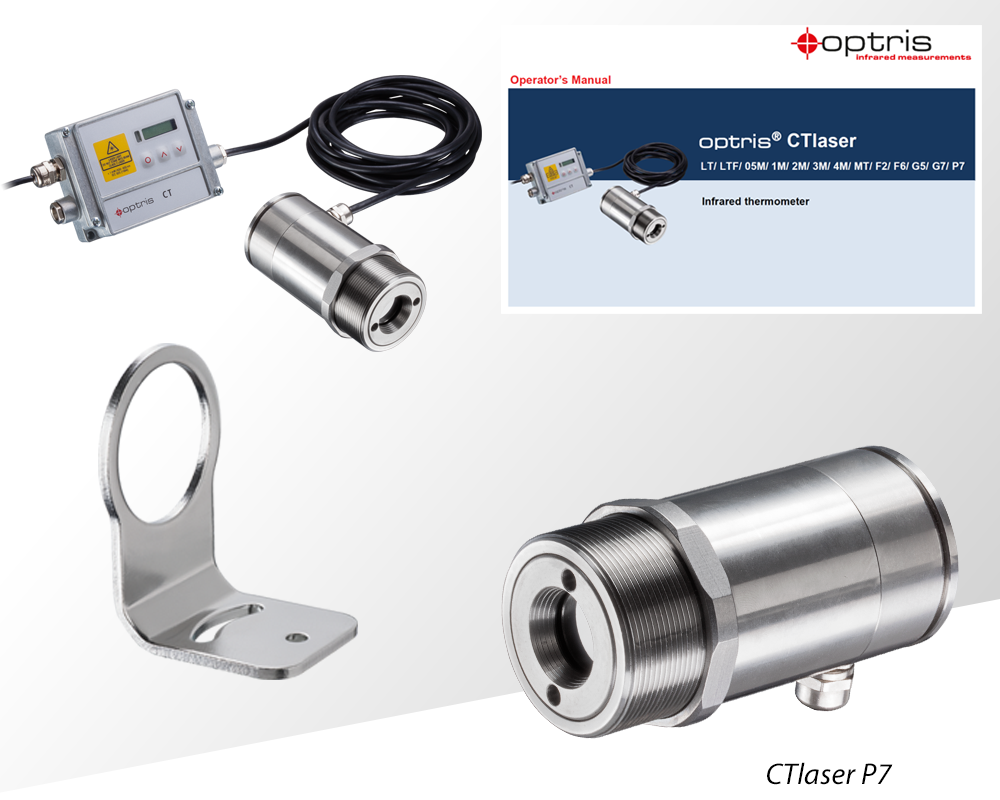

• CTlaser P7 with 3 m (9.8 ft) cable
• 1x mounting nut
• 1x mounting bracket
• CTlaser Manual
