Infrared Thermometer

An infrared thermometer (IR Thermometer), often referred to as a pyrometer, is a device used to measure the temperature of an object without physically touching it. This makes it very useful in many industrial settings where non-contact temperature measurement is important. Pyrometers are commonly used in industries like metallurgy, glass production, semiconductor manufacturing, and mechanical systems monitoring.

Infrared thermometers work by detecting the infrared radiation emitted by an object. Any object with a temperature above absolute zero gives off infrared radiation, which is a type of electromagnetic radiation that is invisible to the human eye but can be detected by special sensors.

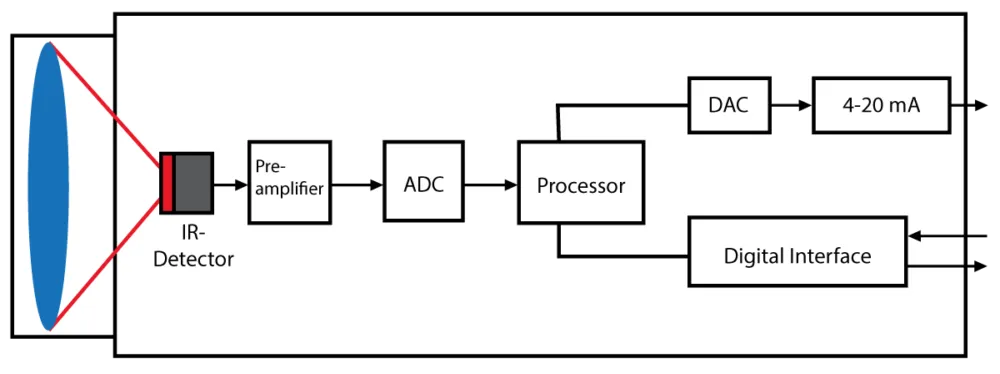

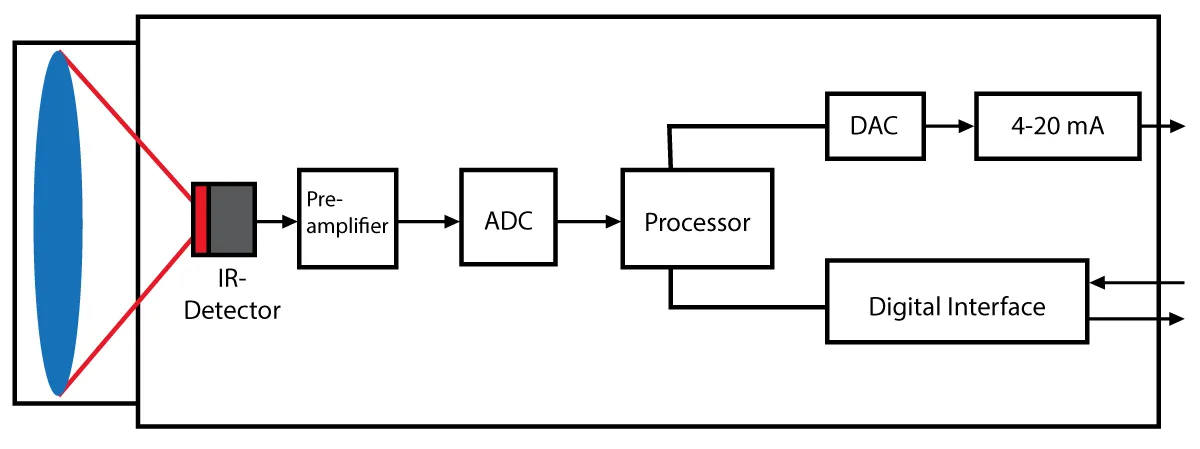

All pyrometers have three main parts: an optical system, a detector, and electronics. When you aim the pyrometer at an object to measure its surface temperature, the optical system captures the energy emitted by the object and focuses it on the detector, which is very sensitive to the infrared wavelength. Depending on the infrared wavelength spectrum, the sensor detectors may use different technologies, such as thermopiles, pyroelectric detectors, or infrared photodetectors. The electrical signal of the detector depends on the temperature of the focused object, its surrounding temperature, and its sensitivity. The weak electrical signal is amplified and converted to digital form by the IR thermometer electronics. The digital data is continually adjusted using calibration data. Then the temperature values are displayed, and depending on the interfaces, further signal processing is done for analog or digital outputs.

IR pyrometers are available in different spectral ranges, measurement ranges, speeds, sensitivities, and resolutions at different prices. Different models can be selected for different applications depending on their performance. This guide will help you identify and select the most suitable pyrometer for your specific application.

The main advantage of IR thermometers is their ability to measure temperature from a distance, which is important in situations where direct contact is not possible or safe. IR thermometers provide quick, accurate readings and can monitor moving objects or surfaces without any interference. However, their accuracy can be affected by factors such as variations in emissivity, reflections, and environmental conditions. Proper calibration and understanding of the material properties are necessary to get reliable measurements.
