Isotherm

Isotherms in infrared imaging are used to highlight specific temperature ranges within an image by changing colors, making temperature variations easily distinguishable. This feature is particularly useful in identifying objects with known temperatures against backgrounds of differing temperatures or in highlighting areas that exceed a certain temperature threshold. By assigning different colors to particular temperature ranges, isotherms provide a clear visual representation of thermal patterns and anomalies.

The isotherm feature is available only on radiometric cameras, which are capable of providing precise temperature measurements across the entire image. These cameras not only capture the thermal image but also provide detailed temperature data for each pixel, allowing for accurate and meaningful application of isotherms. The accuracy of the isotherm feature is directly tied to the temperature measurement accuracy of the camera, ensuring that the highlighted temperature ranges are reliable and precise.

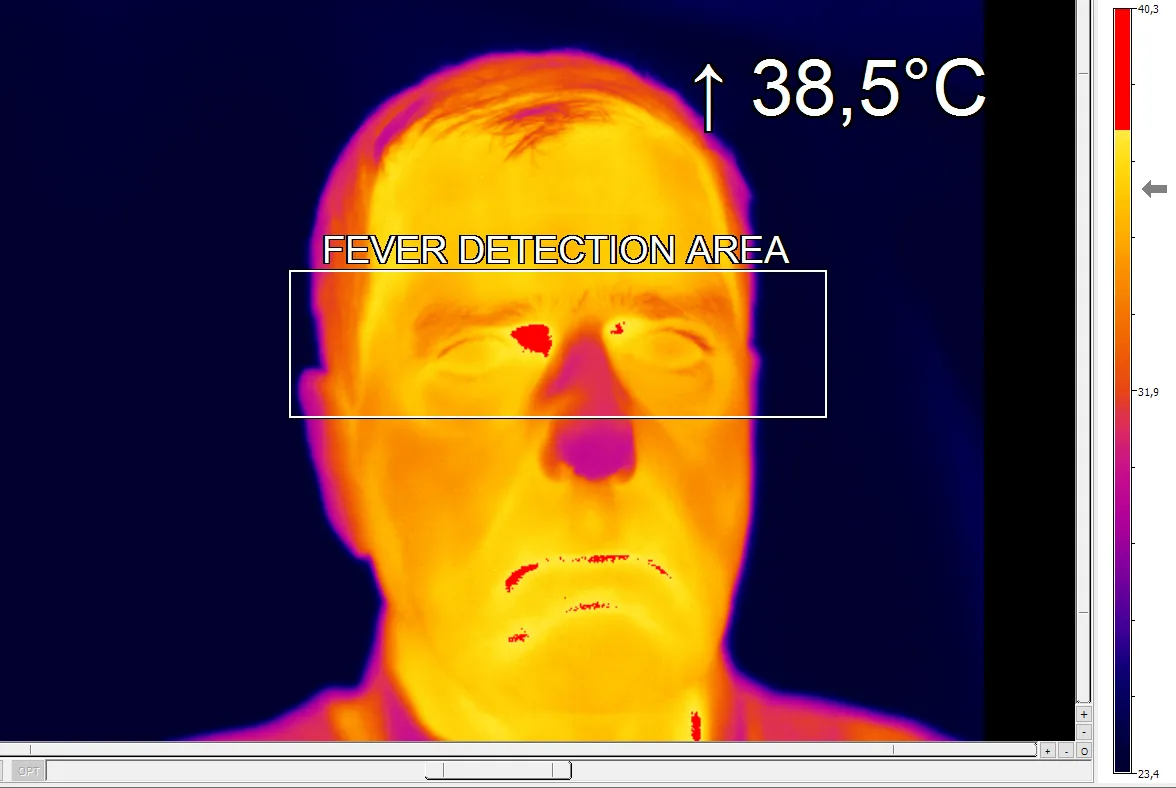

Using isotherms, operators can quickly and effectively analyze thermal images, making it easier to locate objects or areas of interest based on their thermal properties. For example, in industrial inspections, isotherms can help identify overheating components against cooler backgrounds, facilitating preventive maintenance. In medical diagnostics, isotherms can highlight abnormal temperature zones in a patient’s body, aiding in early detection of health issues.
