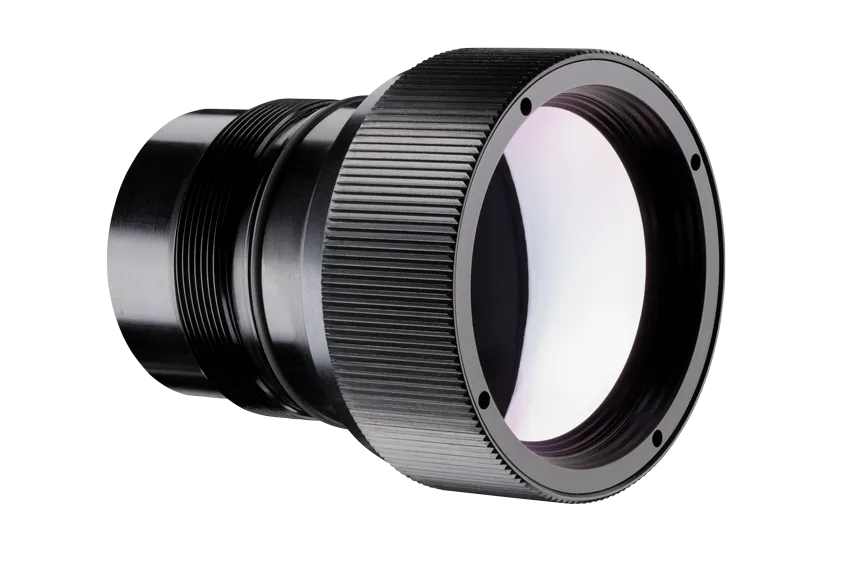

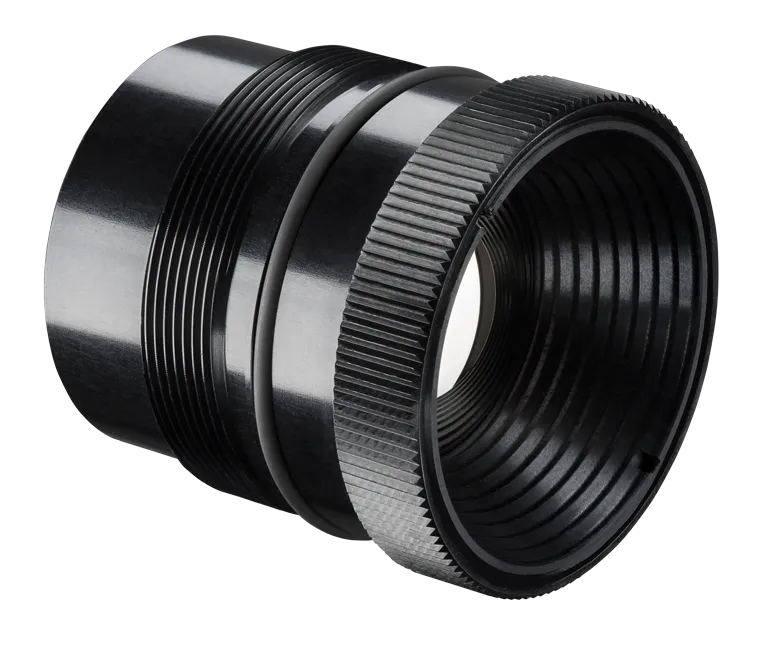

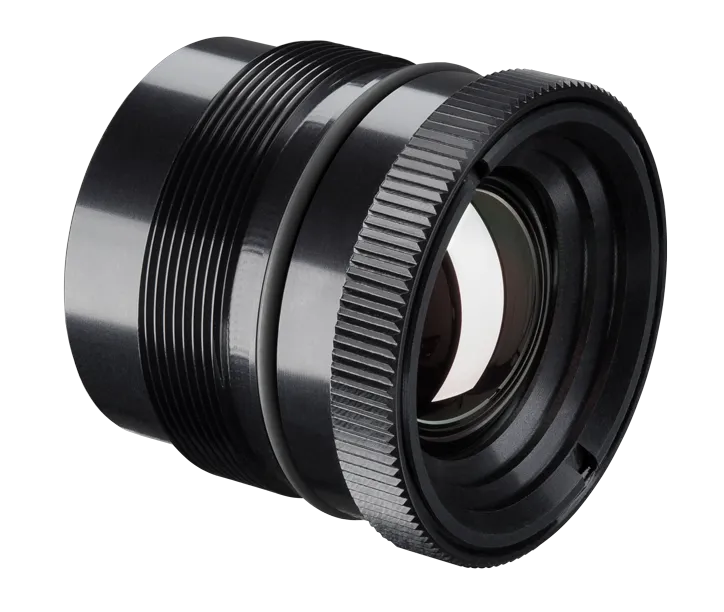

Exchangeable lens for PI 1M

The Optris PI 1M is a short-wavelength infrared camera ideal for industrial applications, especially in the metals industry. Its range of exchangeable lenses, from 9° to 41° field of view, allows precise customization. The PI series offers excellent optics quality with a small Minimum Field of View (MFOV), ensuring high precision and clarity in temperature measurements up to 1800 °C.

• Lens options ranging from 9° to 41° field of view
• Superior optical design allows small MFOV and High Distance-to-Spot Ratios
• Calibration included

Should I ship in the PI 1M if a new replacement optic is ordered?

Yes, the IR camera must be shipped as it is calibrated with the lens. The calibration files need to be updated.

Can I order multiple lenses for the PI 1M order?

By default, the camera can be equipped with various types of lenses. Each lens will be calibrated with the PI 1M IR camera.

What must I do when I exchange the lens on the same IR camera?

To select the appropriate optics based on the camera configuration, navigate to the Tools menu, then to Configuration, and finally to Device. If multiple Addition lenses are included with the camera order, use this menu to choose the currently used optics.

• 1x PI 1M lens
