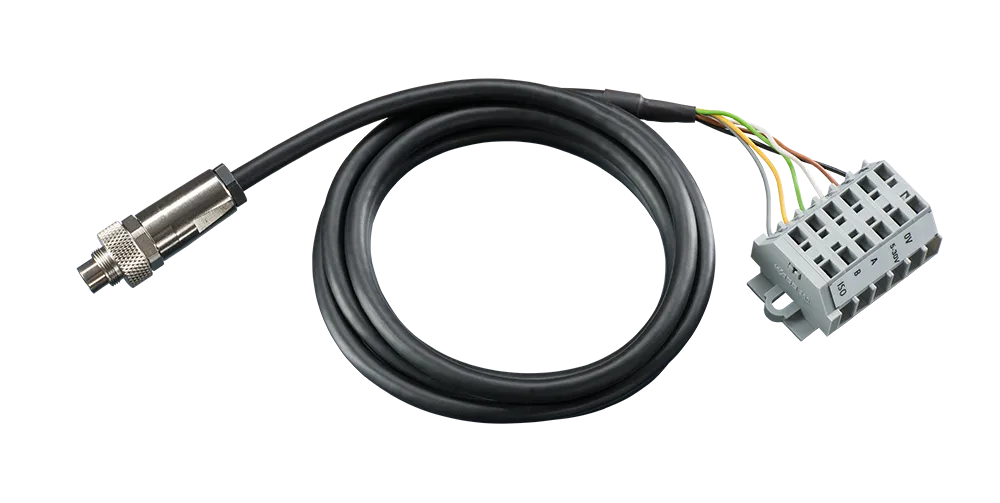

Standard Process Interface Cable for Xi 80 / Xi 410 / Xi 1M

The Standard Process Interface cable is essential for advanced industrial applications with Ethernet-based Xi models. It integrates with process control systems, offering robust analog (0-10 V in, 0/4-20 mA out) and digital I/O capabilities. Programmable via PIX Connect software, it supports RS485 communication for reliable data transmission up to 500 meters. Featuring integrated electronics and a terminal block, optional versions withstand temperatures up to 250°C.

• I/O-cable for Ethernet-based Xi infrared cameras
• Analog and digital inputs and outputs
• 0-10 V for analog input
• 0/4-20 mA for analog output
• Supports RS485 serial communication
• Includes terminal block

General Specifications

Environmental rating: IP67 (Nema-4)
Operating temperature: 0 °C … 85 °C (High temperature version up to 250 °C)
Storage temperature: 0 °C … 85 °C
Relative humidity: 10 – 95 %, non-condensing
Jacket Material: PVC (Polyvinyl Chloride)
Color: black
Cable length: 5 m (standard), optional 10 m

Interface Specifications

Cable Type: I/O
Connector 1: Terminal block with 5 outlets
Connector 2: Optris 5-pin cable plug

Color Coding:
Ground: Brown
Digital Input: Gray
Power: White
Analog Input: Green
Analog Output: Yellow

Electrical Parameters

Power supply: 5 … 24 VDC
Outputs: 1x analog / alarm output
Inputs: 1x analog input,1x digital input
Ranges:
0/4-20 mA (for AI)
0 – 10 V (for AO)
24 V (for DI)

Programmable Features

Analog inputs:
• Emissivity setting
• Ambient temperature compensation
• Reference temperature
• Uncommitted value
• Flag control
• Triggered snapshots, triggered recording, triggered line scan camera, triggered event grabber
• Reset peak-/valley-hold

Digital input:
• Flag control
• Triggered snapshots, triggered recording, triggered line scan camera, triggered event grabber
• Reset peak-/valley-hold

Analog outputs:
• Main measure area
• Measure area
• Internal temperature
• Flag status
• Alarm
• External communication
• Center pixel (direct output)

What is the difference between the standard PIF and the industrial process interface?

The industrial process interface offers enhanced features such as 500 VAC isolation, multiple analog and digital inputs/outputs, and fail-safe mechanisms for monitoring various conditions. In contrast, the standard process interface has basic functionality with fewer input/output options.

What is the Standard Process Interface (PIF) cable?

The Standard PIF cable is a specialized cable designed for advanced industrial applications, providing robust analog and digital input/output capabilities for Ethernet-based Xi models.

What types of signals does the PIF cable support?

The PIF cable supports 0-10 V for analog inputs and 0/4-20 mA for analog outputs, offering versatile signal handling for various industrial applications.

Which Xi series infrared cameras are compatible with these USB cables?

These cables are compatible with Xi 80, Xi 410 LT, Xi 410 MT, and Xi 1M infrared cameras.

Will this cable fit with the PI series or the Xi400 and Xi 640?

No, the PI series and the Xi 400 and Xi 640 infrared cameras have different pinouts.

Can I use these cables for applications other than infrared cameras?

It’s important to note that these cables are specifically designed for Optris Xi series infrared cameras and may not be suitable for other applications due to their unique specifications.

How is the PIF cable programmed?

The PIF cable can be programmed using the PIX Connect software, allowing easy integration and customization within process control systems.

Does the PIF cable support RS485 communication?

Yes, the PIF cable supports RS485 communication. Please review the manual for instructions.

Can the PIF cable operate in high-temperature environments?

Yes, optional versions of the PIF cable that can withstand ambient temperatures up to 250°C are available.

How do I connect the PIF cable to my Xi model?

The PIF cable features integrated electronics and a terminal block for easy and secure connectivity to Xi models. The device’s manual provides detailed installation instructions.

What is the purpose of the integrated electronics in the PIF cable?

The integrated electronics in the PIF cable ensure reliable signal processing and communication, enhancing the precision and efficiency of control and monitoring in industrial applications.

Where can I find additional support and documentation for the PIF cable?

The product manual and the PIX Connect software provide additional support and detailed documentation. You can also contact the manufacturer’s customer support for assistance.
