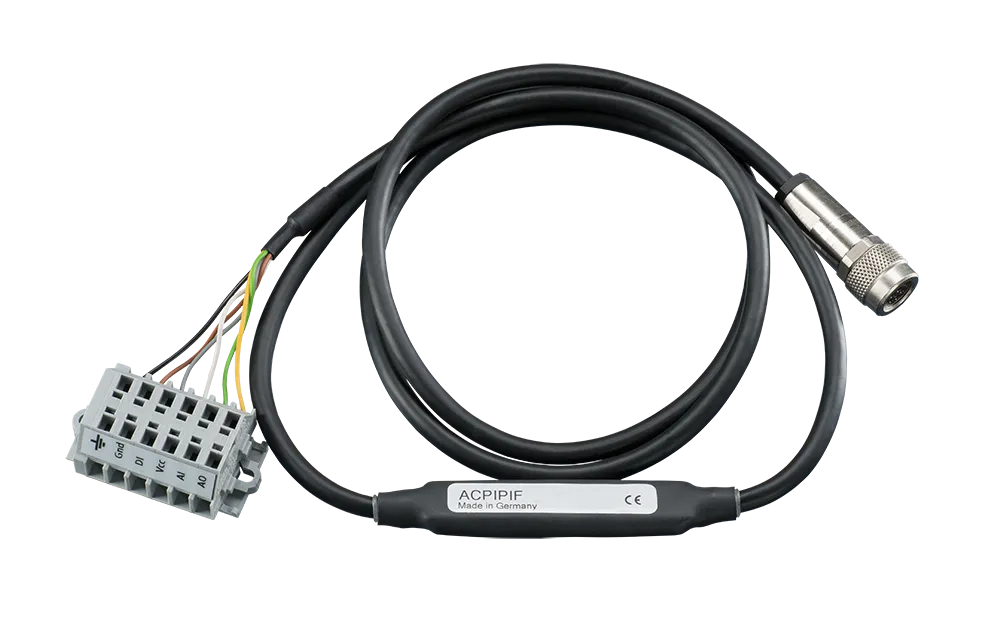

Standard Process Interface for PI series, Xi 400 and Xi 640

This Standard Process Interface (PIF) cable is crucial for advanced industrial applications with USB-native infrared cameras. It integrates with process control systems, providing analog and digital I/O capabilities. Programmable via PIX Connect software, it supports 0-10 V for analog inputs and outputs. The 1m cable includes integrated electronics and a terminal block for precise control and monitoring.

General Specifications

• Operating temperature: 0 °C … 85 °C
• Storage temperature: 0 °C … 85 °C
• Relative humidity: 10 – 95 %, non-condensing
• Jacket Material: PVC (Polyvinyl Chloride)
• Color: black
• Cable length: 1 m

Interface Specifications

• Cable Type: I/O
• Connector 1: Terminal block with 5 outlets
• Connector 2: Optris 5-pin cable plug

• Color Coding:
  • Ground: Brown
  • Digital Input: Gray
  • Power: White
  • Analog Input: Green
  • Analog Output: Yellow

Electrical Parameters

• Power supply: 5 … 24 VDC
• Outputs: 1x analog/alarm output
• Inputs: 1x analog input,1x digital input
• Ranges:
  • 0-10 V (for AI)
  • 0-10 V (for AO)
  • 24 V (for DI)

Programmable Features

Analog inputs:

• Emissivity setting
• Ambient temperature compensation
• Reference temperature
• Uncommitted value
• Flag control
• Triggered snapshots, triggered recording, triggered line scan camera, triggered event grabber
• Reset peak-/valley-hold

Digital input:

• Flag control
• Triggered snapshots, triggered recording, triggered line scan camera, triggered event grabber
• Reset peak-/valley-hold

Analog outputs:

• Main measure area
• Measure area
• Internal temperature
• Flag status
• Alarm
• External communication
• Center pixel (direct output)

What is the difference between the standard PIF and the industrial process interface?

The industrial process interface offers enhanced features such as 500 VAC isolation, multiple analog and digital inputs/outputs, and fail-safe mechanisms for monitoring various conditions. In contrast, the standard process interface has basic functionality with fewer input/output options.

What is the Standard Process Interface (PIF) cable?

The Standard PIF cable is a specialized cable designed for advanced industrial applications, providing robust analog and digital input/output capabilities for Ethernet-based Xi models.

What types of signals does the PIF cable support?

The PIF cable supports 0-10 V for the analog input, 24 V for the digital input and 0-10 V for analog or alarm output, offering versatile signal handling for various industrial applications.

Which infrared cameras are compatible with these USB cables?

These cables are compatible with PI series and Xi400 and Xi 640 infrared cameras.

Can I use these cables for applications other than infrared cameras?

It’s important to note that these cables are specifically designed for Optris USB-nativeinfrared cameras and may not be suitable for other applications due to their unique specifications.

How is the PIF cable programmed?

The PIF cable can be programmed using the PIX Connect software, allowing easy integration and customization within process control systems.

Where can I find additional support and documentation for the PIF cable?

The product manual and the PIX Connect software provide additional support and detailed documentation. You can also contact the manufacturer’s customer support for assistance.

• I/O-cable incl. terminal block
