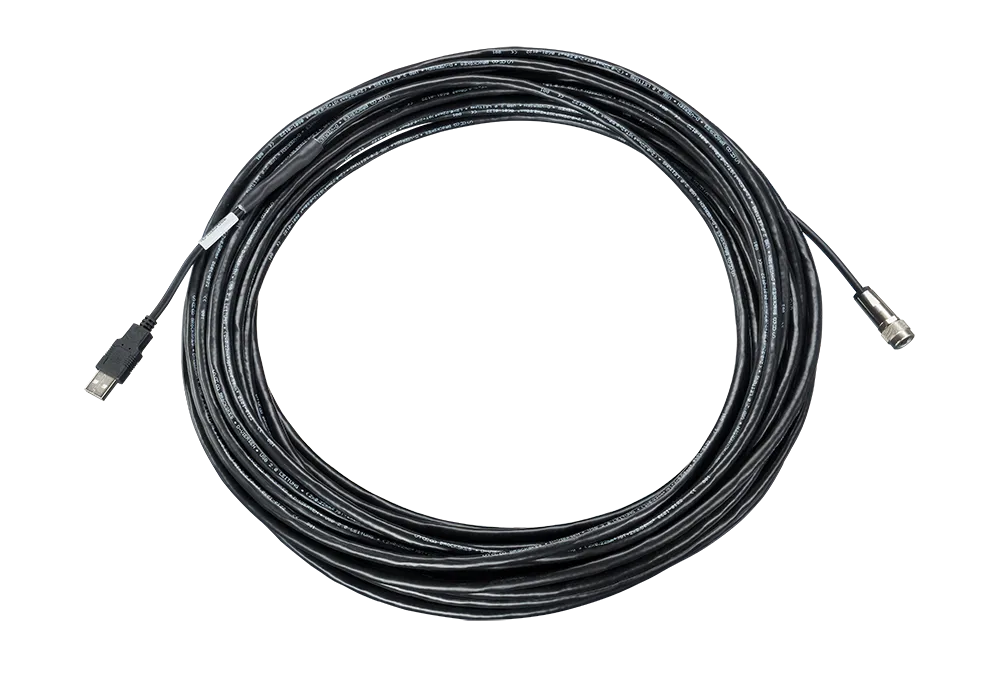

USB Connection Cable

Optris offers USB cables for its infrared cameras, featuring 4-pin or 8-pin plugs for secure camera connection and USB-A for computer connectivity. Available lengths include 1m, 3m, 5m, 10m, and 20m, with an optional right-angle connector. For demanding environments, a high-temperature version withstands up to 250°C.

General Specifications

• Environmental rating: IP67 (Nema-4)
• Operating temperature: 0 °C … 85 °C (High temperature version up to 250 °C)
• Relative humidity: 10 – 95 %, non-condensing
• Jacket Material: PVC (Polyvinyl Chloride)
• Color: black

Interface Specifications

• Cable Type: USB 2.0
• Connector 1: USB Type A Male
• Connector 2: Optris 4-pin cable plug or 8-pin cable plug

Which USB cable fits to which infrared camera?

These USB cables with the 8-pin plug are compatible with Xi 80, Xi 410 LT, Xi 410 MT, and Xi 1M infrared cameras. The USB cables with the 4-pin plug match to the PI series and the Xi 400 and Xi 640 infrared cameras.

When do I need the optional right-angle connector?

The cables can be terminated with an optional right-angle connector. This connector is used in tight installation locations when there is little space behind the infrared camera.

Can the USB cables withstand high temperatures?

Yes, a high-temperature version of the USB cable can withstand temperatures up to 250°C.

Can I use these cables for applications other than infrared cameras?

These cables are specifically designed for Optris infrared cameras and may not be suitable for other applications.

• 1x USB cable with customized length
