USB-Server Gigabit 2.0

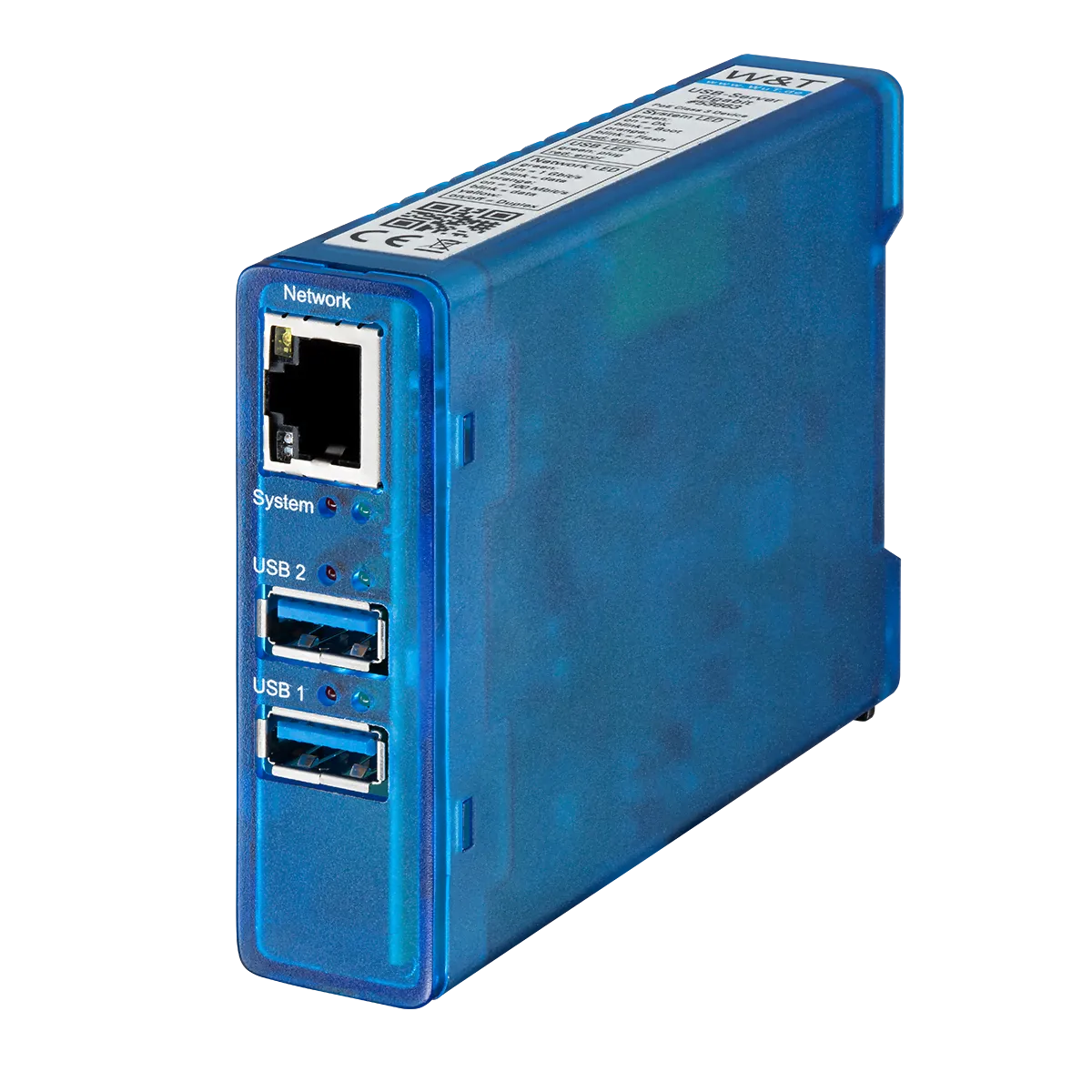

The USB Server Gigabit 2.0 adapter remotely controls infrared cameras and pyrometers via USB-to-Ethernet. It supports USB 2.0, with data rates up to 480 Mbit/s, and connections up to 120 m. It offers full TCP/IP at Gigabit speeds up to 1000 Mbit/s, two USB ports, and 500 VRMS galvanic isolation. Configurable via Web-Based Management, it’s powered through PoE or a 24-48 V DC power supply.

General Specifications

• Environmental rating: IP20
• Operating temperature: 0 °C to 50 °C (Special version up to 60 °C)
• Storage Temperature: -40 °C to 85 °C
• Relative humidity: 5 – 95 %, non-condensing
• Housing material: Plastic
• Weight: 200 g
• Dimensions: 105 x 75 x 22 mm

Interface board basic characteristic

Ethernet Network Speed: 10 /100 / 1000Base T auto sensing (max. 1000 Mbit/s)
Ethernet protocols: TCP/IP: Socket
Auxiliary protocols: ARP, DHCP, HTTP, PING Inventory keeping, group management
Ethernet port: 1x RJ45

USB speed: 1,5 /12 /480 Mbit/s (Low-/Full-/High Speed)
USB ports: 2x USB A port
USB protocols: 1.0 / 1.1 / 2.0 Control / Bulk / Interrupt / Isochronous

Electrical Parameters

Power supply:
Power-over-Ethernet (PoE) Class 3 (6.49-12.95W) or via screw terminal DC 24 V…48 V (+/-10 %)

Current consumption:
External supply (24 V DC) without USB devices: typ. 120 mA
External supply (24 V DC) with 2x USB devices each 2.5 W: typ. 420 mA

Galvanic isolation: > 500 VRMS (network connection)

What is the difference between the GB and the HT version of the USB to Ethernet server?

While the USB GB Version supports faster speeds of up to 1000 Mbit/s, the USB HT Version supports only 100 Mbit/s. Nevertheless, the USB HT version supports higher operating temperatures than the GB version of up to 60 °C.

Can I use other USB servers from W&T?

It’s important to note that other USB servers from W&T are not compatible with Optris USB infrared cameras and pyrometers. These servers have special hardware and firmware to support the communication protocols, and they are identified by a unique part number.

Who is the original supplier of this device?

Wiesemann & Theis GmbH from Germany

Can I run multiple USB IR cameras on the same USB server?

While it’s possible to run multiple USB IR cameras on the same USB server, there are limitations. The compatibility depends on the camera model and framerate, as well as the server’s bandwidth. For a detailed list of supported combinations, please refer to the Quick Start manual.

• USB-Ethernet converter
• 24 VDC power supply
