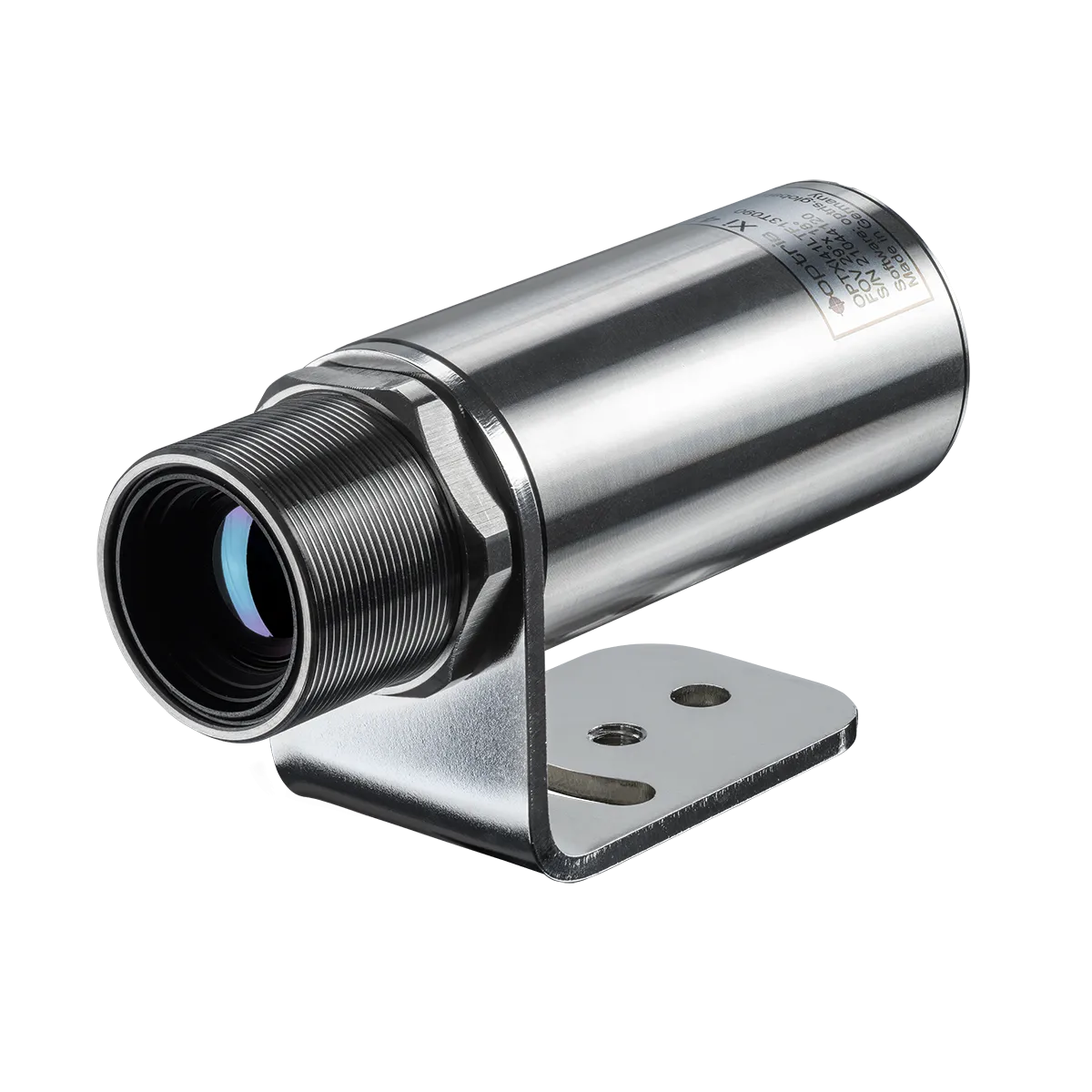

Xi 410 LT ETH

The Optris Xi 410 is a groundbreaking infrared camera that offers innovation, affordability, and precision in non-contact thermal imaging. Designed to operate within the long-wavelength infrared range (LT: 8 – 14 µm), this forward-looking camera is engineered to capture measurement data for precise surface temperature analysis in industrial settings. Addressing the rigorous demands of various industries, the Optris Xi410 boasts wide temperature measurement ranges, accuracy, and customizable field-of-view configurations. It captures the heat fingerprint for operators who seek thermal insights into their monitoring applications.

Designed and manufactured for industrial applications, this infrared camera features a mid-resolution thermal imaging capability (384 x 240 pixels), enabling it to excel in capturing temperature data across an extensive range from –20°C to 1500°C. Its remarkable distance-to-spot-size ratio ensures accurate temperature measurements, even when capturing images from considerable distances. This superior ratio surpasses the optical performance of modern pyrometers, facilitating detailed monitoring of targets at significant distances. Furthermore, the motorized focus functionality allows users to precisely adjust focus remotely on their surface temperature measurement targets.

Optris imaging systems are uncooled forward-looking infrared (FLIR) thermal imaging cameras optimized for stationary use. These FLIR cameras have an uncooled two-dimensional imaging detector that creates radiometric thermal images in the infrared wavelength range without utilizing mechanical rotating or oscillating moving mirrors. The uncooled bolometer technology strengthens a more reliable, inexpensive, and robust design, especially compared to traditional line scanner applications. Furthermore, these infrared cameras can autonomously seek thermal hot spots, enhancing their utility and efficiency in various monitoring and inspection tasks. These FLIR infrared cameras are designed, developed, and manufactured in Germany.
The industrial-grade and robust design of the Optris Xi410 ensures reliability in demanding industrial environments, making it an indispensable tool for process engineers seeking accurate infrared temperature measurements in manufacturing processes. Its compact yet durable and waterproof design renders it ideal for fixed installations or mounted setups, guaranteeing durability in diverse industrial manufacturing environments.

With Ethernet as its primary interface, the Optris Xi410 enables effortless connection to computers while maintaining a frame rate of 25 Hz. Users can also have a secondary USB interface with a frame rate of 4 Hz. Its smart autonomous operation eliminates the need for extensive software coding, enabling effortless integration into control loops. Moreover, the infrared camera boasts features such as automatic spot finding, direct analog output (0/4-20mA), and compatibility with industrial fieldbus systems such as Ethernet/IP, Modbus TCP/IP, RS485, or Profinet, making it the ultimate solution for original equipment manufacturer (OEM) use. The Xi410’s autonomous operation mode at 1.5 Hz further simplifies integration into machinery.

In addition, the Optris Xi410 offers access to more complex software functionalities, such as line scanning or image merging, through the PIX Connect software license. PIX Connect is indispensable for researchers seeking an affordable IR camera with a powerful software platform for thermal image processing and temperature data collection. Developer kits are also available for integrators developing application-specific software solutions.
These innovative features enhance the infrared cameras ability to provide accurate and reliable surface temperature measurements across various applications, ranging from quality control in manufacturing processes to condition monitoring and research and development activities. The Xi410’s versatility guarantees smooth integration into diverse industrial setups, enhancing the cameras ability to adapt to specific requirements. With its advanced features, the Optris Xi410 sets a new standard for fixed-install infrared imaging, offering a very cost-effective and powerful solution for diverse industrial applications.

Moreover, the infrared camera Xi410 is compatible with an extensive range of accessories tailored to harsh environmental conditions. These accessories include a water-cooled housing, extending the operating temperature range to 250 °C. Air purges maintain a pristine lens, guaranteeing uninterrupted temperature measurement even in dusty environments. The portfolio of compatible accessories includes mechanical mounting options, electrical interfaces, and connection cables, all available at an appealing price point.

Thermography software optris PIX Connect is included and license-free.All infrared cameras are delivered with the thermography software optris PIX Connect, developed specifically for the extensive documentation and analysis of thermal images. The Windows-based PIX Connect software enables users to tailor the infrared cameras to meet specific requirements. It analyses live and recorded temperature data and triggers alarm signals for process integration.The key to leveraging the Optris infrared camera is a correct configuration. This includes detailed device-specific configurations such as frame rate, measurement range adjustments, external communication settings, and USB/Ethernet configurations. Moreover, PIX Connect facilitates firmware updates and the download of configuration files over the Internet. PIX Connect Optris offers several different SDKs for our Xi and PI thermal imaging cameras. Depending on the operating platform, the infrared camera, the coding language, and the hardware platform, different software interfaces can be utilized: SDK The Optris IRmobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared camera’s field of view or adjusting the configuration. The app analyzes the connected infrared camera’s live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

Can I trust the temperature measurement of a single pixel?

Due to the diffraction-limited nature of infrared optics, the optical resolution and image quality are physically limited. As the dimensions of the individual pixels are in the same range as the infrared wavelength, users shall ensure that the target is larger than the camera’s MFOV.

What is the speed of the Xi410 in the autonomous operation?

1,5Hz

How do I configure the IP addresses for the Xi410 cameras?

Use the PIXConnect software to configure Ethernet settings and the autonomous mode.

Does the camera support DHCP in the Ethernet mode?

No, the camera must be assigned to a static IP address.

Do I need software to run the infrared camera?

No, the infrared camera can run without the support of a computer. However, for setup and configuration, the software PIXConnect is necessary.

Is the Ethernet cable included?

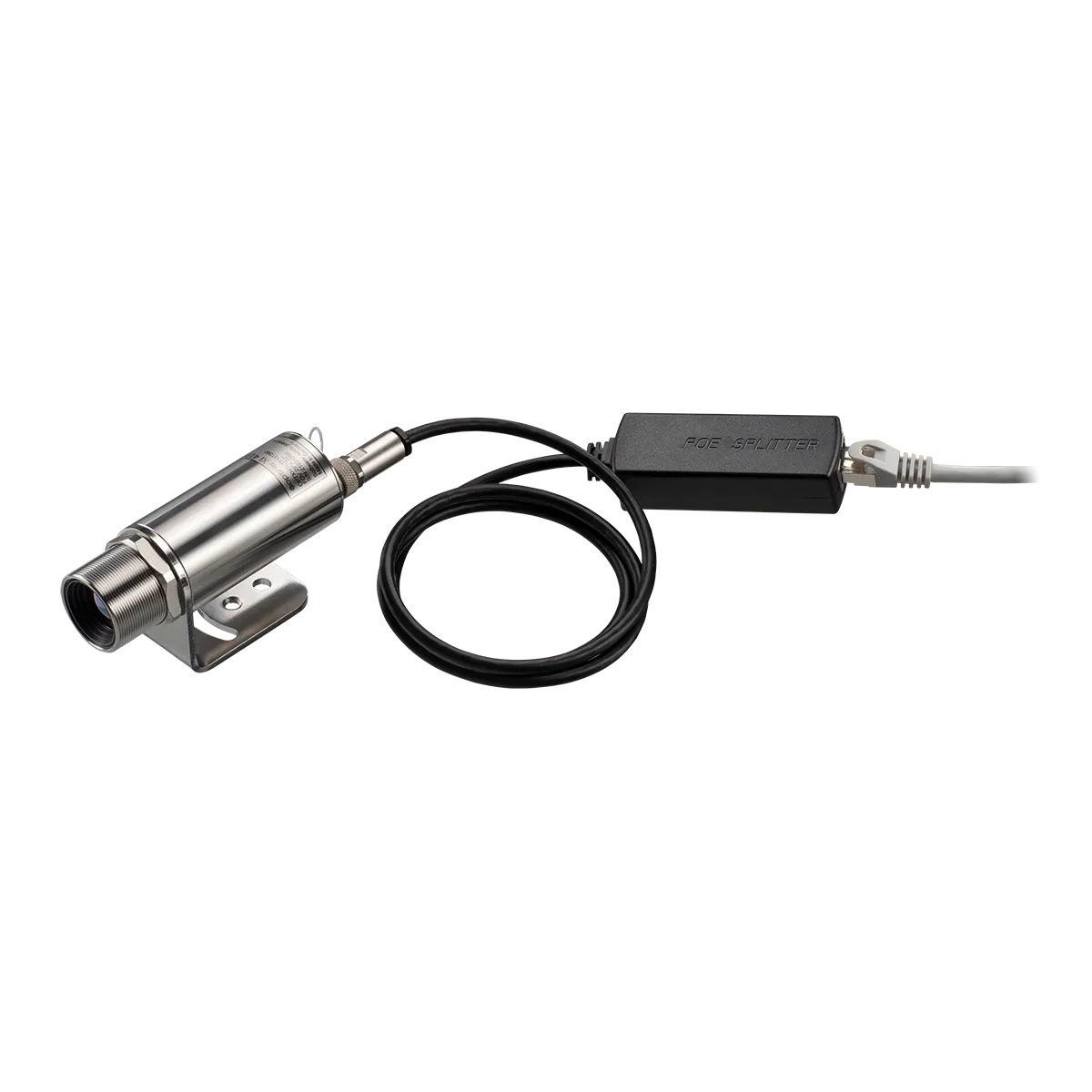

The PoE adapter to utilize Ethernet is included in the standard scope of supply.

Can I use the XI410 with metals or glass?

Other infrared cameras from Optris perform better with that material as they work in a different spectral band.

How do I focus the camera?

The motorized focus can be set with the PIXConnect software. In the PIXConnect software, click on the “distance” button in the toolbar and use the slider.

Where is the Xi 410 made, and does it contain memory components sourced from outside the U.S. or the European Union?

The Xi 410 is designed, manufactured, and calibrated in Berlin, Germany. Some electronic components may be sourced from outside the EU or the US. Still, it is important to note that the Xi 410 does not store any thermal images or temperature values in volatile memory. The Xi 410 only stores full thermal images, thermal video (.ravi files), and temperature values in the customer PC hosting the PIX Connect software necessary to operate the camera. The camera uses memory components inside the camera electronics, which may be sourced outside the EU or the US to store a reference picture (also called dark picture) of the non-uniformity correction paddle or flag and some reference temperatures used to correct temperature drift. All these memory elements are deleted when the power to the camera head is terminated.

Can the Xi 410 operate without a connection to a computer?

The Xi 410 can calculate the temperature autonomously without a computer. The temperature data can either be transmitted the USB or Ethernet interface or output via the process interface. Fieldbus communication is also available.

Can the Xi 410 send temperature information from spots or areas to my PLC?

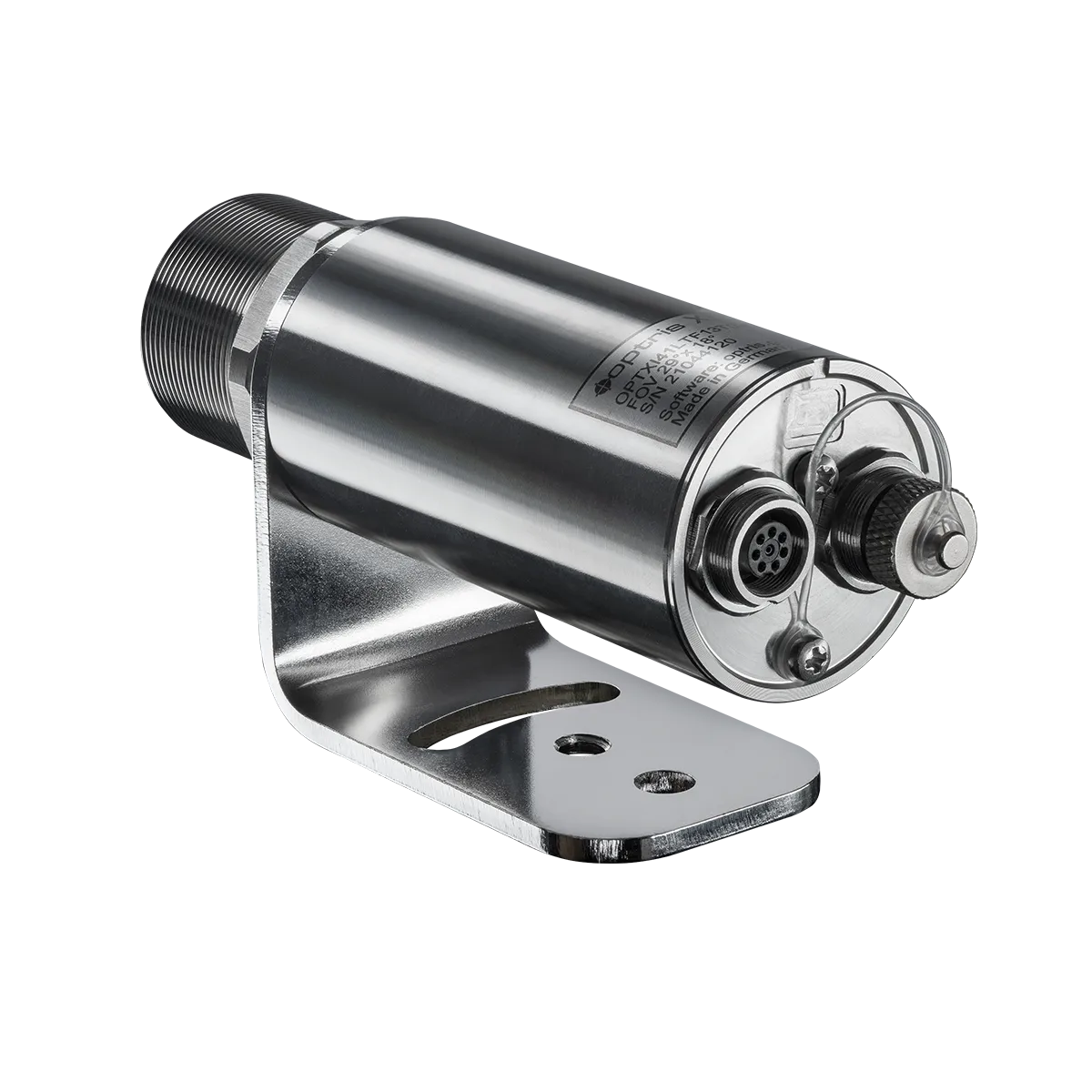

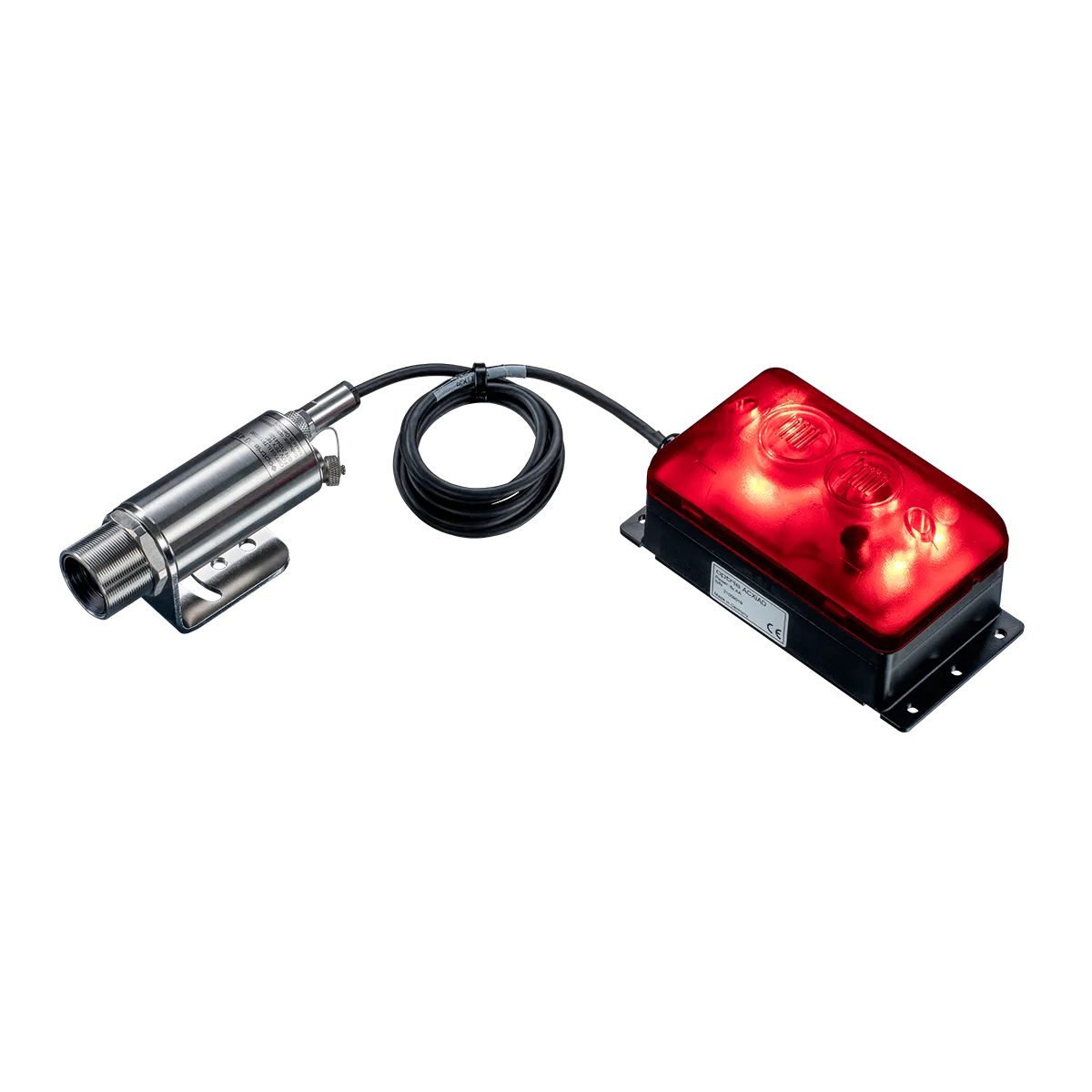

The Xi 410 can send temperature information or temperature alarms from the Process Interface connection on the back of the camera. A cable with integrated electronics and a terminal block is included with the camera. It can be programmed in PIX Connect software as an Analog Input (AI) and Digital Input (DI) to control the camera or as an Analog Output (AO) to control the process. The signal level is always 0-10 V (DI = 24 V). An optional industrial process interface is also available, delivering up to three independent temperature values or alarms to a user-supplied PLC. USB-RS485 adapters are available for applications with output requirements for more than three areas.

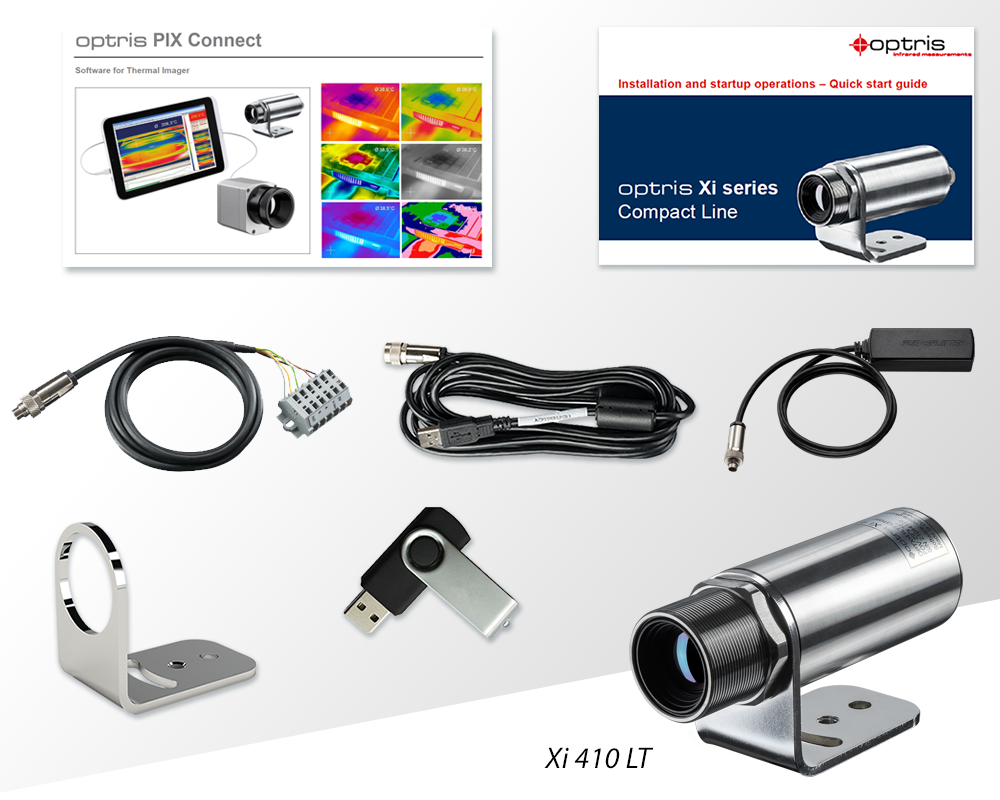

• Process imager Xi 410
• Ethernet / PoE cable (1 m)
• USB cable (1m)
• Cable for output/input (1 m)
• incl. terminal block
• Mounting bracket with nut
• Software package

• optris PIX Connect
• Quick Start Guide
