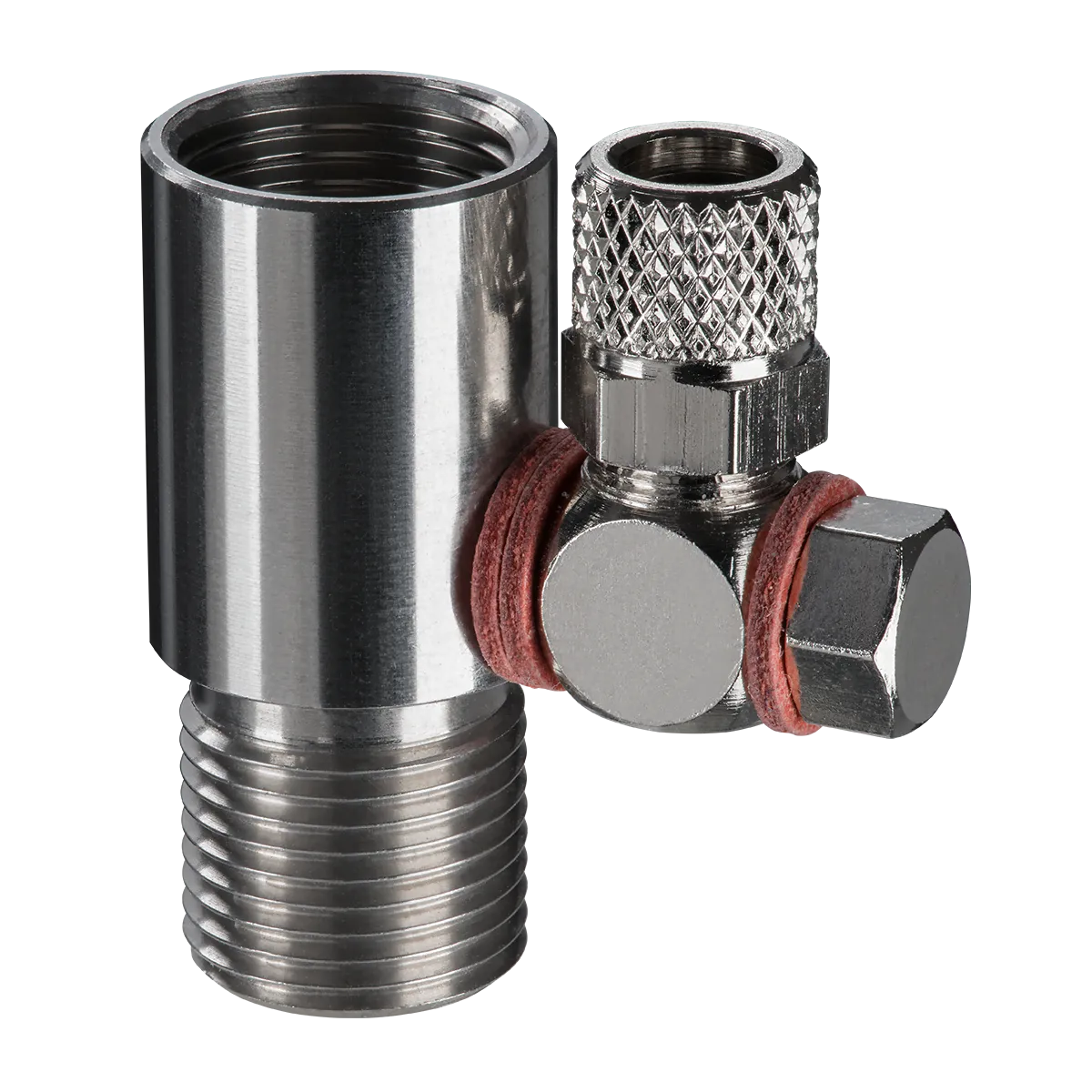

Air Purge Collar
.
The Air Purge Collar safeguards the CT or CS sensing head from contamination and condensation on the lens. Keeping the lens clean requires a continuous flow of compressed, oil-free air. This collar provides a steady stream of air that prevents dust, debris, and other contaminants from obstructing the sensor's view, ensuring accurate and reliable measurements. Its robust construction ensures durability in various industrial environments, making it suitable for various applications. Easy to install and maintain, the Air Purge Collar is a valuable addition to your sensing system, ensuring the longevity and consistent performance of the CS LT, CSmicro, and CT sensing heads.
- Compatible with most CS, CSmicros and CT sensing heads
- Reduces contamination and condensation
- Prevents dust, debris, and other contaminants from obstructing the sensor's view
- Made of stainless steel
25,00€
Product Description
- Compatible with most CS, CSmicros and CT sensing heads
- Reduces contamination and condensation
- Prevents dust, debris, and other contaminants from obstructing the sensor’s view
- Made of stainless steel
Specification
General Specification
- Operating temperature: 0 °C to 125 °C
- Storage temperature range: 0 °C to 80 °C
- Environmental rating: IP65
- Relative humidity: 10 – 95 %, non-condensing
- Material: Stainless steel
- Size: 30 x 14 x 29 mm
Air purge
- Airflow: 2…10 l/min
- Absolute pressure: 1,1 – 8 bar
- Condition: Use oil-free, technically clean air only
- Connection hose dimensions for compressed air: ID: 3 mm x OD: 5 mm
Downloads
FAQs
What kind of compressed air is needed for the air purge collar?
Oil-free, technically clean air.
How much air is needed for proper function?
The required air volume is approx. 2…10 l/ min. It depends on the application and the conditions at the installation site.
Are all sensors compatible with this air purge?
No, only sensor head with a M12 thread and a better distance to spot size ratio than 10:1 are compatible with this accessory.
Scope of Supply
- 1x Air Purge Collar for CS / CSmicros / CT
