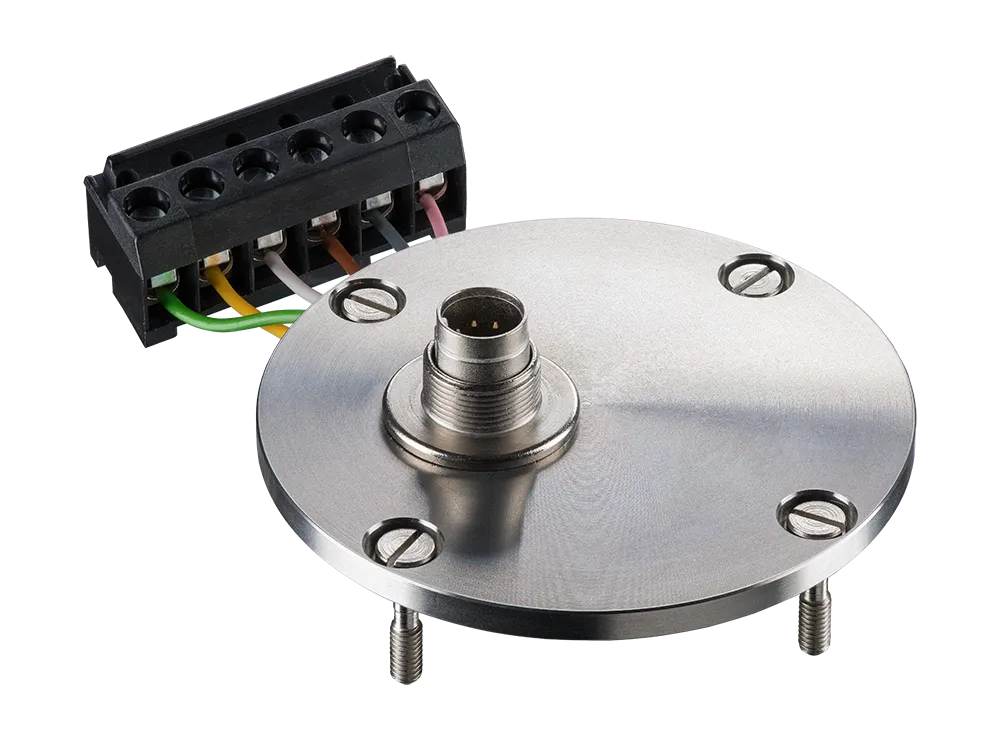

Connector Kit

To install the CTlaser or CSlaser sensor in the CoolingJacket Advanced, the connector version is required. This ensures that the connector plug is integrated into the backplane of the infrared sensor. If the pyrometer is not initially ordered with the connector version, this exchange kit allows you to relocate the connector plug to the backplane of the CSlaser and CTlaser pyrometers.

• Necessary for integration into the Cooling Jacket Advanced for CSlaser and CTlaser
• Moves connector plug to the backplane of the infrared sensor
• Comes with different cables length up to 15 m
• High operating temperature of the cables up to 180 °C

General Specification

Operating temperature: 0 °C to 85°C (optional 180 °C)
Storage temperature: 0 °C to 70 °C
Diameter 4.80 mm
Weight: 24.40 kg/km

Pin assignment

1: Detector signal: Yellow
2: Temperature probe head: Brown
3: Temperature probe head: White
4: Detector signal: (–) Green
5: Ground Laser: (–) Grey
6: Power supply Laser: (+) Pink
7: / : Not used

What is required to install the CTlaser or CSlaser sensor in CoolingJacket Advanced?

The connector version is needed to install the CTlaser or CSlaser sensor in the CoolingJacket Advanced.

What comes pre-installed when ordering a high-temperature cable with a connector version for CoolingJacket integration?

When ordering a high-temperature cable with a connector version for CoolingJacket integration, the cable gland, which is crucial for the integration, is already installed on the cable.

Can I use other cables?

Use the original ready-made, fitting connection cables, which are optionally available. Consider the pin assignment of the connector.

• 1x connector-Kit
• 1x set of locking screw
• 1x cable in different lengths (3, 8 or 15 m)
