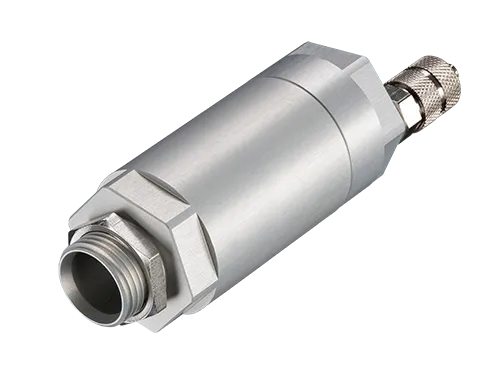

Enclosed Air Purge Collar
.
- Improves performance in dusty conditions
- Keeps the lens of the infrared sensor clean in harsh environments
- Prevents dust accumulation with an air stream
- Fits various distance-to-spot size ratios
- Compatible with different sensing head forms
- Easy to install and maintain
From 50,00€
Product Description
The Air Purge Collar for the compact online infrared thermometer series keeps the infrared sensing head lens clean in challenging environments. By using a continuous air stream, it prevents dust accumulation, ensuring accurate measurements. Various models are available to accommodate different distance-to-spot size ratios and sensing head form factors.
Specification
General Specification
- Operating temperature: 0 °C to 180 °C
- Storage temperature range: 0 °C to 80 °C
- Environmental rating: IP65
- Relative humidity: 10 – 95 %, non-condensing
- Material: Anodized aluminum
- Size: Ø21 x 67,5 mm
Air purge
- Airflow: 2 …10 l/min
- Condition: Use oil-free, technically clean air only
- Connection hose dimensions for compressed air: ID: 3 mm x OD: 5 mm
- Thread (fitting): M5
FAQs
What kind of compressed air is needed for the air purge collar?
Oil-free, technically clean air.
How much air is needed for proper function?
The required air volume is approx. 2…10 l/ min. It depends on the application and the conditions at the installation site.
Are all sensors compatible with this air purge?
No, this accessory is compatible with only sensor heads with an M12 thread and a distance-to-spot size ratio better than 10:1.
Scope of Supply
- 1x Air Purge
