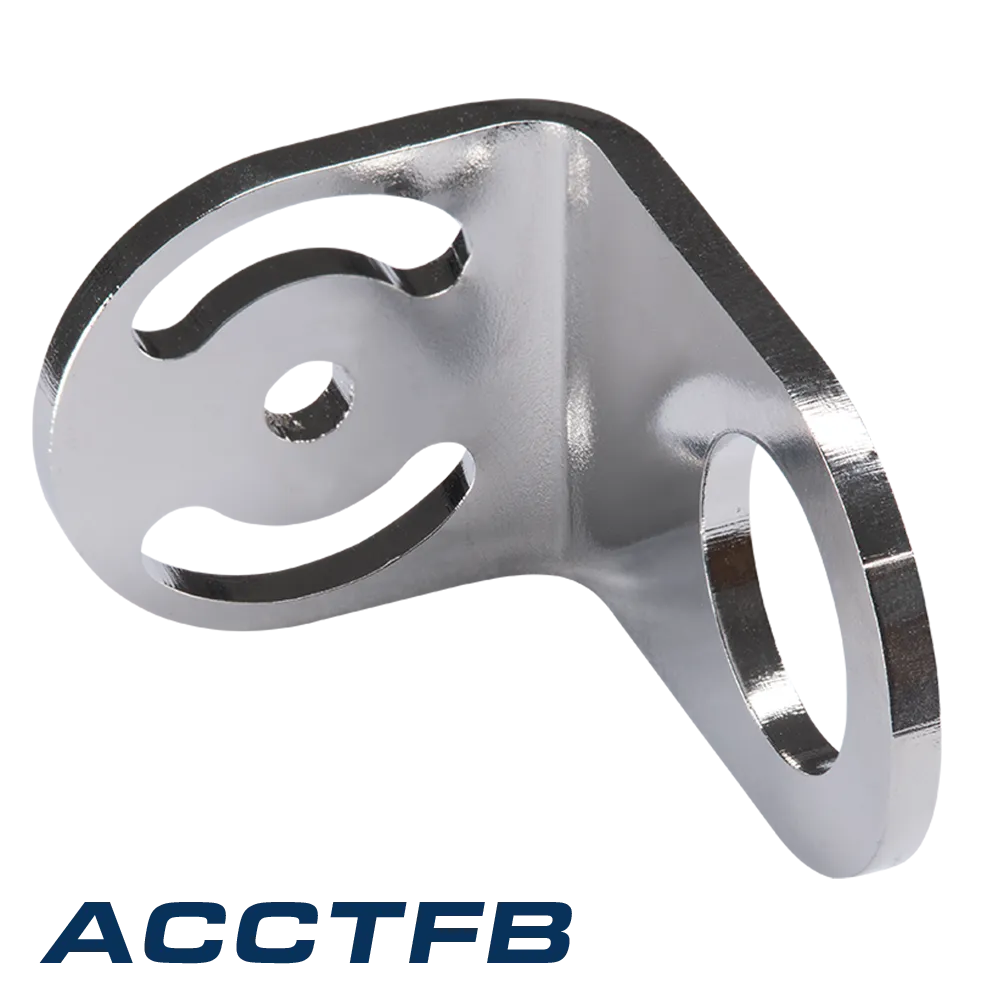

Mounting bracket, adjustable in one axis

The IR Sensor Mounting Bracket adjustable in one axis is an essential accessory for ensuring the optimal performance of infrared sensors. With its durable stainless steel construction and adjustable design, it offers a reliable and flexible mounting solution for a variety of industrial applications.

• Compatible to most compact pyrometers
• Adjustable on one axis
• Made in stainless steel 1.4301 electropolished
• Connection hole: 3.2 mm

General Specifications

• Material: Stainless steel 1.4301 electropolished
• Connection hole: 3.2 mm
• Thickness: 2mm
• Single Axis Adjustability: The mounting bracket allows precise adjustment along one axis, providing flexibility in positioning the infrared sensor to achieve optimal alignment and performance.
• Durable Construction: Made from corrosion-resistant stainless steel, the bracket is built to withstand harsh conditions, ensuring reliability and durability in demanding applications.
• Easy Installation: The bracket is designed for straightforward installation, featuring a user-friendly design that simplifies the process of mounting and adjusting the infrared sensor.
• Compatibility: The mounting bracket is compatible with a wide range of infrared sensors, making it a versatile choice for various industrial applications.

Which sensing heads are possible to mount to the mounting bracket?

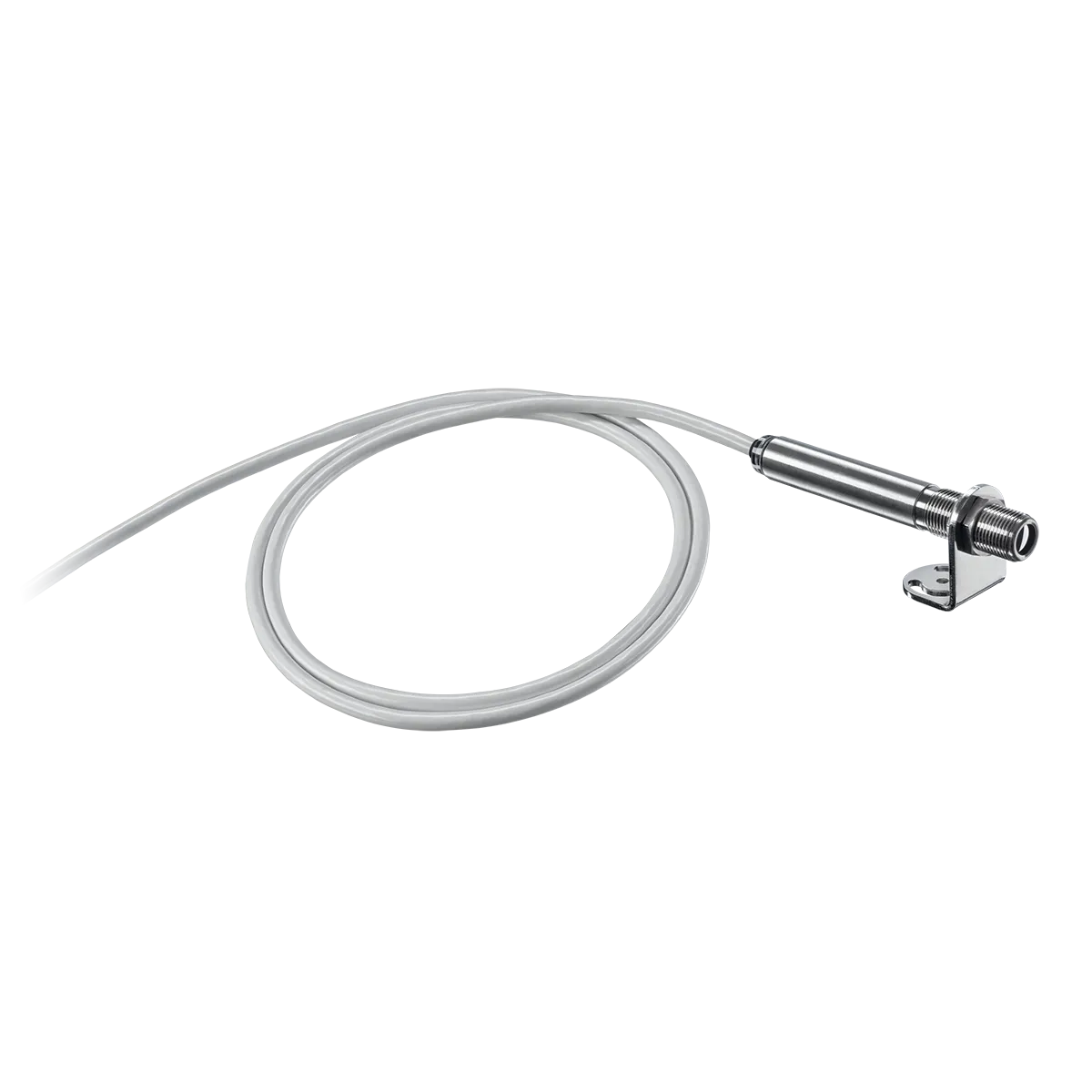

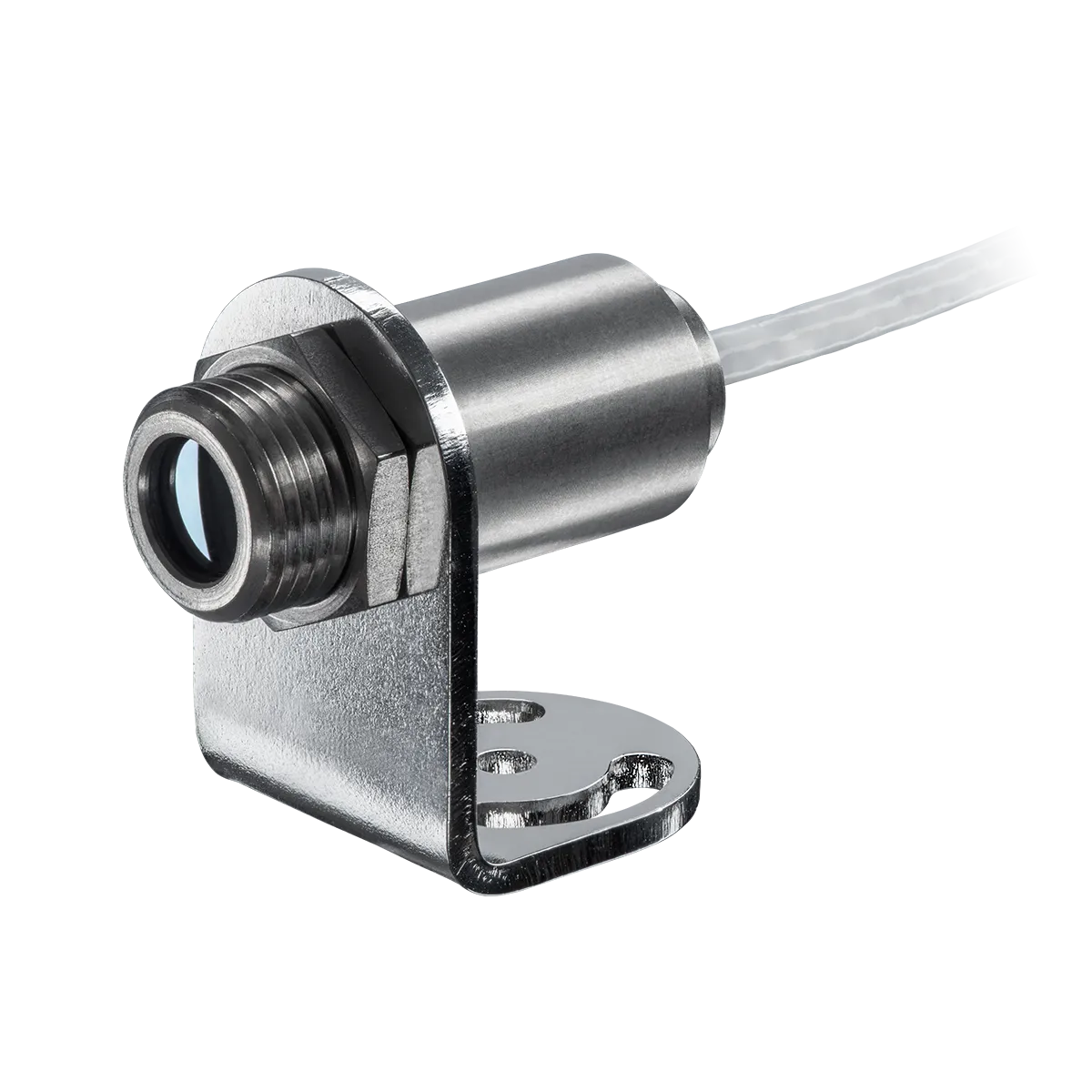

You can mount all CS LT, CSmicro, and CT sensing heads to the mounting bracket, which feature the M12 thread design.

Which sensing heads are not possible to mount to the mounting bracket?

You can’t mount CSmicro hs, CT P3 / P7 and CTratio sensing heads to this mounting bracket/ bold. For this sensors please use the Optris bracket with the partnumber ACCTFBMH.

What materials is the Mounting Bracket made of?

The Mounting Bracket is made of high-quality stainless steel, type 1.4301.

Is the Mounting Bracket adjustable?

Yes, the bracket is adjustable on one axis. The bracket is secured with two screws, of which one is mounted in a slit so that the infrared camera can rotate horizontally.

Can the mounting bracket be used in outdoor environments?

Yes, the bracket’s stainless steel design makes it suitable for use in both indoor and outdoor industrial environments.

• 1 x Mounting bracket
• 2 x Insulating ring
