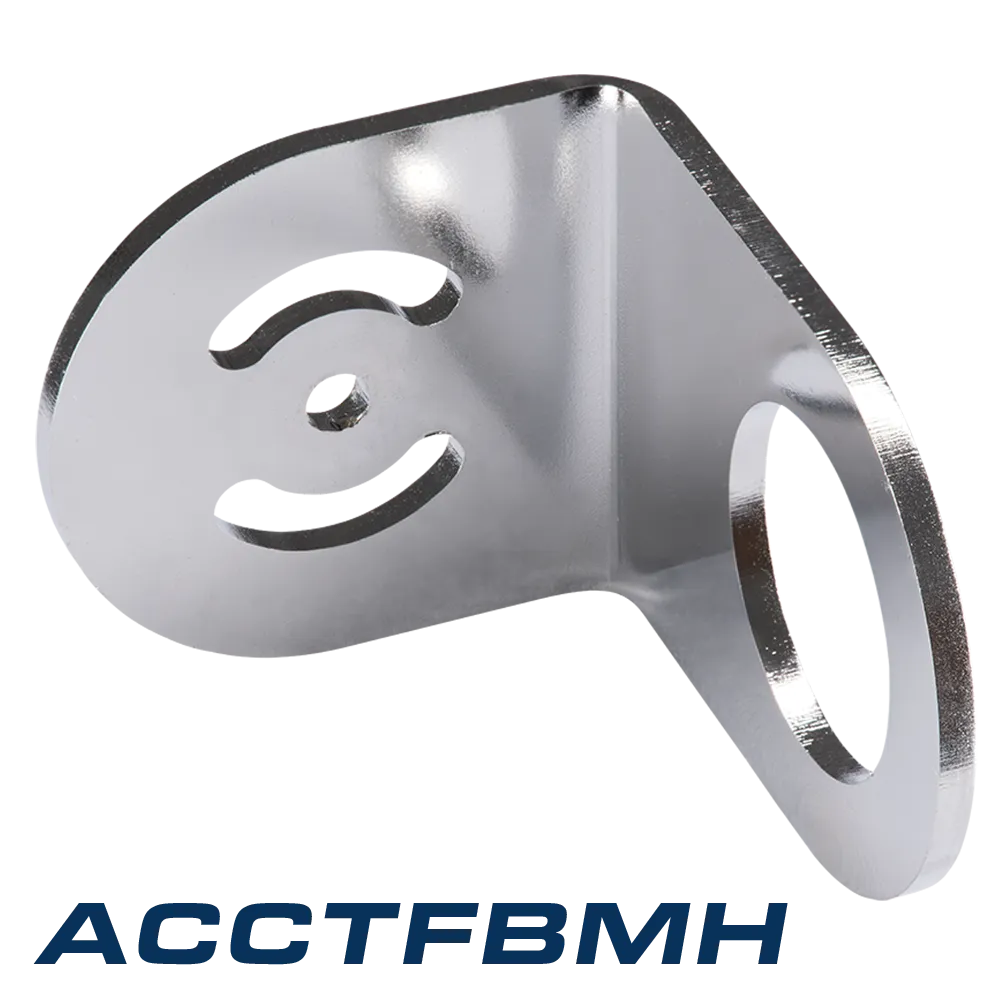

Mounting bracket for massive housing and CTratio, adjustable in one axis

The IR Sensor Mounting Bracket is adjustable in one axis and a essential accessory for ensuring the optimal performance of CTratio infrared sensors or CT sensors with massive houseings. With its durable stainless steel construction and adjustable design, it offers a reliable and flexible mounting solution for a variety of industrial applications.

• Material: Stainless steel 1.4301 electropolished
• Connection hole: 3.2 mm

General Specification

• Material: Stainless steel1.4301 electropolished
• Connection hole: 3.2 mm
• Thickness: 2mm
• Single Axis Adjustability: The mounting bracket allows precise adjustment along one axis, providing flexibility in positioning the infrared sensor to achieve optimal alignment and performance.
• Durable Construction: Made from corrosion-resistant stainless steel, the bracket is built to withstand harsh conditions, ensuring reliability and durability in demanding applications.
• Easy Installation: The bracket is designed for straightforward installation, featuring a user-friendly design that simplifies the process of mounting and adjusting the infrared sensor.
• Compatibility: The mounting bracket is compatible with a wide range of infrared sensors, making it a versatile choice for various industrial applications.

Which sensing heads are possible to mount to the mounting bracket?

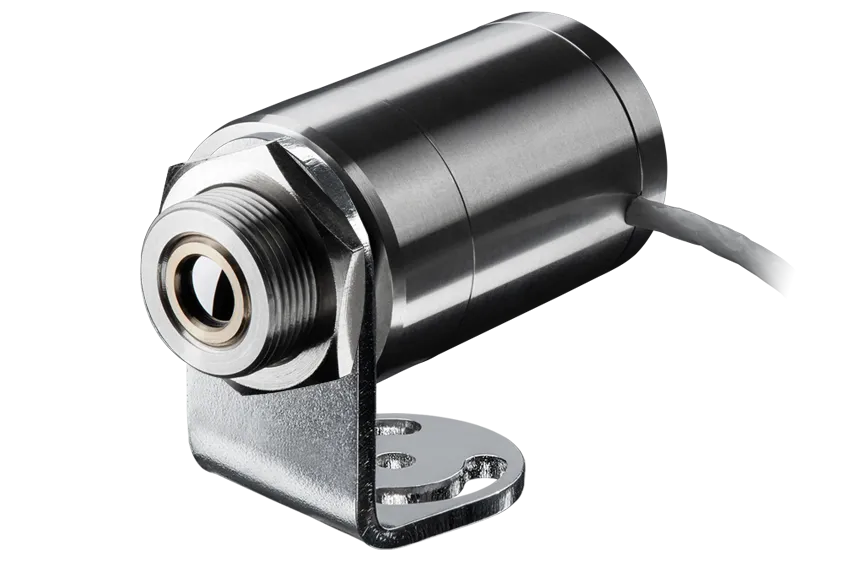

You can mount CSmicro LT hs, CTi LT hot, CT P3/P7 and CTratio sensing heads to the mounting bracket, which feature the M12 thread design.

Which sensing heads are not possible to mount to the mounting bracket?

You can’t mount CS LT, CSmicro and CT sensing heads without massive houseing to this mounting bracket. For this sensors please use the Optris bracket with the partnumber ACCTFB.

What materials is the Mounting Bracket made of?

The Mounting Bracket is made of high-quality stainless steel, type 1.4301.

Can the mounting bracket be used in outdoor environments?

Yes, the bracket’s stainless steel design makes it suitable for use in both indoor and outdoor industrial environments.”

1 x Mounting Bracket
