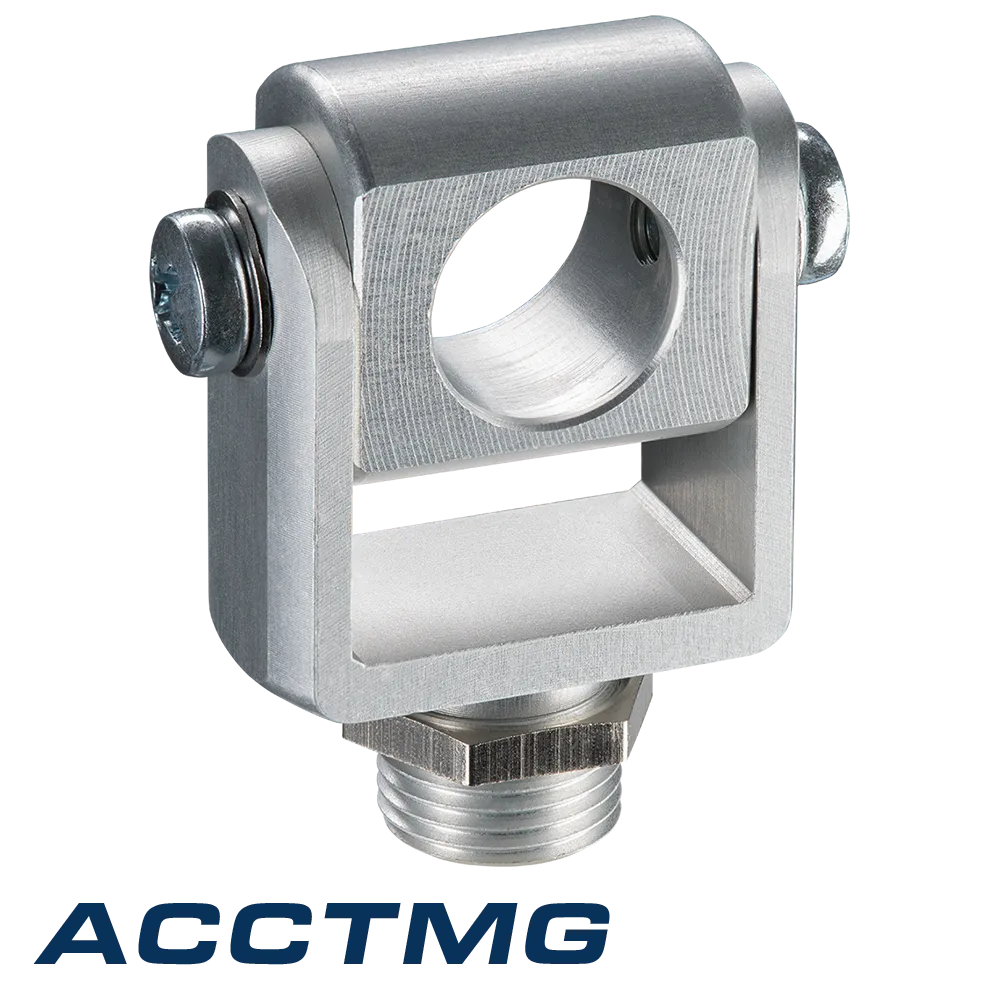

Mounting Fork, Adjustable in Two Axes and with M12 thread
The Mounting fork for CS LT, CSmicro, and CT measuring heads with an M12 thread allows secure attachment to your process setup.
- Adjustable on two axes
- Made of anodized aluminum
- With M12 thread for easy installation
50,00€
Product Description
The Mounting fork for CS LT, CSmicro, and CT measuring heads with an M12 thread allows secure attachment to your process setup. Made from durable anodized aluminum, this bracket offers two-axis adjustability for precise positioning. Designed for stationary use, it ensures compatibility with various mounting options, making it an essential accessory for stable and accurate infrared thermometer installation.
- Adjustable on two axes
- Made of anodized aluminum
- With M12 thread for easy installation
Specification
General Specifications
- Size: 34 x 34 x 10 mm, M12x1
- Material: anodized aluminum
- Operating temperature range: Same as the sensing head
Downloads
FAQs
Which sensing heads are possible to mount to the mounting fork?
You can mount all CS LT, CSmicro, and CT sensing heads to the mounting fork, which feature the M12 thread design.
What materials is the Mounting fork made of?
The Mounting fork is made of high-quality anodized aluminum.
Is the Mounting fork adjustable?
Yes, the Mounting fork is adjustable on one axis. The bracket is secured with two screws, of which one is mounted in a slit so that the infrared pyrometer can rotate horizontally.
Can the mounting fork be used in outdoor environments?
Yes, the bracket’s design makes it suitable for use in both indoor and outdoor industrial environments.
Scope of Supply
- 1x Mounting fork
- 1x Hexagon nut M12x1
