CSlaser hs LT
High-Performance Single-piece Industrial Infrared Pyrometer with High Sensitivity and Laser-Sighting.
- Temperature range: -20 °C to 150 °C
- Spectral range: 8 to 14 µm
- Measure the slightest temperature differences of 0.025 K
- Response time: 150 ms
- High Optical Resolution
- Laser Sighting
- Including certificate of calibration
960,00€
Product Description
The Optris CSlaser hs LT infrared thermometer is renowned for its high performance, providing a temperature measurement range from -20 °C to 150 °C. This pyrometers robust single-piece design ensures easy installation into various process systems. Key features include double laser spot marking, a higher distance-to-spot size ratio, and a stainless steel housing (M48x1.5). With measuring spots starting from 1.4 mm and response times from 150 ms, this infrared sensor is a top choice for professionals in industries requiring non-contact temperature measurement solutions.
The Optris CSlaser hs LT allows for measuring even the slightest temperature differences from 0.025 °C onwards, which is crucial for continually monitoring product homogeneities. System accuracy at ambient temperature stands at ±1% or ±1 °C, whichever is greater. The contactless thermometer demonstrates exceptional repeatability, with only ± 0.3% or ± 0.3 °C at ambient temperatures of 23 ± 5 °C and target temperatures above 20 °C.
The CSlaser hs LT infrared pyrometers redefine precision and reliability in non-contact temperature measurement across various industries. They provide essential temperature monitoring solutions, especially in fixed-installed or fixed-mounted applications where consistent and accurate measurements are crucial. The infrared pyrometers non-contact nature makes them ideal for processes where direct contact is impractical, such as when the product is inaccessible or moving.
Compared to smaller sensors from the CSlaser hs LT and CSmicro product lines, the CSlaser’s standout feature is its innovative double-laser sighting system, which precisely marks measurement targets and offers a higher distance-to-spot size ratio.
The CSlaser is a versatile instrumentation tool that can function as an analog device, providing a 4-20 mA signal and including an alarm output (open-collector). Equipped with a standard two-wire interface, the CSlaser hs LT ensures easy cabling and reliable data transfer to a PLC. For digital communication, the optional USB programming kit is necessary. This kit, in combination with the software, enables fast sensor parameterization and the recording and analysis of measurement data. In digital mode, the sensor and the laser are powered via the 5 V from the USB interface. The infrared sensor offers two modes of digital bidirectional communication, allowing data to be sent and received in both directions, and a unidirectional mode where the sensor only sends data in burst mode. Additionally, the CSlaser can operate in digital mode while simultaneously functioning as an analog device, with the sensor powered by the USB interface.
A remarkable feature of the CSlaser hs LT series is its double laser aiming marks, which indicate the actual spot location and provide valuable information about the spot size. This visualization ensures operators have a clear understanding of the measurement area, enhancing temperature monitoring accuracy, supporting exact alignment, and reducing measurement errors. The two laser beams follow the infrared optical path to mark the position of the measuring spot at any distance, unlike many IR thermometers with single lasers that only mark the center of the spot. These pyrometers are primarily used in industrial areas, research, and development, where small measurement spots are crucial for precise temperature measurement. Different focus versions allow flexible adjustments for various applications.
The CSlaser hs LT series takes temperature measurement to the next level with its exceptional optical resolution, reaching up to 50:1. This ensures precise and reliable temperature data even in narrow field-of-view conditions. Available in multiple versions with different close-focus optics, the CSlaser hs LT series offers unparalleled accuracy and versatility in non-contact temperature measurement technology.
Equipped with Optris accessories such as air purging, mounting flanges, and other add-ons, the Optris CSlaser hs LT pyrometer enables integration into many manufacturing and process applications. Designed and manufactured in Germany, these pyrometers undergo careful calibration to government standards such as PTB or NIST. Customization options, including different cable sizes, are available. Optris provides comprehensive support, including consultation on industrial applications and after-sales assistance.
In summary, the Optris CSlaser hs LT series combines precision, durability, and adaptability, making it an excellent solution for accurate non-contact temperature measurement in a wide range of industrial settings.
Specification
| MODEL | CSlaser hs LT |
| DETECTOR | |
| Detector | Thermopile |
| Measurement Principle | Single color |
| Spectral Range | 8 – 14 µm |
| Response Time | 150 ms |
| Exposure Time | 150 ms |
| Sampling Frequency | 7 Hz |
| Exchangable Sensing Head | N/A |
| OPTICAL | |
| Distance to Spot ratio (D:S) | 50:1 |
| Spot size (SF optics) | 24 mm at 1200 mm |
| Other optics (FF/CF optics / add. CF lens) | CF1: 1.4 mm at 70 mm CF2: 3 mm at 150 mm CF3: 4 mm at 200 mm CF4: 9 mm at 50 mm |
| Focus | fixed |
| SIGHTING | |
| Laser Sighting | Double point laser with 635 nm at max 1mW |
| Video Sighting | none |
| MEASUREMENT | |
| Object Measurement Range | –20 … 150 °C |
| Accuracy | ±1 °C or ±1 % **2) |
| Repeatability | ±0.3% or ±0.3 °C **2) |
| Temperature Coefficient | ± 0.05 K/K or ± 0.05 % / K **3) |
| Thermal Sensitivity (NETD) | 25 mK |
| Warm-up time | 10 min |
| Emissivity /Transmissivity/ Reflectivity | 0.100 – 1.100 |
| Slope | N/A |
| INTERFACES | |
| Interface | USB |
| Supported Protocols | USB 2.0 |
| Compatible Software | Compact Connect, IRmobile |
| ANALOG INPUT/OUTPUT | |
| Direct output/input | 0/4 – 20 mA Programmable open collector output [30 V / 500 mA] |
| Output impedances | max. 1000 Ω (with 5-30 V DC) for mA output |
| Cable length | 3 m (standard), 8 m, 15 m |
| SIGNAL PROCESSING | |
| Configuration | Compact Connect or IRmobile |
| Operation | Autonomous Standalone |
| Capabilities | Average, Peak hold, Valley hold, Advanced peak hold with threshold and hysteresis, Triggered signal output, Triggered peak hold function (adjustable via software) |
| GENERAL | |
| Size | Ø50 x 100 mm, M48x1.5 |
| Housing Material | Stainless Steel |
| Weight | 600 g |
| Country of Origin | Germany |
| ENVIRONMENTAL & CERTIFICATIONS | |
| Operating Temperature Range | –20 °C … 85 °C **4) |
| Storage Temperature Range | –40 °C … 85 °C |
| Relative humidity | 10 – 95 %, non condensing |
| Protection Class | IP 65, NEMA 4 |
| EMC | 2014/30/EU |
| Shock | IEC 60068-2-27 (25 G and 50 G) |
| Vibration | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) |
| Standards | CE, UKCA, RoHS |
| POWER | |
| Power Supply | 5 – 30 V DC / 5 V USB / max. 1.2 W |
| Power Consumption | <250mW with laser |
| Current Draw | 45 mA at 5 V 20 mA at 12 V 12 mA at 24 V |
| Part number | OPTCSLHSLTSF |
| Additional Remarks | “1) 90% energy 2) at ambient temperature 23 ± 5°C, object temperature > 0°C ; 3) for ambient temperatures <18°C and >28°C; whichever is greater 4) 50 °C with laser ON” |

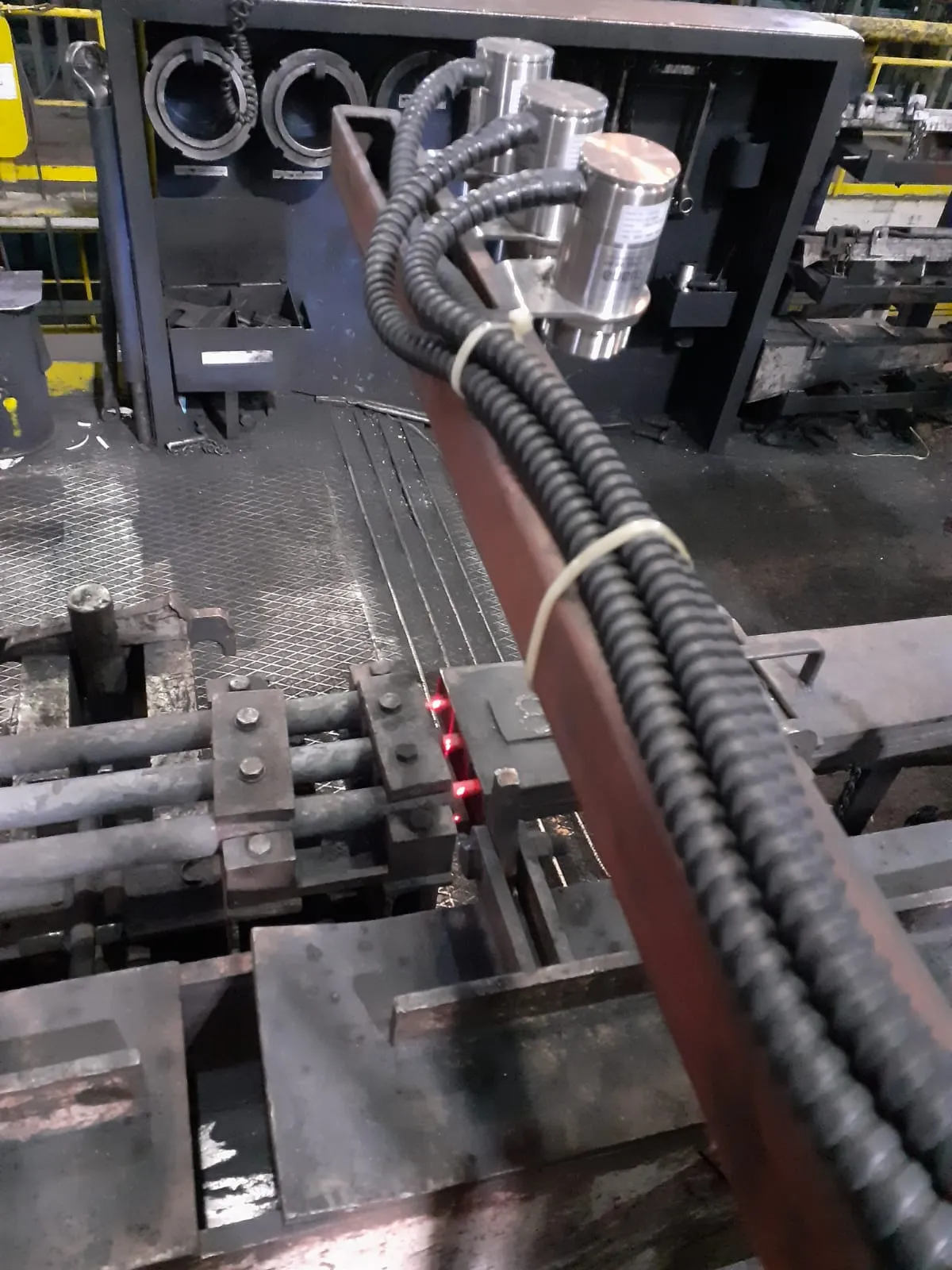

Areas of Application
Software
The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities.
Compact Connect
The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go).
Google Play
Downloads
FAQs
How can I change the scaling, emissivity, or other settings?
The optris CS kit (ACCSMIACC) and the software CompactConnect must be used to change the pyrometers settings.
Can I set up the CSlaser hs LT pyrometer for digital communication?
The optional USB programming kit is required for digital communication. Using the terminal block, connect each wire of the USB adapter cable with the same colored wire of the sensor cable. The sensor offers bidirectional and unidirectional digital communication. Bidirectional communication allows for the sending and receiving of data between the sensor and a computer. Unidirectional communication supports a fast burst mode of data in which the sensor only sends data.
Does the CSlaser hs LT support an open collector output?
Yes, an additional open collector output is supported. The open collector output is an additional alarm output.
Can I connect the CSlaser hs LT to a smartphone to adjust the settings?
The CSlaser hs LT sensor can connect directly to an Android smartphone or tablet. The IR mobile application monitors and analyses infrared temperature measurements on a connected Android smartphone or tablet. The phone powers the CSlaser hs LT pyrometer.
How far can I position the CSlaser hs LT from the target?
The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. The object should fill out the optics’ field of view to prevent measuring deviations. Consequently, the spot should always be at least the same size as the object or smaller. The spot size refers to 90% of the radiation energy.
How do I aim with a CSlaser?
The infrared sensor has an integrated double laser aiming, which helps align the sensor. The measuring spot is located within the two laser points. At the focus point of the appropriate optics, both lasers cross and merge as one dot, marking the minimum spot. The two laser points are for orientation only.
Is the laser dangerous?
The pyrometers laser is a class 2 laser with less than 1 mW in the wavelength range of 500 nm to 650 nm, according to EN 60825 1:2014. Do not point the laser directly at the eyes of persons or animals! Do not stare into the laser beam. Avoid indirect exposure via reflective surfaces.
The laser switched off?
At ambient temperatures >50 °C the laser will be switched off automatically. The laser should only be used for sighting and positioning of the sensor. A permanent use of the laser can reduce the lifetime of the laser diodes and might heat up the sensor.
Can I trigger the laser externally?
Yes, but the supply line for the sighting laser must be led via a switch or push-button, which has to be installed max 2m away from installation site of the sensor for safety purposes. The laser can be activated/ deactivated via this, by the user on site to be installed switch, or via the software.
What is required to install the CSlaser infrared sensor in the CoolingJacket Advanced?
The connector version is needed to install the CSlaser sensor in the CoolingJacket Advanced.
Scope of Supply
- CSlaser hs LT with 3 m cable
- Connection cable (optional)
- 1x mounting nut
- 1x mounting bracket
- CSlaser Manual
- Certificate of calibration
