CSmicro LT

The CSmicro LT Pyrometer, an economical yet advanced solution tailored for precise infrared temperature measurements in industrial settings. Equipped with a thermopile detector, this innovative infrared sensor ensures highly accurate non-contact temperature readings across a broad spectrum ranging from 8-14µm. The pyrometers exceptional capability to measure high-emissivity targets, even at low temperatures, makes this IR sensor an invaluable asset in various industrial applications.

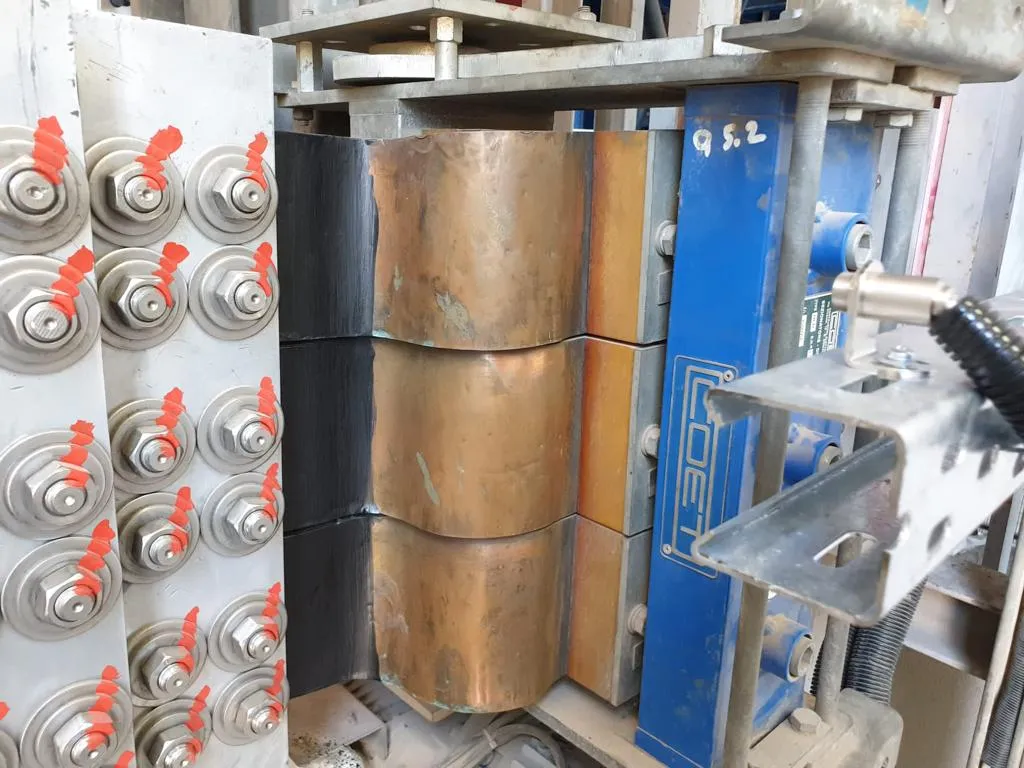

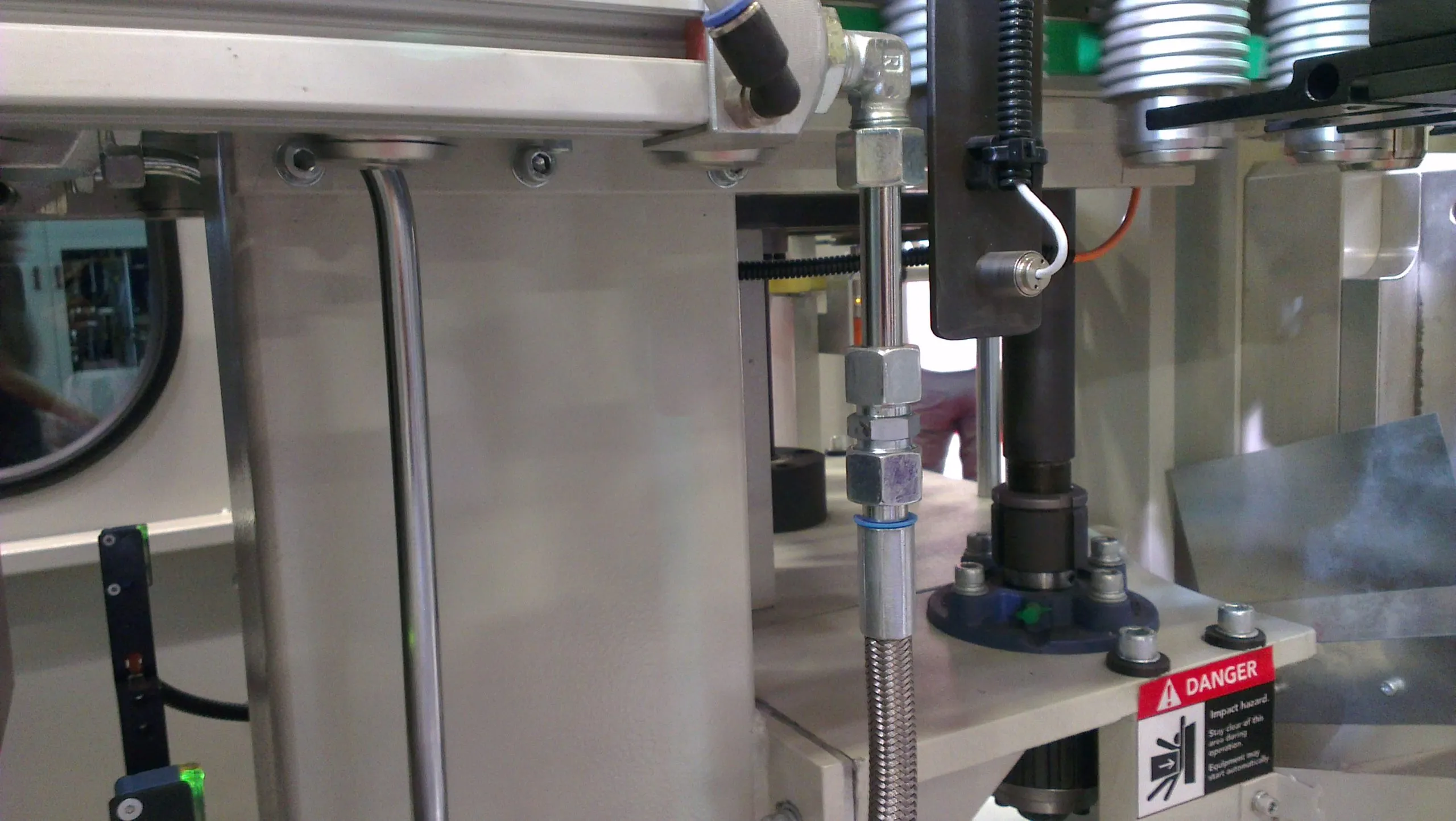

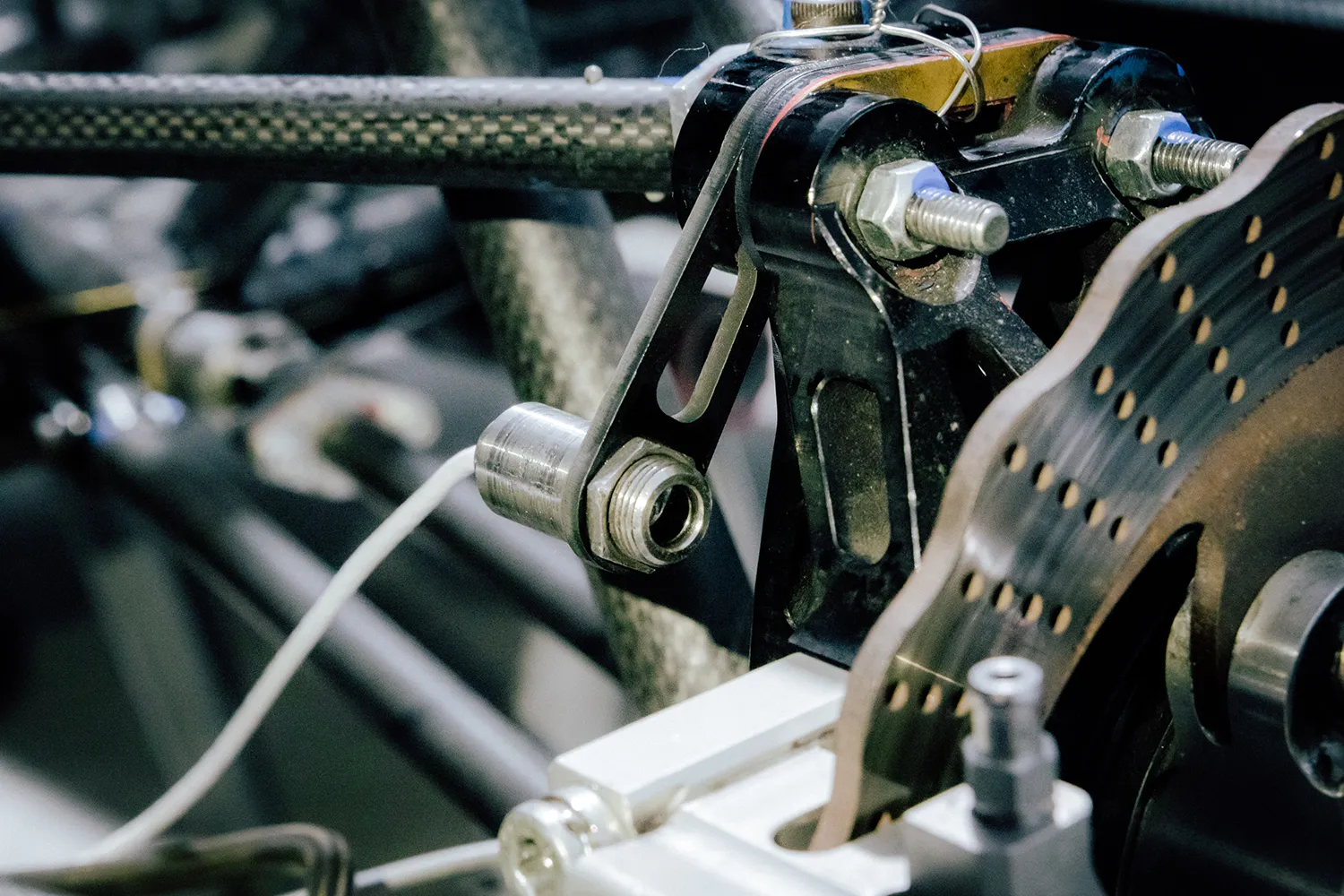

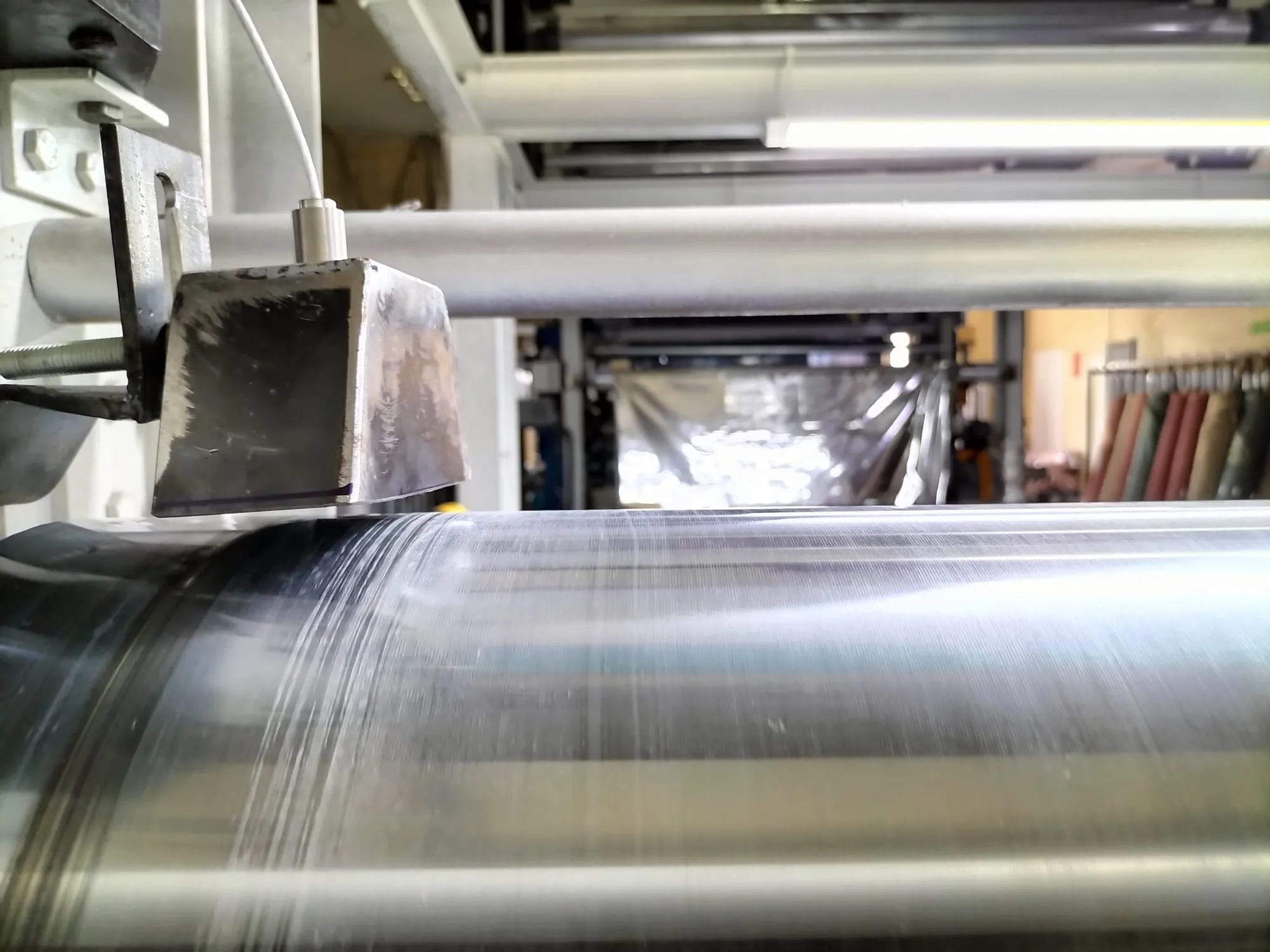

The CSmicro LT, known for its versatility and adaptability, finds applications across a wide range of industries. These include thermoforming, plastic processing, the food industry, heavy industry, quality control, manufacturing, and machine condition monitoring. Serving as a valuable tool for preventive maintenance and as an input for control loop systems, pyrometers like this demonstrate their wide range of uses in infrared temperature measurements.

Offered in multiple versions, the CSmicro LT series boasts variations in optics, distance-to-spot size ratios, maximal head temperature, and output types. These include analog outputs such as 4-20 mA, 0-5 V, or 0-10 V voltage output. Additionally, this pyrometer supports digital alarms and serial communication over RS232, ensuring effortless integration into control systems. For added versatility, the CSmicro LT series with mA output also accommodates two-wire-output operation, where the electrical current in the ground loop line adjusts based on the measured temperature. Various lens options with close-focus or standard-focus optics further enhance its adaptability.

Featuring an impressive distance-to-spot size ratio of up to 15:1, the CSmicro LT guarantees precise temperature measurements even from a distance. With a temperature range spanning from -50 °C to 1030 °C, coupled with its compact size and temperature resistance of the sensing head up to 120 °C, this infrared sensor proves ideal for seamless integration into machinery, particularly in manufacturing environments. Notably, the CSmicro LT sensors boast a rapid response time of just 14 ms.

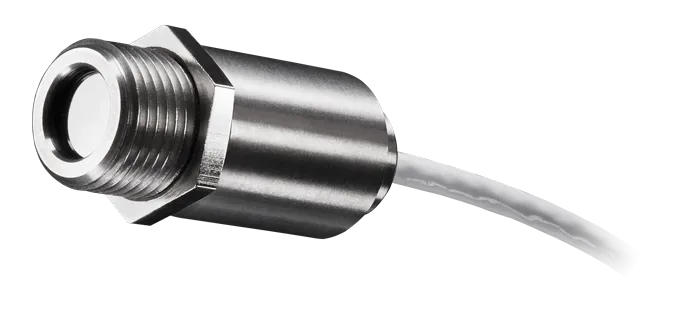

Crafted to endure challenging conditions, the CSmicro LT is engineered to deliver precise temperature measurements even in the harshest environments. Its unique thermal shock-resistant design distinguishes this pyrometer from other sensors, ensuring consistent performance despite ambient temperature changes. The robust stainless steel measuring head, featuring an M12x1 thread, facilitates effortless integration into confined hot spaces, elevating its suitability for a multitude of applications.

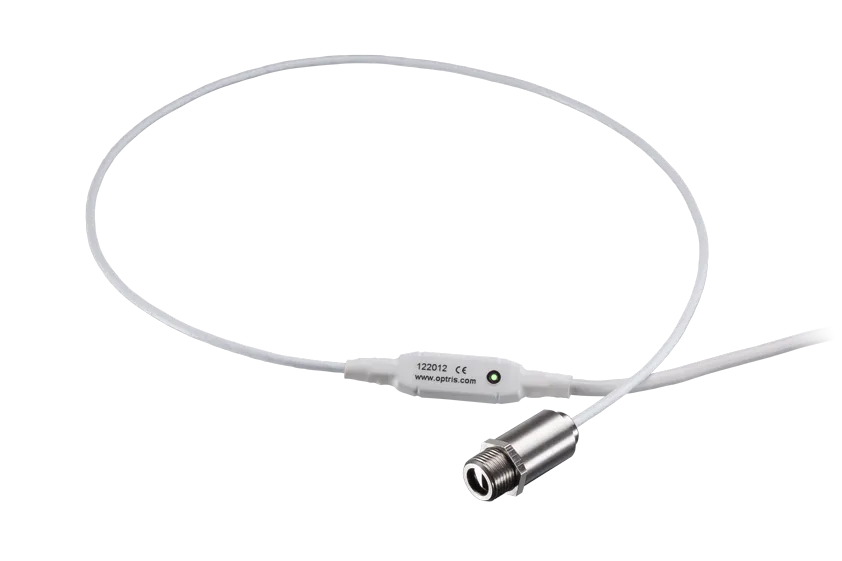

The intelligent LED display of the CSmicro LT serves a multitude of functions, from alarm signaling and target support to self-diagnosis and temperature-code display. With electronic components placed within the cable, the measuring head boasts high-temperature resistance, ensuring reliable performance even in demanding conditions.

Configuration, fine-tuning settings, and the setup of the sensor are supported through the optional USB kit and the Compact Connect software, available for free download. Additionally, the USB kit and software offer convenient recording of temperature measurements over time. For quick commissioning, temperature measurements and changes over time can also be displayed on the Optris IR mobile app, available for free on Google Play.

Enhanced by Optris accessories like air purging, mounting flanges, and close-focus optics, the CSmicro LT pyrometer empowers precise temperature measurements of small spot-size targets from close distances.

These pyrometers are designed and manufactured in Germany, carefully calibrated to government standards such as PTB or NIST. For large-quantity OEM customers, customization options, such as different cable sizes, are available. As with all Optris products, application engineers are on hand to discuss industrial applications and provide after-sales support.

The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities. Compact Connect The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

How can I change the scaling, emissivity, or other settings?

The optris CS kit (ACCSMIAC) and the software CompactConnect must be used to change the pyrometers settings.

Can I set up the CSmicro LT pyrometer for digital communication?

The optional USB programming kit is required for digital communication. Using the terminal block, connect each wire of the USB adapter cable with the same colored wire of the sensor cable. The sensor offers bidirectional and unidirectional digital communication. Bidirectional communication allows for the sending and receiving of data between the sensor and a computer. Unidirectional communication supports a fast burst mode of data in which the sensor only sends data.

Does the CSmicro LT support an RS232 communication?

Yes, for a bidirectional RS232 connection of the sensor, an additional interface board (recommended MAX3381E) is needed. MAX3381E

Does the CSmicro LT support an open collector output?

Yes, an additional open collector output is supported. The open collector output is an additional alarm output on the CSmicro LT. In addition, the simultaneous analog output is an open collector output and can trigger an external relay, for example. In the case of long wires, there might be a voltage drop at the ground wire, and the mV output is distorted. The brown wire can be used as a ground supply, and the thermocouple wire can be used as a ground.

Can I connect the CSmicro LT to a smartphone to adjust the settings?

The CSmicro LT sensor can connect directly to an Android smartphone or tablet. The IR mobile application monitors and analyses infrared temperature measurements on a connected Android smartphone or tablet. The phone powers the CSmicro LT pyrometer.

When can I use the CSmicro LT after powering?

The CSmicro LT has a warm-up time. At a supply voltage (Vcc) ≥ 12 V, the sensor takes about 5 minutes to work in a stable mode. Therefore, the LED will show an alarm state for up to 5 minutes after switching on the unit.

How far can I position the CSmicro LT from the target?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. The object should fill out the optics’ field of view to prevent measuring deviations. Consequently, the spot should always be at least the same size as the object or smaller. The spot size refers to 90% of the radiation energy.

Which changes have to be selected if an external close-focus lens is used?

The optional CF lens allows the measurement of small objects. If the CF lens is used, the transmission has to be set to 0.78. The optional USB kit (including software) must change this value. The assigned transmission (average value) is a characteristic value that may have a certain scattering. If required, the transmission has to be determined experimentally.

What is the function of the green LED at the end of the sensor?

The green LED can be programmed for the following functions: alarming, aiming support, self-diagnostic, and temperature Code indication. The USB adapter cable and software are necessary for the configuration. The factory default setting for the LED is self-diagnostic.

What LED at the end of the sensor is always on?

In the self-diagnostic mode, if the LED is always on or always on with short breaks, the sensor indicates that it is not stable due to ambient temperature changes or is in an error mode.

What kind of power supply is required?

Use a separate, stabilized power supply with an output voltage of 5-30 V DC. The power supply’s residual ripple should be a maximum of 200 mV. Use shielded cables only for all power and data lines.

Do I need to ground the shielding of the CSmicro?

The shield (black) on the CSmicro is not connected to GND (brown). Connecting the shield to the ground or GND (whichever works best) is necessary. Please review the manual to review the drawings.

What is / shall be the output impedance for the CSmicro with mA and mV output?

The CSmicro’s output impedance with an mV output must be ≥ 10 kΩ. The maximum loop impedance for the CSmicro with an mA output is 1000 Ω.

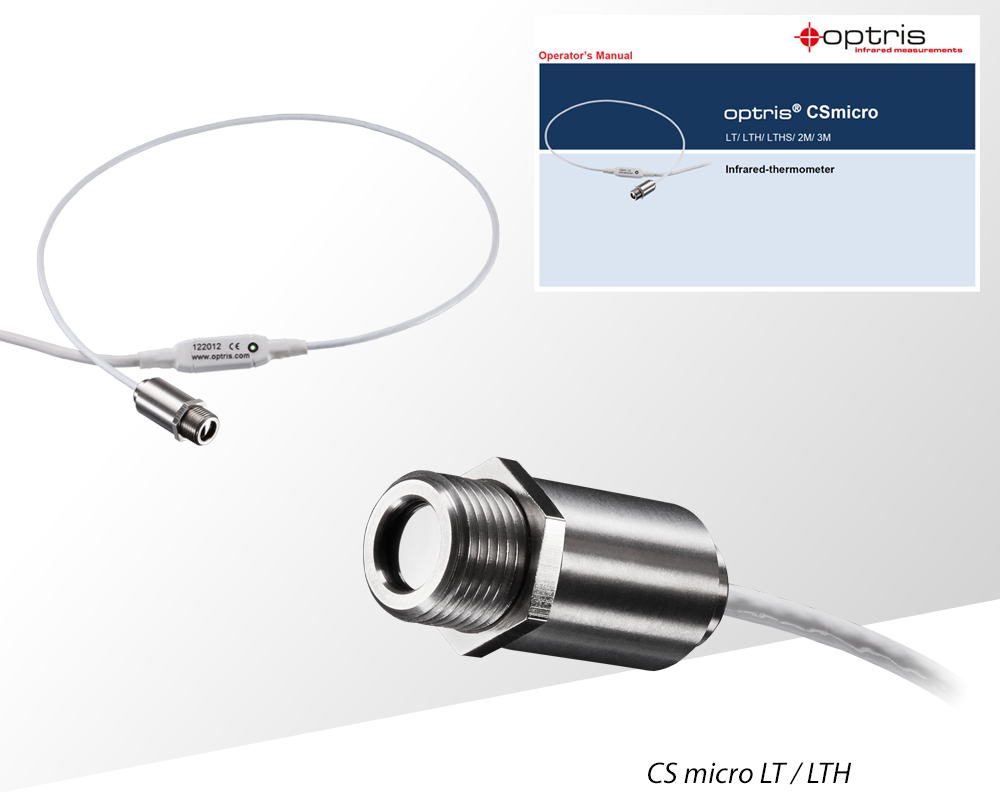

• CSmicro LT with 1m cable (500 mm between head and electronics)
• 1x mounting nut
• CSmicro Manual
