CSmicro LTH

The CSmicro LTH pyrometer is meticulously designed for precise temperature measurement in industrial settings, boasting unrivaled accuracy. Utilizing a specialized thermopile detector, this cutting-edge device is adept at detecting temperatures within the 8-14µm spectrum, specifically tailored for high-emissivity targets spanning from -50 °C to 1030 °C.

Setting a new standard in performance, the CSmicro LTH distinguishes itself with a higher distance-to-spot size ratio of up to 22:1, ensuring precise measurements even at a distance. Its remarkable design extends the pyrometers operating temperature range to 180 °C without the need for cooling, guaranteeing reliability in the most demanding conditions.

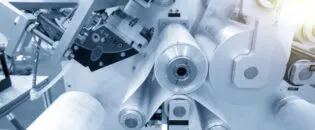

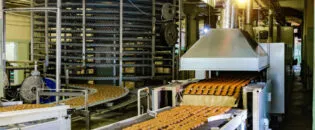

Crafted with robustness in mind, the CSmicro LTH boasts a compact build and exceptional thermal shock resistance, ensuring longevity and consistent performance in harsh industrial settings. Its versatility makes this infrared pyrometer indispensable across various sectors, including thermoforming, plastic processing, food production, heavy industry, quality control, manufacturing, and machine condition monitoring.

At the forefront of preventive maintenance, the CSmicro LTH serves as a vital thermal sensor, providing crucial insights for optimizing processes and ensuring equipment reliability. Trust in the CSmicro LTH to deliver unparalleled precision and reliability, empowering your operations to excel in efficiency and performance.

The CSmicro LTH series is a versatile lineup, offering a range of options to suit diverse measurement requirements. With multiple versions available, users can select from various optics, distance-to-spot size ratios, and output types to tailor the pyrometer to their specific needs.

This series supports analog outputs such as 4-20 mA or 0/5-10V voltage output, as well as digital alarms and serial communication via RS232, facilitating seamless integration into existing control systems. For added convenience, versions with mA output also feature support for two-wire-output operation, dynamically adjusting the electrical current in the ground loop line based on the measured temperature.

Additionally, the availability of different lens options, including close-focus or standard-focus optics, enhances the versatility of the CSmicro LTH series, making the infrared sensor adaptable to a wide range of applications.

Beyond its precision in temperature measurement, the CSmicro LTH stands as a stalwart instrument crafted to endure the rigors of challenging environments. Engineered with a distinctive thermal shock-resistant design, the infrared pyrometer maintains unwavering accuracy amidst volatile ambient temperature shifts, ensuring reliable performance in adverse conditions.

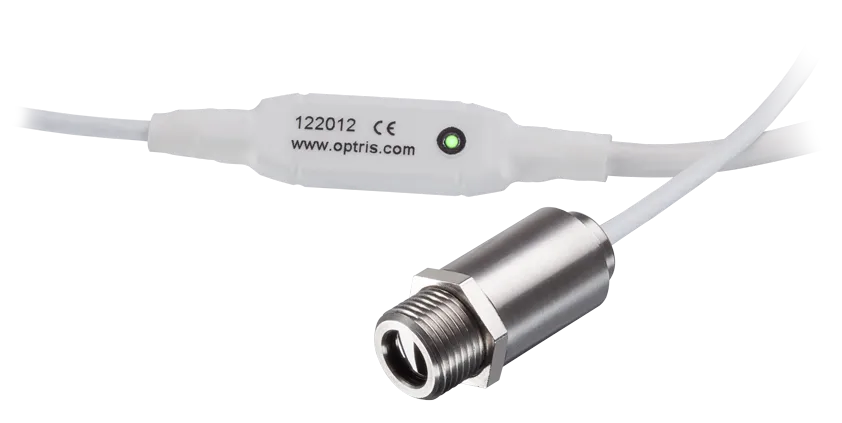

Crafted from robust stainless steel, the measuring head of the CSmicro LTH features an M12x1 thread, facilitating effortless installation even in cramped, high-temperature environments. This adaptability enhances its versatility and fortifies its durability, making the IR sensor a dependable asset across various industrial settings.

With its intelligent LED display, the CSmicro LTH offers a suite of functions designed to enhance usability and efficiency. From alarm signaling to target support, self-diagnosis, and temperature-code display, this pyrometer provides a comprehensive range of features to streamline temperature monitoring processes.

Additionally, electronic components strategically placed within the cable contribute to the measuring head’s resilience to high temperatures, further ensuring reliable performance in demanding industrial environments.

The CSmicro LTH pyrometers capabilities can be further enhanced with optional accessories tailored to specific needs. Accessories such as air purging systems, mounting flanges, and close-focus optics enable expanded functionality, enabling precise temperature measurements of small spot-size targets from close distances. These optional add-ons provide versatility and customization, allowing users to optimize the CSmicro LTH pyrometer for their unique applications.
These pyrometers are designed and manufactured in Germany, carefully calibrated to government standards such as PTB or NIST. For large-quantity OEM customers, customization options, such as different cable sizes, are available. As with all Optris products, application engineers are on hand to discuss industrial applications and provide after-sales support.

The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities. Compact Connect The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

What is the main difference between the CSmicro LT and the CSmicroLTH?

In contrast to the CSmicro LT, the LTH variant utilizes a different special thermopile, providing a superior distance-to-spot size ratio of up to 22:1 and an extended operating temperature of up to 180 °C without requiring cooling. The Optris CSmicro LTH is frequently utilized in scenarios where the sensing head must endure high ambient temperatures or when it needs to be positioned far from the object.

How can I change the scaling, emissivity, or other settings?

The optris CS kit (ACCSMIAC) and the software CompactConnect must be used to change the pyrometers settings.

Can I set up the CSmicro LT pyrometer for digital communication?

The optional USB programming kit is required for digital communication. Using the terminal block, connect each wire of the USB adapter cable with the same colored wire of the sensor cable. The sensor offers bidirectional and unidirectional digital communication. Bidirectional communication allows for the sending and receiving of data between the sensor and a computer. Unidirectional communication supports a fast burst mode of data in which the sensor only sends data.

Does the CSmicro LT support an RS232 communication?

Yes, for a bidirectional RS232 connection of the sensor, an additional interface board (recommended MAX3381E) is needed. MAX3381E

Does the CSmicro LT support an open collector output?

Yes, an additional open collector output is supported. The open collector output is an additional alarm output on the CSmicro LT. In addition, the simultaneous analog output is an open collector output and can trigger an external relay, for example. In the case of long wires, there might be a voltage drop at the ground wire, and the mV output is distorted. The brown wire can be used as a ground supply, and the thermocouple wire can be used as a ground.

Can I connect the CSmicro LT to a smartphone to adjust the settings?

The CSmicro LT sensor can connect directly to an Android smartphone or tablet. The IR mobile application monitors and analyses infrared temperature measurements on a connected Android smartphone or tablet. The phone powers the CSmicro LT pyrometer.

When can I use the CSmicro LT after powering?

The CSmicro LT has a warm-up time. At a supply voltage (Vcc) ≥ 12 V, the sensor takes about 5 minutes to work in a stable mode. Therefore, the LED will show an alarm state for up to 5 minutes after switching on the unit.

How far can I position the CSmicro LT from the target?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. The object should fill out the optics’ field of view to prevent measuring deviations. Consequently, the spot should always be at least the same size as the object or smaller. The spot size refers to 90% of the radiation energy.

Which changes have to be selected if an external close-focus lens is used?

The optional CF lens allows the measurement of small objects. If the CF lens is used, the transmission has to be set to 0.78. The optional USB kit (including software) must change this value. The assigned transmission (average value) is a characteristic value that may have a certain scattering. If required, the transmission has to be determined experimentally.

What is the function of the green LED at the end of the sensor?

The green LED can be programmed for the following functions: alarming, aiming support, self-diagnostic, and temperature Code indication. The USB adapter cable and software are necessary for the configuration. The factory default setting for the LED is self-diagnostic.

What LED at the end of the sensor is always on?

In the self-diagnostic mode, if the LED is always on or always on with short breaks, the sensor indicates that it is unstable due to ambient temperature changes or is in an error mode.

What kind of power supply is required?

Use a separate, stabilized power supply with an output voltage of 5-30 V DC. The power supply’s residual ripple should be a maximum of 200 mV. Use shielded cables only for all power and data lines.

Do I need to ground the shielding of the CSmicro?

The shield (black) on the CSmicro is not connected to GND (brown). Connecting the shield to the ground or GND (whichever works best) is necessary. Please review the manual to review the drawings.

What is / shall be the output impedance for the CSmicro with mA and mV output?

The CSmicro’s output impedance with an mV output must be ≥ 10 kΩ. The maximum loop impedance for the CSmicro with an mA output is 1000 Ω.

• CSmicro LTH with 1m cable (500 mm between head and electronics)
• 1x mounting nut
• CSmicro Manual
