Profinet Interface-Kit

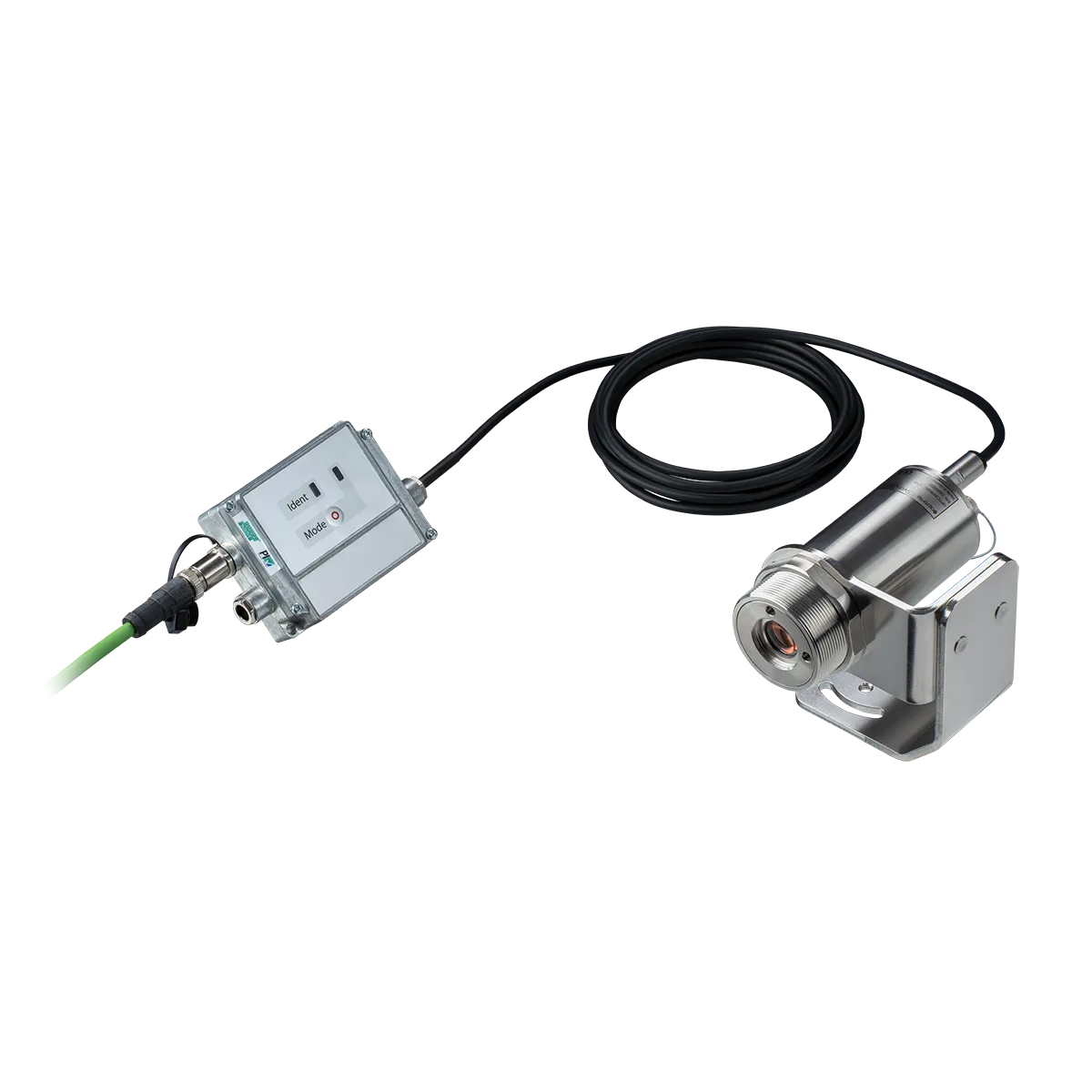

The Profinet Interface-Kit for Optris Xi series infrared cameras and CSvision pyrometers integrates Optris sensors with Siemens PLC systems.
- Profinet interface
- Profinet Association approved
- Full documentation with gds-files for Siemens PLCs
280,00€
Specification
General Specifications
Environmental rating: IP65 (Nema-4)
Operating temperature: 0 °C … 85 °C
Relative humidity: 10 – 95 %, non-condensing
Vibration: IEC 60068-2-6 (sinusoidal form), IEC 60068-2-64 (broadband noise)
Shock: IEC 60068-2-27 (25 G and 50 G)
Housing material: Steel
Weight: 440 g
Dimensions (H x W x D): 122 mm x 70 mm x 30 mm
Interface Board Characteristics
Port Protocol: Profinet
Transfer speed: up to 100Mbit/s full-duplex
Communication Port and Connection Type:
1x Ethernet 10/100 Base-T (RJ45) or 4-pin, industrial M12, D-coded connector
1x RS-422/485 (6-pin terminal)
Electrical Parameters
Power supply: 5 … 30 VDC
Power consumption: < 0.7 W
Downloads
FAQs
Do I need additional cables?
The connection Xi camera to interface box must be done via a I/O/ RS485 cable (ACXIIOCB1). The connection CSvision to interface box must be done via the sensor cable (ACCSVICB3C). Other cable lengths can be ordered separately.
How do I reset the interface?
The interface must be switched off. Press the SW button on the board and switch the box on in the meantime. The LED flashes red. Release the button the fifth time it flashes. The LED flashes green 5 times as confirmation.
Can I connect multiple devices to the same network?
Yes, but each of the devices must get an own IP address but they must be in the same subnet.
Which connector is used?
The industrial interface has a 4-pin, M12, D-coded connector.
Where are the network settings stored?
The network settings are stored on the board, which communicates with the Optris devices via the serial interface. The network settings remain on the board when the Optris devices are exchanged.
How to distinguish between network interfaces?
All Network interfaces for Optris Xi ETH series and CSvision have the same hardware, to distinguish between different industrial interfaces the different times flashing of the I4 LED must be considered after powering the interface.
1 x flashing means Ethernet TCP/IP / Modbus TCP
2 x flashing means EtherNet/IP
3 x flashing means Profinet
Scope of Supply

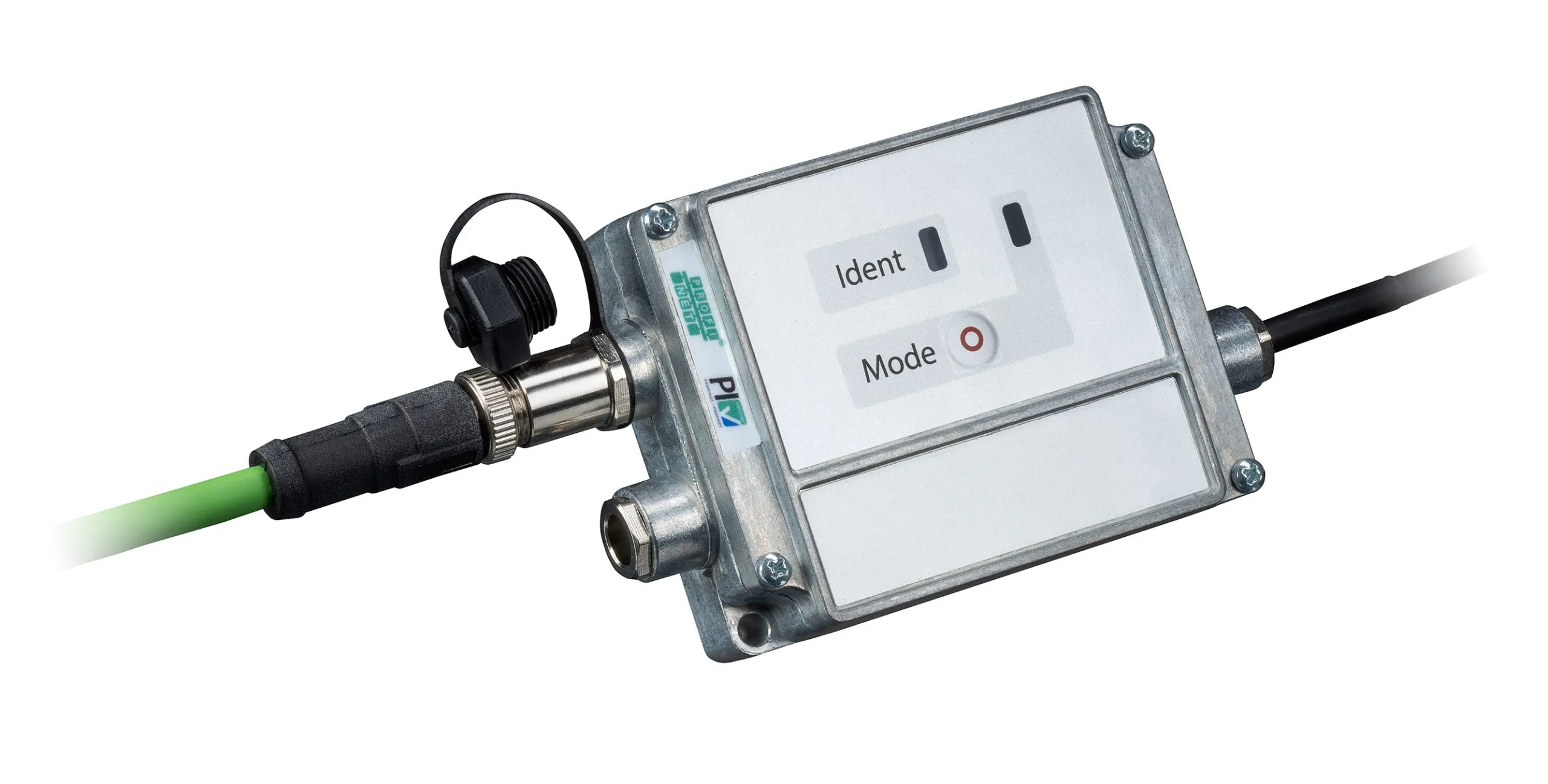

- 1x interface box (IP65) incl. M12 connector, 25 cm cable
- 1x M12 4-pin connector
- 1x extension cable (20cm) with RJ45 socket and M12 4-pin connector
- 1x USB stick including software and manual
- 1x quick reference
